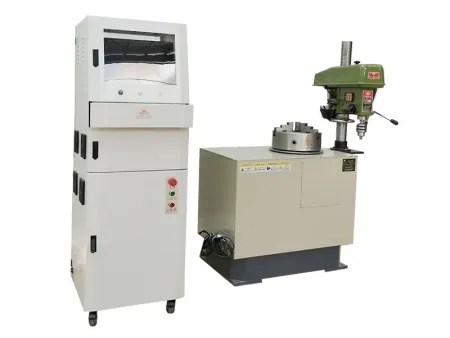

Vertical Dynamic Balancing Machine
Universal vertical balancer for single-plane balancing of rotating parts
Applications
Widely used in the production of components such as fan blades, ventilation fan blades, automotive flywheels, clutches, brake discs, brake drums, and hydraulic couplings.
Ensuring proper dynamic balance is important for many rotating components, and this vertical dynamic balancing machine excels at single-plane balancing for disc-shaped parts. With a flexible setup, it accommodates a variety of workpieces by simply switching the mounting fixtures. Real-time data processing is powered by an industrial control computer, providing immediate feedback on imbalance values, phase angles, and rotational speeds. The dynamic balancing system is integrated into an industrial control cabinet, working seamlessly with the mechanical components. For added versatility, the vertical balancer can be customized with universal or specialized fixtures, as well as optional accessories like side-drilling machines, vertical drilling machines, and dust collection systems to meet specific balancing needs.
Technical Specifications
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) | Speed control method |
| 0.1-5 | Ø500 | 250-1500 | ≤3 | ≥90 | 1.1 | Variable frequency speed control | |
| 0.5-16 | Ø500 | 250-1500 | ≤3 | ≥90 | 1.1 | Variable frequency speed control | |
| 2-30 | Ø600 | 250-1500 | ≤3 | ≥90 | 1.5 | Variable frequency speed control | |
| 3-50 | Ø800 | 250-1500 | ≤3 | ≥90 | 1.5 | Variable frequency speed control | |
| 5-100 | Ø800 | 250-1500 | ≤3 | ≥90 | 4 | Variable frequency speed control | |
| 10-200 | Ø800 | 250-1500 | ≤3 | ≥90 | 4 | Variable frequency speed control |
