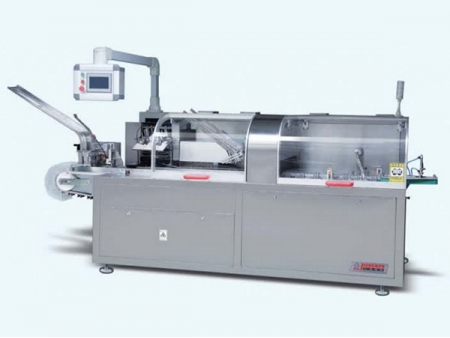

Automatic Horizontal Cartoning Machine

Automatic Horizontal Cartoning Machine
Request a Quote

Application
Automatic horizontal cartoning machines are used to automatically carton a variety of solid products in a number of industries, including medical and pharmaceutical packaging, cosmetic packaging, food production, and more.

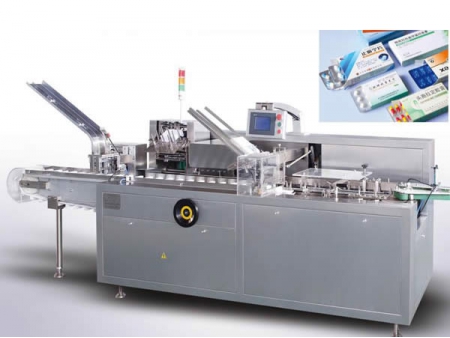

Details

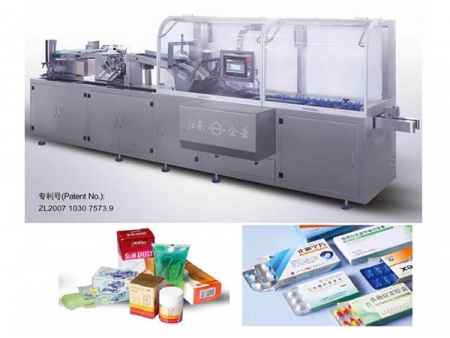

Finished products
Parameter
Size of the carton (length×width×height) (75~150) × (40~90) × (12~45) mm
Quality requirement
250~350g/㎡
Size of instruction book
(length×width) (100~250) × (125~160)
Quality requirement 55 ~65 g/㎡
Capacity 100~120 (according with the weight of products) pcs/min
Power 5KW
Power supply 380V 50Hz
Compressed air pressure ≥0.8 MPa
Air consumption ≥0.1 m3/h
Vacuum pressure -0.09 MPa
CFM of vacuum pump 63m3/h
Overall dimension (length × width × height) 4000×1500×1862mm
Weight About 2500kg
Features
  • The automatic horizontal cartoning machine is equipped with a servo motor, which features an outstanding operation and highly precise position accuracy. The motor can be matched to a conveyor belt, which is used to convey finished products with no need for any lubricant oil.
  • The carton unfolding section of the machine uses a gear transmission and planetary gear, both of which feature a variety of functions. The motor continuously drives the belt and driving wheels, and is controlled using a software program. Our cartoning equipment is also suitable for carton adhesion via vacuum, random unfolding, and placing cartons in the right position.
Related Manufacturies
Leave Message

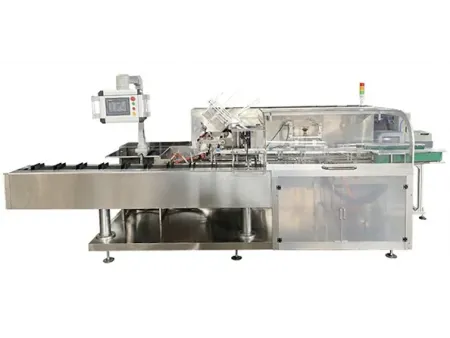

Similar Manufacturies and Parts
