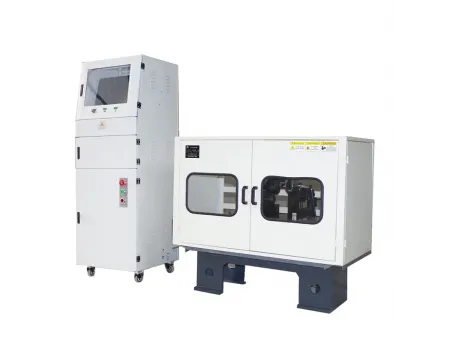

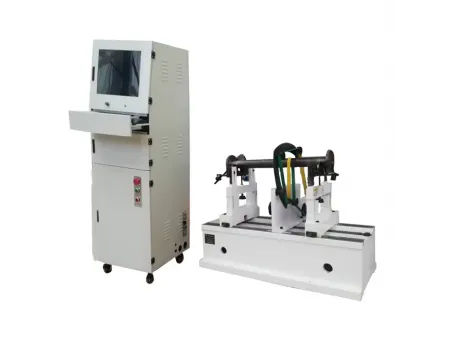

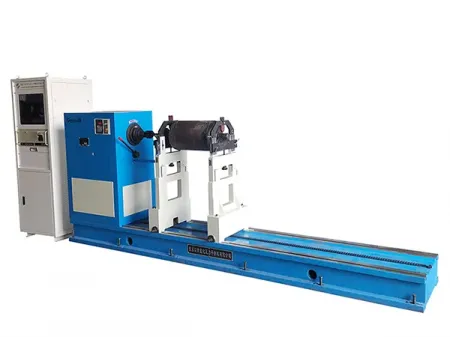

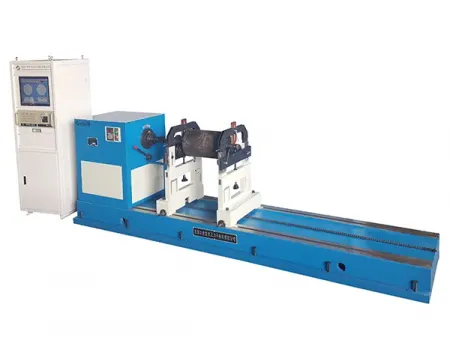

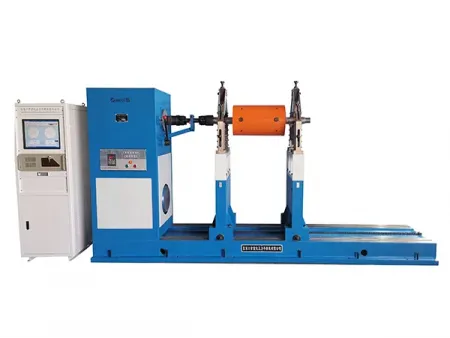

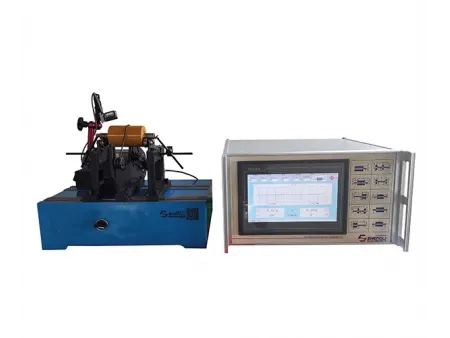

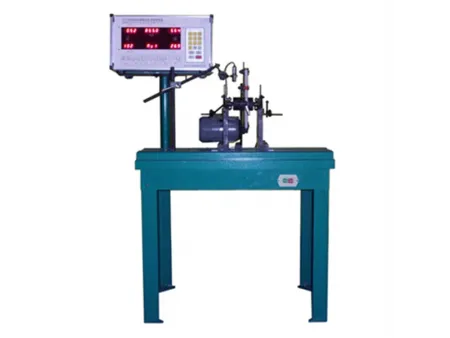

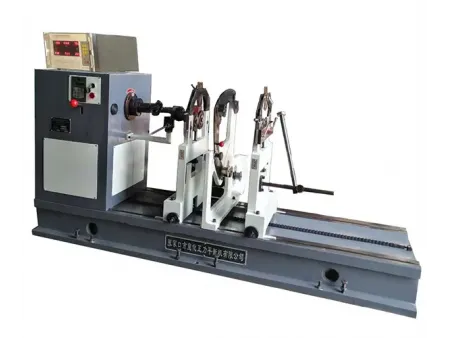

Horizontal Hard-Bearing Balancing Machine
Standards
- ISO 19499:2007
Mechanical Vibration — Balancing — Guidance on the Use and Application of Balancing Standards - ISO 1940-1:2003
Mechanical Vibration — Balance Quality Requirements of Rigid Rotors — Part 1: Determination of Permissible Residual Unbalance
Applications
Ideal for balancing shafts, rollers, and rotors in electric motors, fans, diesel engines, and automotive components, ensuring smoother operation and reducing wear and tear.
Balancing roll-shaped and disk-shaped rotors with high precision is essential in industries that require smooth operation and long-lasting performance. This dynamic balancing machine uses roller support and flat belt driving to ensure minimal interference during the balancing process, which results in highly accurate measurements. With real-time data processing, operators can monitor imbalance values, phase angles, and rotational speed directly on the system interface. This type of testing machine allows for single-plane, dual-plane, and multi-plane balance measurements, making it versatile for different rotor types, including extended center-of-gravity designs. The software offers an intuitive calibration function for both standard rotors and custom workpieces, overcoming the calibration challenges often found in other hard-bearing balancing systems. It’s a reliable solution for manufacturers needing precise, repeatable results across various industries.
Technical Specifications
| Model | Weight of workpiece (kg) | Diameter of workpiece (mm) | Distance between two supports (mm) | Shaft diameter range (mm) | Diameter range of belt drive (mm) | Balancing speed (r/min) | Min. achievable residual unbalance (gmm/kg) | Unbalance reduction ratio (%) | Motor power (kW) |
| 0.1-3 | Ø350 | 30-450 | Ø3-22 | ≤Ø150 | 400-1500 | ≤0.5 | ≥90 | 0.1 | |
| 0.1-5 | Ø400 | 50-600 | Ø3-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.1 | |
| 1-10 | Ø500 | 30-600 | Ø5-60 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 | |
| 0.3-16 | Ø500 | 60-600 | Ø5-40 | Ø15-150 | 400-1500 | ≤0.5 | ≥90 | 0.2 | |
| 1-50 | Ø900 | 80-800 | Ø8-70 | Ø18-250 | 300-1500 | ≤0.5 | ≥90 | 0.75 | |
| 2-100 | Ø900 | 80-1000 | Ø10-140 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 | |
| 2-160 | Ø950 | 100-1400 | Ø10-180 | Ø30-300 | 300-1500 | ≤0.5 | ≥90 | 1.5 | |
| 5-300 | Ø1200 | 150-1500 | Ø20-180 | Ø30-450 | 300-1500 | ≤0.5 | ≥90 | 4 | |
| 10-500 | Ø1500 | 150-1500 | Ø20-240 | Ø40-500 | 300-1500 | ≤0.5 | ≥90 | 4 | |
| 10-1000 | Ø1500 | 150-2600 | Ø20-240 | Ø40-650 | 180-1450 | ≤0.5 | ≥90 | 5.5 | |
| 30-1600 | Ø1800 | 150-2600 | Ø20-240 | Ø40-800 | 180-1450 | ≤0.5 | ≥90 | 7.5 | |
| 100-3000 | Ø2000 | 150-2600 | Ø15-300 | Ø40-900 | 180-1450 | ≤0.5 | ≥90 | 11 |
