Carbon Steel Doctor Blades
Blade Edge Shapes

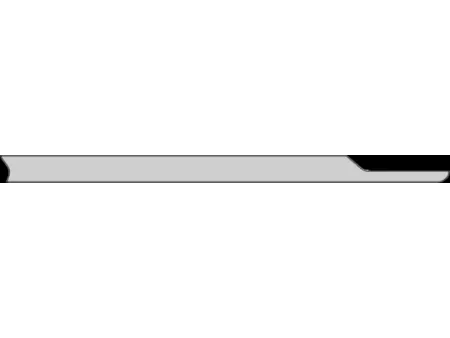

  • Short Lamella Blade Edge

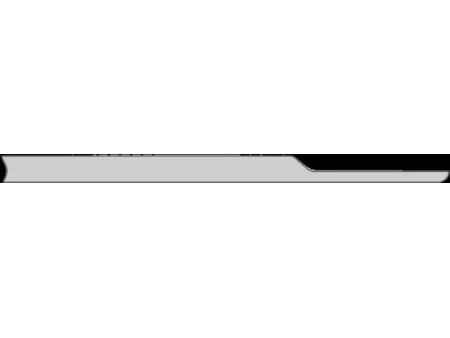

  • Long Lamella Blade Edge

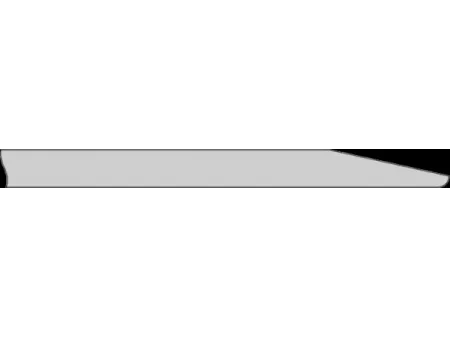

  • Short Bevel Blade Edge

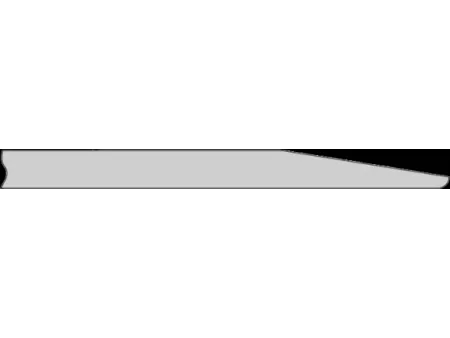

  • Long Bevel Blade Edge

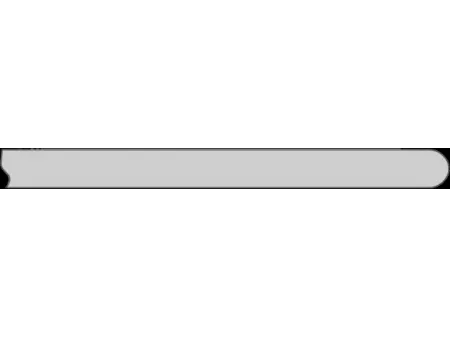

  • Round Blade Edge

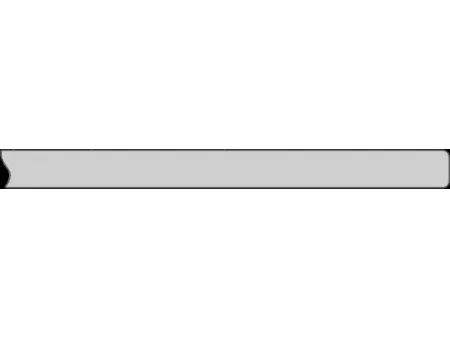

  • Square Blade Edge
Specifications
Width Range: 8mm-60mm
Width Tolerance: ±0.1mm
Thickness Range: 0.152mm-0.3mm
Thickness Tolerance: ±0.005mm
Hardness: 550-580HV
Tensile Strength: 1850-2000Pa
Straightness: ≤0.5mm/3000mm
Dimensions
  • 8mm×0.15mm×100m
  • 9mm×0.15mm×100m
  • 10mm×0.102mm×200m
  • 10mm×0.15mm×100m
  • 20mm×0.15mm×100m
  • 20mm×0.2mm×100m
  • 30mm×0.15mm×100m
  • 30mm×0.2mm×100m
  • 35mm×0.15mm×100m
  • 35mm×0.2mm×100m
  • 40mm×0.15mm×100m
  • 40mm×0.2mm×100m
  • 40mm×0.3mm×100m
  • 50mm×0.15mm×100m
  • 50mm×0.2mm×100m
  • 60mm×0.15mm×100m
  • 60mm×0.2mm×100m
(The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.)
Features
Enhanced durability compared to standard carbon steel blades, reducing blade scoring, ink smearing, and inconsistent ink coverage during printing.
These doctor blades have polished edges that adapt quickly to the printing plate, minimizing break-in time and ensuring smooth ink transfer.
Consistent performance in both short and long print runs, maintaining print stability throughout extended use.
Optimized for medium-speed printing equipment, handling speeds up to 150m/min. Commonly used for wallpaper, wood grain paper, textile patterns, and decorative printing, where precise ink control improves efficiency and print consistency.
Application Processes

Gravure printing, Flexo printing, Transfer printing

Ink Types

Solvent-based ink, Low-corrosion ink, Inks with low pH value

These carbon steel doctor blades are designed for medium-speed printing presses, providing high wear resistance and stable performance. Made from C100S carbon steel, they support speeds of up to 150m/min, ensuring efficient ink removal and consistent print quality. Their versatility makes them a reliable choice for gravure and flexographic printing across different applications.
