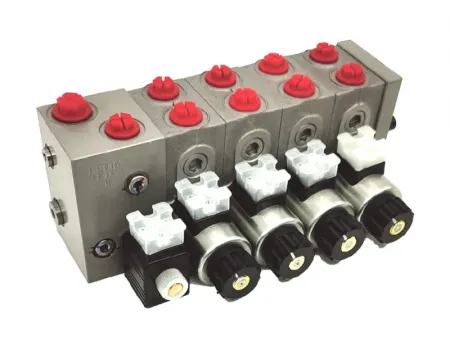

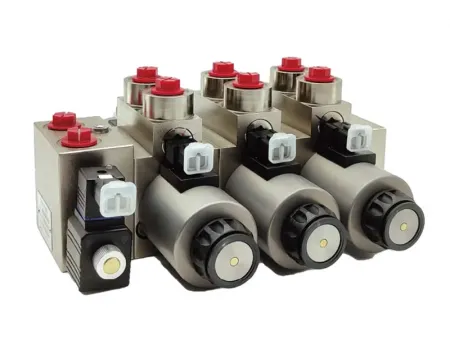

DL20CD Sectional Directional Control Valve
Request a Quote
- Sectional directional control valve is available in multiple sections.
- Wide choice of spool functions.
- Control valve has two inlets, thus improving performance.
- Valve inlet is connected to a solenoid valve to ensure that operating pressure is not exceeded.
- Perfect piping layout design to reduce pressure loss.
- Sectional control valve is equipped with safety valve, overload valve, charge valve and check valve, suitable for a wide range of applications, easy maintenance.
- Loop type: parallel circuit, series circuit.
Applications
- Excavator/loader
- Forklift
- Agricultural tractor auxiliary function
- Drilling rig
- Hoisting machinery
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 | |
| Rated flow (L/min) | 160 (maximum flow: 200 L/min) | |
| Pressure range of main overflow valve (MPa) | 10-25 | |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 | |
| Solenoid valve working volatage (electric current) | DC24V (electric current: 0.7A) | |
| Actuating force (N) | 170 | |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 | |
| Fluid temperature range (℃) | －20-100 | |
| Viscosity range (mm2/s) | 10-380 | |
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
