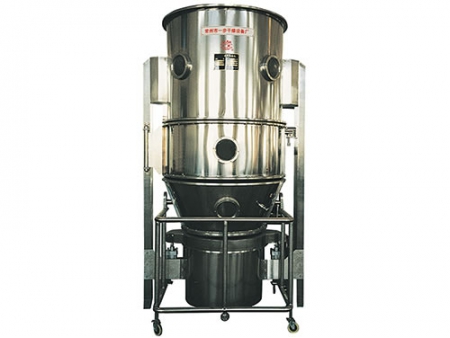

FG Series Fluid Bed Dryer
Request a Quote
Applications
The series fluid bed dryer is primarily utilized for drying powders or granules in pharmaceutical, food, chemical and other industrial applications.
Specification | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
items | unit | ||||||||||
Vessel | Diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
Volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
Production capacity | Min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
Max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
Steam consumption | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
Amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
Temperature | ℃ | Adjustable from room temperature to 120℃ | |||||||||
Collection rate | % | >99 | |||||||||
Operation time | Min | 15-30 (depends on material) | |||||||||
Water Content of final product | % | ~0.2 (depends on material) | |||||||||
Noise level | DB | ≤75 | |||||||||
Height | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 |
Features
1. Fluidization bed achieves incredibly fast heat transmission.
2. Sealed negative pressure operation prevents the release of dust.
3. Because of the anti-static material as filter, it is completely safe to operate.
4. The equipment has no blind corners for easy cleaning and maintenance.
5. Fully conforms to GMP requirements.
