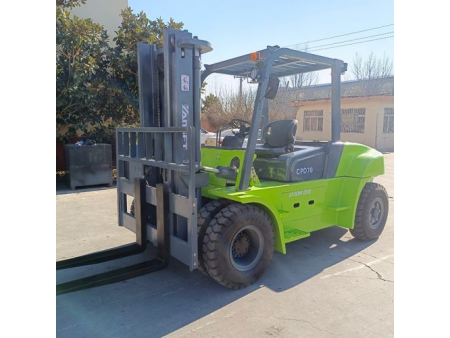

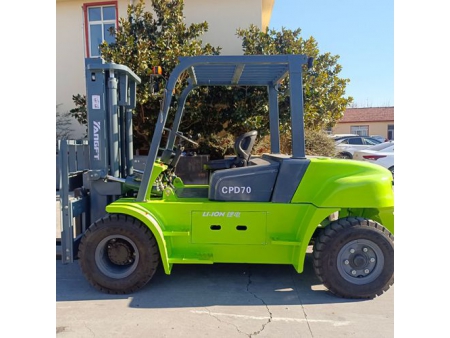

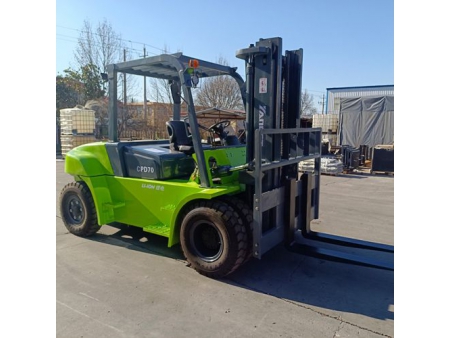

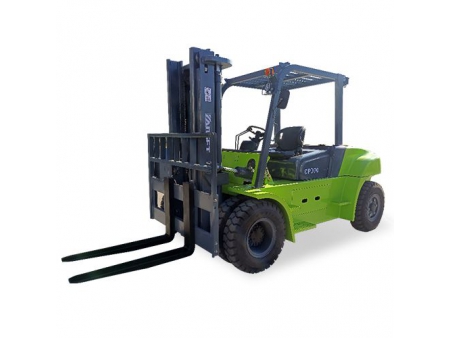

K Series

The heavy-duty electric forklifts have the load capacity of 5 to 10 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters. With a simplified brake system, this equipment reduces wear among components and extends its service life.

The specially designed drivetrain system allows transmission oil to lubricate the gears, reducing wear on drive components and facilitating efficient energy transfer, while also simplifying routine checks and maintenance.

  • 5000-10000 kg
  • 3000 mm
  • 14-16 km/h
  • 3250-4080 mm
Features
  • The electric forklift adopts an integrated transmission system and the gearbox oil can lubricate gears, which greatly reduces maintenance costs.
  • The integrated design increases the forklift strength by 20%, which ensures drivers’ safety and enables the forklift to work in uneven and winding paths and carry out demanding and high-intensity material handling tasks.
  • The streamlined braking system minimizes wear on drive components, extending the lifespan of the brake pedal and mechanical parts.
  • Ergonomically designed to minimize operator fatigue during long hours of work, this forklift truck increases operational space and enhances overall efficiency.
Applications

Heavy material handling in warehouses, logistics centers and distribution centers.

Forklift Truck Components

Battery Electric Motor (Optional)

The battery and electric motor feature intelligent control for safe and stable operation, ensuring low noise levels while being eco-friendly and energy-efficient, with robust durability for long-lasting performance.

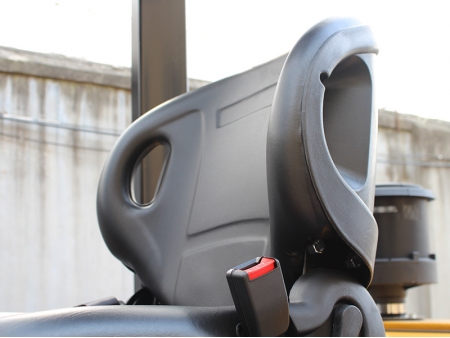

Seat (Optional)

Equipped with an OPS system and ergonomic design, it offers multiple adjustable features that effectively reduce operator fatigue and enhance comfort during extended use.

Mast (Optional)

Features 2-3 stage standard masts and multi-stage full free lift masts, offering high customization to meet various operational requirements.

Load-Backrest

Designed to prevent cargo from slipping, this feature enhances safety throughout the operation.

Control System (Optional)

The integrated dashboard, paired with ergonomically designed steering, throttle, and brake controls, ensures safe, convenient, and comfortable operation.

Overhead Guard

Engineered to enhance driver safety, also offers customizable options for increased width and height to meet specific operational needs.

Control Valve

This control valve is designed with care to ensure straightforward operation and offers customization options to meet diverse requirements.

Technical Specifications
Model CPD50L CPD60 CPD70 CPD80 CPD100
Characteristics Power Lithium battery
Capacity kg 5000 6000 7000 8000 10000
Load Centre mm 600 600 600 600 600
Lift Height mm 3000 3000 3000 3000 3000
Min. Turning Radius Inner side mm 3250 3250 3370 3700 4080
Performance Travel Speed Load/no load km/h 14/16 14/16 14/16 14/16 14/16
Lift Speed Load/no load mm/s 360/400 360/400 340/380 280/300 280/300
Dimensions Total Length Without fork mm 3560 3560 3600 3830 4260
Total Width mm 1995 1995 1995 2100 2240
Max. Lifting Height mm 3750 3750 3750 4050 4320
Mast Height mm 2500 2500 2500 2870 2840
Chassis Tyre Front 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-20-14PR 9.00-20-16PR
Rear 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR 8.25-20-14PR 9.00-20-16PR
Wheelbase mm 2250 2250 2250 2500 2800
Service Weight No load kg 7800 8500 9200 10200 12000
Power Battery Electric tension V 80
Capacity Ah 700
Motor Drive motor kW 25
Hydraulic motor kW 2*21 2*26
Which is better, lead-acid batteries or lithium batteries?
It’s better to use lithium batteries since they have longer service life, higher charging speed, with zero emissions and low maintenance costs.
