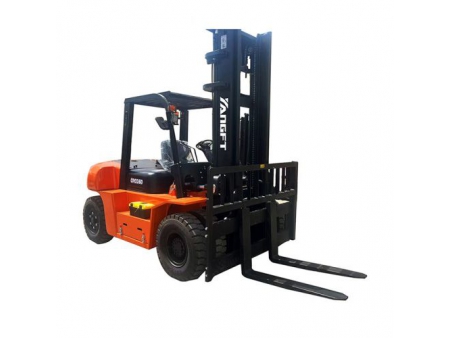

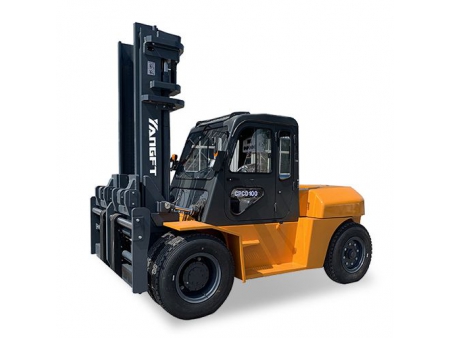

Diesel Forklift 5-10 Tonne

Diesel Forklift 5-10 Tonne
Diesel Forklift 5-10 Tonne
Diesel Forklift 5-10 Tonne
Diesel Forklift 5-10 Tonne
Request a Quote

K Series

The forklifts feature a load capacity of 5-10 tons. The standard lifting height is 3 meters and the maximum customized lifting height is 6 meters. The intake and exhaust system and the cooling system have been optimized to improve service life of engines and guarantee reliability of forklifts. Optional China-made and imported engines are provided, such as Isuzu and Mitsubishi engines imported from Japan.

  • 5000-10000 kg
  • 3000 mm
  • 20-24 km/h
  • 3240-3650 mm
Features
  • The design of short front overhang reduces the load of the front axle under fully loaded conditions, which greatly increases the service life of front tyres and the drive axle.
  • This type of diesel forklifts delivers high comprehensive performance and comfortable driving experience thanks to its unique design.
Applications

Material handling operation in factories, workshops and other work environments.

Forklift Truck Components

Engine (Optional)

Optional engines from ISUZU, Mitsubishi, Kubota, Yanmar, and Euro3/5 bring advanced technology, combining fuel efficiency with eco-friendly performance. These engines are designed for reliability and durability, with easy maintenance to keep operations running smoothly.

Seat (Optional)

Equipped with an OPS system and ergonomic adjustments, this seat offers multiple settings to enhance operator comfort and reduce fatigue during long shifts.

Mast (Optional)

Offers both 2-3 stage standard masts and multi-stage full free lift masts, providing high customization to meet a wide range of operational needs.

Load-Backrest

Designed with a load-backrest to prevent cargo from slipping, this feature ensures safer handling throughout operations.

Control System (Optional)

Featuring an integrated dashboard along with ergonomically designed steering, throttle, and brake controls, this system ensures safe, easy, and comfortable operation for the driver.

Overhead Guard

Designed for optimal driver safety, this overhead guard can also be customized for increased width and height to meet specific operational needs.

Control Valve

With a carefully planned design, this component offers straightforward, user-friendly operation and customizable options to meet diverse requirements.

Technical Specifications
Model CPC(D)50L CPC(D)60 CPC(D)70 CPC(D)100
Characteristics Power Diesel
Capacity kg 5000 6000 7000 10000
Load Centre mm 600 600 600 600
Lift Height mm 3000 3000 3000 3000
Min. Turning Radius mm 3240 3300 3370 3650
Performance Travel Speed Load km/h 24 24 24 20
Lift Speed Load mm/s 500 500 500 330
Dimensions Total Length With fork mm 4690 4730 4780 5497
Without fork mm 3510 3560 3600 4277
Total Width mm 1970 1970 1970 2245
Max. Height mm 4600 4600 4600 4293
Mast Height mm 2450 2450 2450 2870
Chassis Tyre Front 8.25-15NHS 8.25-15NHS 8.25-15NHS 9.00-20NHS
Rear 8.25-15NHS 8.25-15NHS 8.25-15NHS 9.00-20NHS
Wheelbase mm 2250 2250 2250 2800
Service Weight No load kg 8200 8900 9600 12410
Power Engine Model Quanchai/Xinchai
What are the common types of industrial forklifts?

In the material handling industry, the common types of forklifts are as follows:

  • Counterbalance forklifts
  • Rough terrain forklifts
  • LPG forklifts

Different types of forklifts are suitable for different work environments. Please refer to our forklift recommendations for industries.
