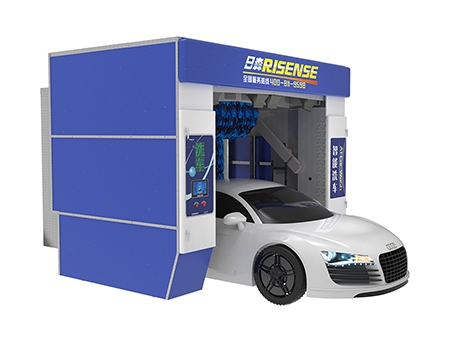

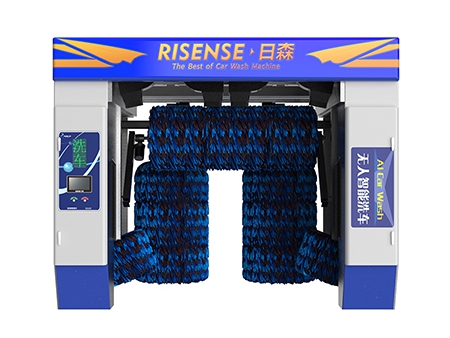

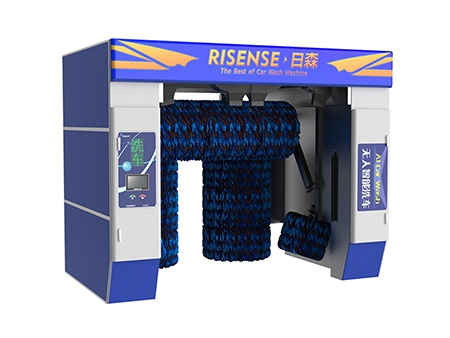

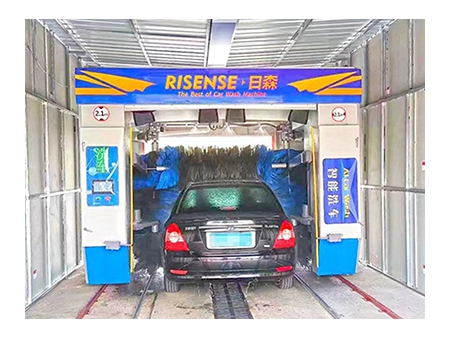

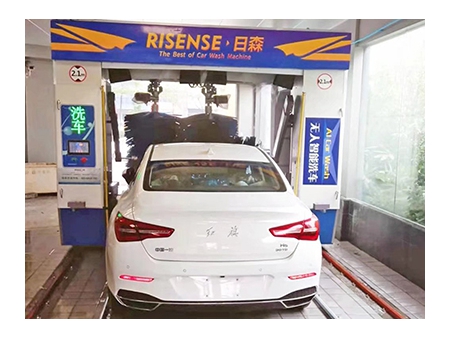

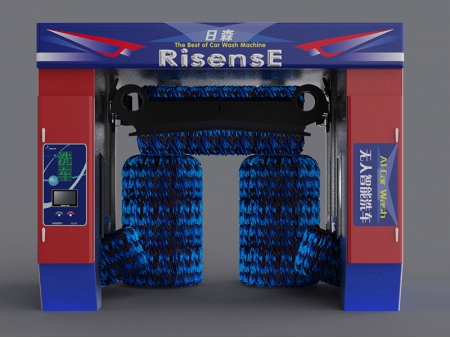

Rollover Car Wash Machine CF-340
CF-340 Rollover car wash machine is a highly cost-effective choice for rollover car washing. This car wash system is equipped with corrosion-resistant ZCF alloy bending frame; 4 sets of powerful and silent fixed blower dryer, with large blowing rate, high drying performance, low noise and eco-friendliness; low error rate, error code and cause display, convenient for troubleshooting.
- Features
- Advantages
- Details
- Parameters
- Car washing process
- Fully automatic PLC control system
- Leaned vertical brushes to fit and cover the car.
- Automatic foam and water wax mixing system.
- Touch-screen control, user-friendly UI, convenient for car washing, system maintaining and data viewing.
-
1. Scan QR code to start washing, unattended operation
Scan QR code to select suitable washing mode, follow the instruction to get prepared, then start car-washing, very convenient operation. -
2. 4-th gen opto-electronic sensor technology
The car is scanned by the opto-electronic sensor with high precision before entering the washing system, gets its shape measured for PLC to manipulate the top brush. -
3. Top brush fixed on double arm
Top brush is moved with double arm. The brush gets lifted by air cylinder, moves down by free falling via adjusting counterweight. By contact and interact between rotating top brush and the car, the top brush keeps fitting the shape of the car roof and washing efficiently.
-

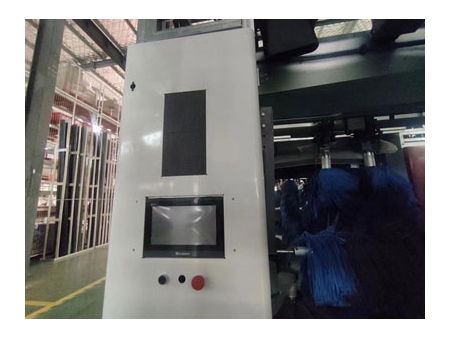

Control panel
-

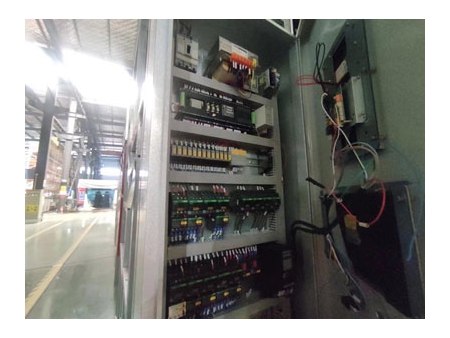

MCU control system
-

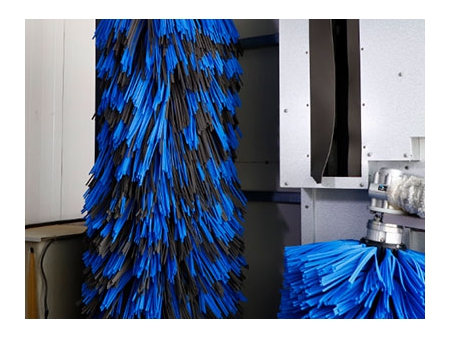

Foam brushes
-

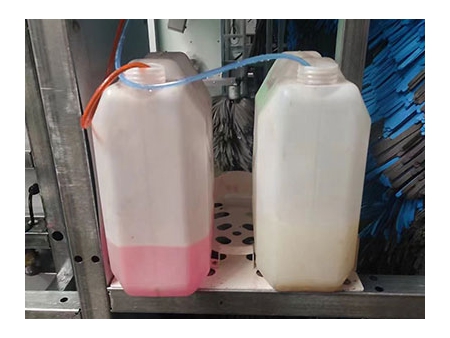

Shampoo and wax sprinkling
-

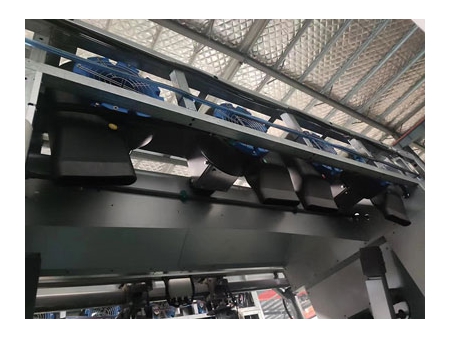

4 powerful air dryer
| Rollover car wash machine CF-340 | |
| Overall dimension | 2610*3600m*2815mm |
| Rail: 9000*3200mm | |
| Installation size | 10870*4300*3200mm |
| Voltage | AC 380V 50Hz (total power: 21.53kW) |
| Water supply | Pipe diameter: DN25, water flow≥80L/min |
| Air-source pressure | 0.75-0.8Mpa |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Light 4-wheeled vehicle, medium-sized car, coach within 7 seats |
| Moving range | 5200*2100(mirror folding)*2100mm |
| Car wash capacity | One rollover: 2'58'', two rollovers: 4'48'' |
| Water consumption | 75-115L/car |
| Power consumption | 0.3-0.5kWh/car |
| Shampoo consumption | 10ml/set |
| Wax consumption | 15ml/set |
| Short vertical brushes | 2 |
| Long vertical brushes | 2 |
| Top brush | 1 |
| Frame | ZFC alloy steel hot-dipped galvanized steel frame |
| Control system | MCU (Risense) |
| Optoelectronic monitoring | Banner from the USA |
| Proximity Switch | PEPPERL FUCHS from Germany |
| Contactor | Schneider from France |
| Solenoid valve | Pinguan |
| Thermal relay | Schneider from France |
| MCCB | Schneider from France |
| Motor protector | Schneider from France |
| Intermediate relay | Honeywell from the USA |
| Elevating motor with brake | SITI |
| Brush rotating motor | SITI |
Pre-wash --- foaming --- brushing --- water spraying --- water wax spraying --- drying
