Rollover Car Wash Machine CF-370 (EU type)
The high-speed car wash system (CF-370) is one of our high-end types of the rollover car wash systems. After over 3 years of research and development, Risense has launched this car wash system with tire brushes to satisfy the higher requirements of some customers. The high-speed car wash machine can rinse different parts of the vehicle at one time, and hence save time and resources.
- Parameters
- Advantages
- Details
- Configurations
| Rollover car wash machine CF-370 | |
| Overall dimension | 1940*3900*3080mm |
| Rail: 9000*3200mm/height of drag chain 3150mm | |
| Installation size | 11000*4300*3300mm (leave some space at both sides for access) |
| Voltage | AC 380V 50Hz |
| Water supply | Pipe diameter: DN25, water flow≥80L/min |
| Air-source pressure | 0.75-0.9MPa |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car/jeep/coach within 10 seats |
| Moving range | 5400*2100 (mirror folding) *2100mm |
| Car wash capacity | One rollover: 2'45'', two rollovers 5'20'', three rollovers: 7'20'' |
| Water consumption | One rollover: 85L/car, two rollovers:110L/car, three rollovers:130L/car |
| Power consumption | 0.46-0.65kWh/car |
| Shampoo consumption | 15ml/set |
| Wax consumption | 20ml/set |
| Short vertical brushes | 2 |
| Long vertical brushes | 2 |
| Top brush | 1 |
| Frame | ZFC alloy steel hot-dipped galvanized steel frame |
| Brush material | The 4th-generation foam brush |
| Control system | MCU (Risense) |
| Optoelectronic monitoring | Banner from the USA |
| Proximity Switch | Pepperl Fuchs from Germany |
| Contactor | Siemens from Germany |
| Solenoid valve | Pinguan |
| Thermal relay | Schneider from France |
| MCCB | Schneider from France |
| Motor protector | Schneider from France |
| Intermediate relay | Honeywell from the USA |
| Elevating motor with brake | SITI |
| Brush rotating motor | SITI |
- Fully-automatic PLC electronic control system improves the security.
- The galvanized door-shaped frame of the vehicle washing equipment features higher corrosion resistance and increases the service life.
- Powerful air dryers can follow the contours of vehicles to improve the drying effect.
- Foam and water wax proportioning system is easy to operate.
- Two-Click washing method simplifies operations.
- Built-in self-diagnose system can recognize and remove obstacles during car washing.
- 7 brushes (1 vertical lift overhead brush 2 small tire brushes 2 small vertical brushes 2 large vertical brushes)
-

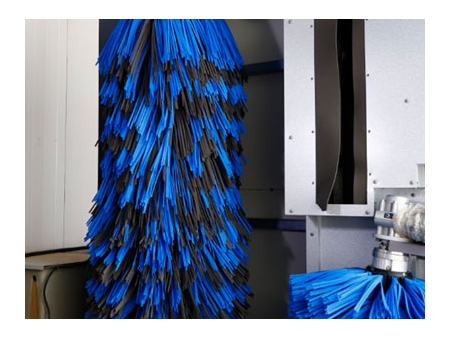

Foam brush
-

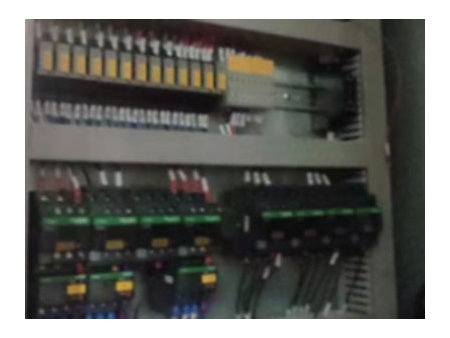

MCU control system
-
Touch screen
-

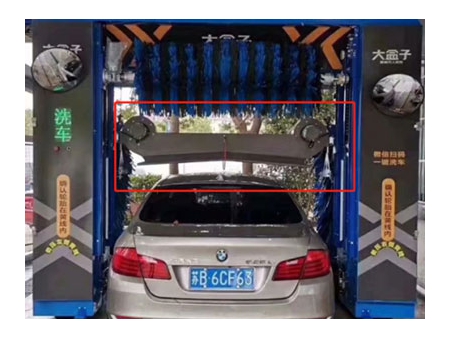

Air dryer – the contour-following drying system dries cars of any shapes
-

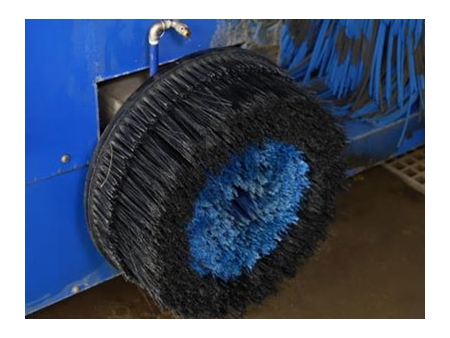

Wheel brushes
-
Side air outlets
-

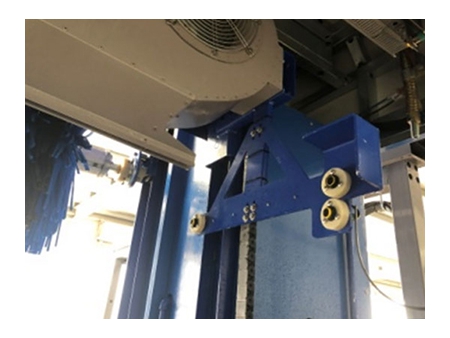

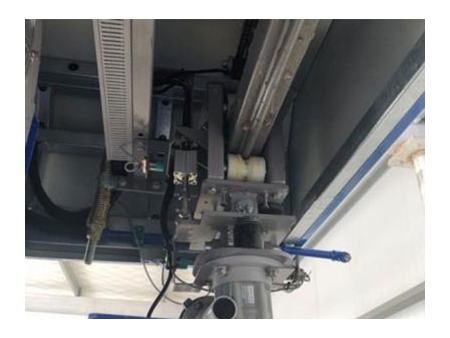

Risense’s rollover car wash machine CF-370 adopts the advanced bearing technology that shortens the distance between the top brush and the top air outlet. The length of the car wash machine is as short as 1.5 meters, which increases the spatial efficiency. The CF-370 is thus suitable for various sites.
-

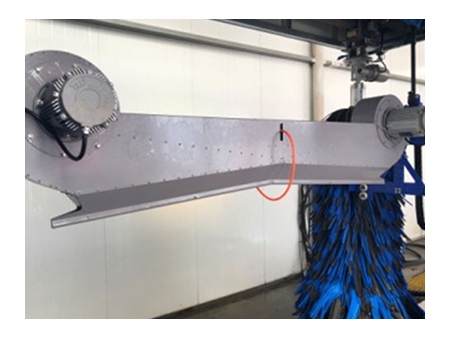

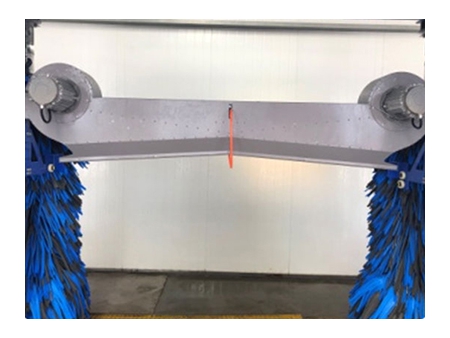

Air dyer system
The air dryer system comprised of 4 air compressors and 4 outlets is effective to dry cars. Turned V-shaped side blow can increase the use ratio of air power as it reduces air offset.
-

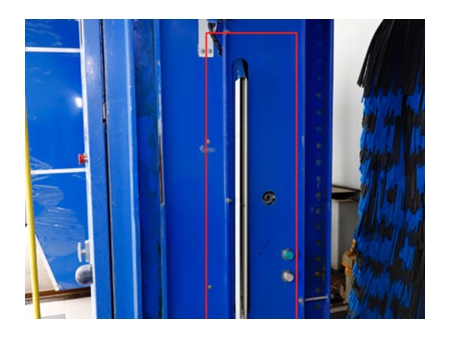

Photoelectric sensor
The air dryer system is equipped with 3 pairs of photoelectric sensors that can identify the car body shape and keep air outlets 10cm away from the car. The design well protects customers’ cars.
-
Height limit device
The height limit device will stop the machine if cars touch it, which increases the safety of car washing process.
-

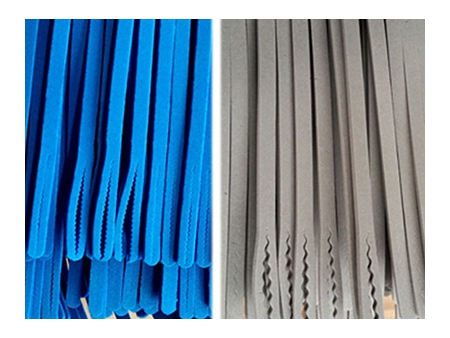

Side brushes and wheel brushes of Risense’s rollover car wash machine CF-370 are respectively made of cloth brushes and 4th generation of swallow-tailed sawtooth foam brushes. The combination of cloth and foam brushes performs well in terms of cleanness, quietness, durability, softness and safety, especially the foam brushes feature great capacity to retain water and reduce noise, which greatly improves user experience.
-

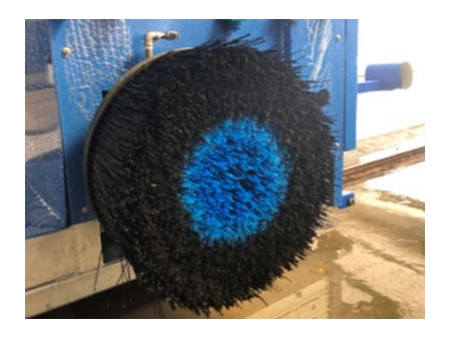

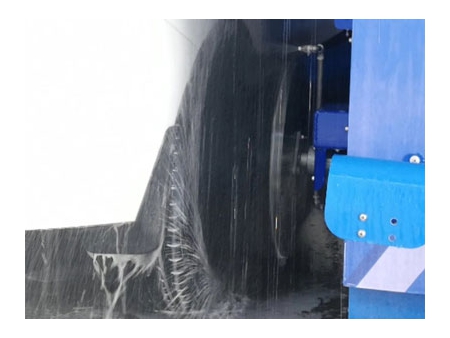

Wheel brushes
Pneumatic wheel brushes are made of nylons and they can wash deep into recesses and wheel rims.
-

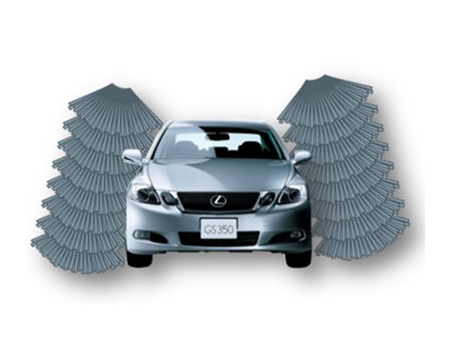

Brushes tilting technology
Brushes smartly adapt to the car body shape in the tilted position to effectively clean car sides and the rears.
-
Risense’s rollover car wash machine CF-370 collects car exterior information with the use of raster scanning before a car enters the machine. Motion of top brushes will be processed and calculated by PLC and thus is stable and immune to external factors. The smart safety system comprised of photoelectric censors and touch censors guarantee the safety and stability of the whole car washing process.
| Standard Devices | Optional Devices |
| Shampoo spray system | High-pressure water devices |
| Water wax spray system | water-repellent protective coating with high gloss finish |
| Contour-following drying system | Undercarriage wash system |
| Telescopic tire brushes | High-pressure prewashing water guns |
| Equipment data intellectualization | |
| Self-diagnose system |
