Compact Excavator SWE100E
- Operating weight: 9.5t
- Standard bucket capacity: 0.4m³
- Rated power: 60.7kW/2200rpm
Compact Excavator, SWE100E
Request a Quote
Long undercarriage track design ensures higher stability and durability;
Able to tackle a wide variety of tasks with ease of maneuverability, while achieving high operating efficiency;
Optimal arrangement of internal parts with manufacturing process and machine appearance rivaling that of a medium excavator, capable of executing multifunction operations;

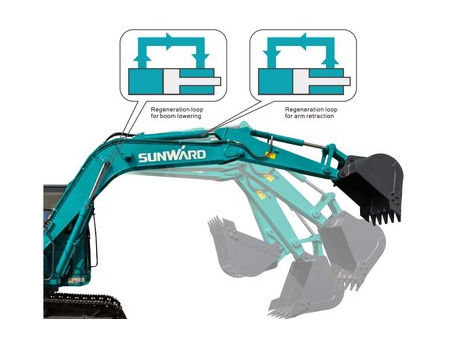

New generation hydraulic system, large pipe diameter and low pressure drop, ensuring high efficiency and low fuel consumption;

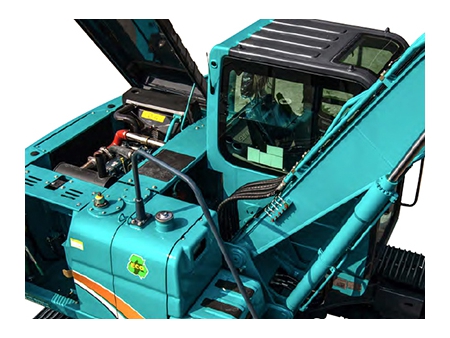

Centralized lubrication and ground-level greasing points enable the daily maintenance easier;
Technical Specifications
| Bucket capacity | m³ | 0.4 | ||
| Standard bucket width | mm | 840 | ||
| Operating weight | kg | 9500 | ||

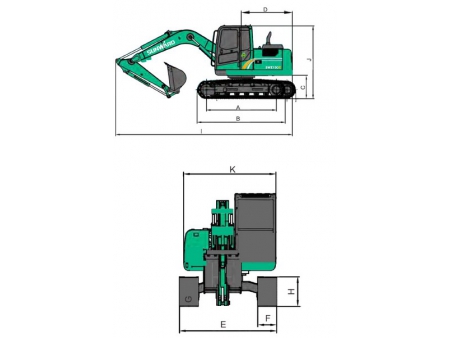

| Dimension parameters | A | Sprocket center to idler center | mm | 2560 |
| B | Track length | mm | 3225 | |
| C | Counterweight clearance | mm | 845 | |
| D | Tail swing radius | mm | 1870 | |
| E | Undercarriage width | mm | 2320 | |
| F | Track width | mm | 450 | |
| G | Min. ground clearance | mm | 370 | |
| H | Track height | mm | 700 | |
| I | Overall length | mm | 6470 | |
| J | Overall height | mm | 2660 | |
| K | Overall width of upperstructure | mm | 2320 | |

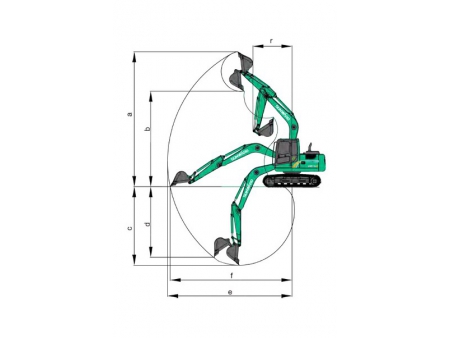

| Working range | a | Max. digging height | mm | 7515 |
| b | Max. dumping height | mm | 5315 | |
| c | Max. digging depth | mm | 4372 | |
| d | Max. vertical digging depth | mm | 3930 | |
| e | Max. digging reach | mm | 6950 | |
| f | Max. digging reach at ground level | mm | 6800 | |
| Engine | Brand | Kubota | ||
| Model | V3800-DI-T-ET09 | |||
| Total displacement | L | 3.769 | ||
| Rated output power | kW/rpm | 60.7/2200 | ||
| Max. digging force (arm) | kN | 43 | ||
| Max. digging force (bucket) | kN | 64.5 | ||
| Travel speed (high/low) | km/h | 4.5/2.7 | ||
| Gradeability | ° | 35 | ||
| Slewing speed | rpm | 9 | ||
| Ground pressure | kpa | 36.8 | ||
| Slewing motor type | Plunger motor | |||
| Driving motor type | 2-speed plunger motor | |||
| Fuel tank capacity | L | 145 | ||
| Hydraulic tank capacity | L | 120 | ||
Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
