CRI 3000KN Rubber Injection Molding Machine
Product introduction
Heating plate size: 650 mm×700 mm.
Clamping force: 3000 KN.
Applications

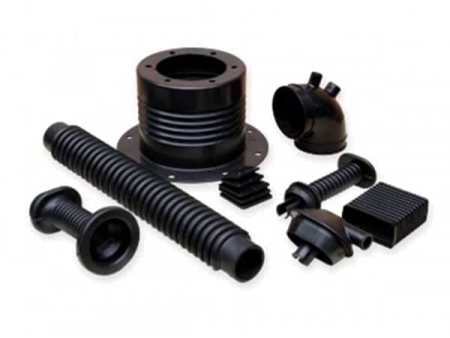

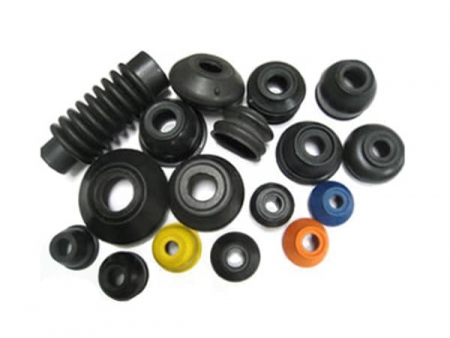

Compact and efficient, CHAP rubber injection molding machine is particularly suitable for producing rubber products that are difficult to mold, like those with complex shapes.
- The PLC control system ensures operation is stable and reliable, with a low failure rate. Omaron or Siemens PLC systems are available upon request.
- This rubber molding machine's heating plate is heated using an electric heating pipe. It uses a PID closed loop control to strictly monitor the heating plate temperature uniformity of the heating plate.
- The CRI3000 rubber injection molding machine features a four-cylinder parallel injection structure which improves the balance during the rubber injection process, and cuts down on the longitudinal space of the injection component. As a result, the injection plunger is easy to remove.
- This molding machine uses electro-hydraulic proportional variable pump technology and is equipped with a German proportional variable pump, which significantly reduces system energy consumption while increasing operation speed.
| CRI3000 | |
| Clamping force | 3000 KN |
| Heating plate size | 650 mm×700 mm |
| Heating plate spacing | 500~600 mm |
| Theoretical injection capacity | 3000 cm3 |
| Screw diameter | ￠50 mm |
| Screw rotational speed | 0~120 r/min |
| Plunger diameter | ￠95 mm |
| Injection pressure | 170 Mpa |
| Mould opening stroke | 450mm |
| Motor power | 15KW |
| Heating power | 24.4KW |
| External dimension (LxWxH) | 3500mm×2200mm×5100mm |
| Oil tank capacity | 420L |
Beginning its business in 2004, CHAP is one of the rubber injection molding machine manufacturers and suppliers. We can produce various rubber machineries, such as rubber transfer molding machine, C-Frame Transfer type molding machine, plate rubber vulcanizing machine, custom rubber machine, and more. Our products are EC and CQC certified, and they are well accepted by customers from Europe, South America, Southeast Asia, East Asia, Middle East, and other regions. In addition, our location in Ningbo City, provides us with easy access to convenient transportation, which reduces our transportation cost, enabling us to offer quality products at economical prices. If you are in need of our products, please contact us. Our staff is ready and waiting to serve you.
