Vertical Multi-Layer Dryer

Request a Quote

Website: http://glassprintmachine-en.com/1-2-4-vertical-multi-layer-dryer.html

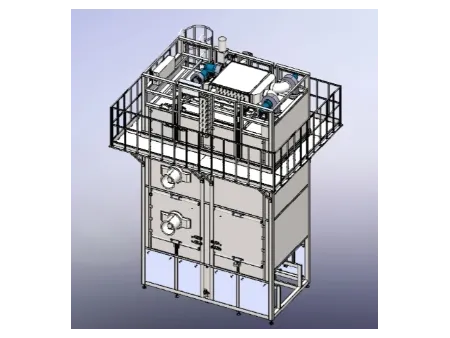

Industrial vertical drying oven for heating and drying glass panels

Vertical multi-layer dryers are designed for efficient drying of glass panels while optimizing floor space. By using a vertical storage and transfer mechanism, they support continuous production in a compact layout, making them ideal for high-volume printing lines.

Technical Specifications

Model	BWIR-1420U-60
Max. glass size (mm)	1400 × 2000
Min. glass size (mm)	500 × 700
Glass thickness (mm)	Flat: ≤ 6 Curved: ≤ 2.1
Number of trays	60
Conveying speed (m/min)	≤ 42
Operating temperature	≤ 200 °C
Drying time (min)	14
Heating capacity (kW)	Approx. 80
Overall dimensions (mm)	4120 × 2520 × 6120

Features

Equipped with an automated loading and unloading system for smooth panel transfer.
Glass panels are vertically stacked and transferred using a first-in, first-out circulation method, reducing floor space usage.
Electric heating elements combined with a scientifically designed air circulation system ensure even temperature distribution and energy-efficient performance.
The number of drying shelves is customized according to production speed and drying time requirements, supporting fully automated workflows.
