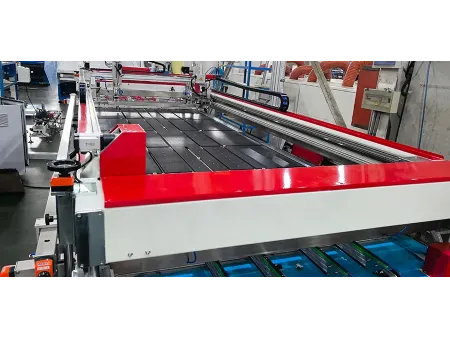

Automatic Screen Printing Machine for Architectural Glass

Architectural glass printing machines for screen printing on architectural glass and interior decorative glass

This vertically lifting screen printing equipment series offers a stable, space-efficient structure tailored to the needs of medium-sized businesses focused on architectural and interior decorative glass. Its reliable mechanical build ensures consistent performance during the printing of large glass panels. Large-size glass is positioned manually, then automatically transported via the built-in vertical conveyor to the next stage, moving seamlessly into the drying section for post-processing. The integrated structure simplifies the material flow while reducing manual handling, making it practical for facilities aiming to enhance stability and efficiency without overcomplicating their setup.

Technical Specifications

Model	BWSP-1520GU
Max. printing size (mm)	1500 × 2000
Max. frame size (mm)	400 × 400
Glass thickness (mm)	1.6 – 6
Max. screen size (mm)	2000 × 2700
Printing/flooding speed (m/s)	0.2 – 0.7
Unloading speed (m/min)	42
Screen alignment adjustment	±10 mm (4 points)
Screen lifting stroke (mm)	Approx. 500
Peel-off height (mm)	0 – 45
Power supply	3-phase 440V, 8 kW
Outer dimensions (L × W × H) (mm)	Approx. 3550 × 2600 × 1650

Features

Compatible with drying equipment for basic continuous production setups
Offers flexibility for small-batch and multi-variety printing needs
Maintains reliable print quality even with frequent job changes
Ideal for small and medium-sized businesses due to its cost-effective operation
Helps reduce equipment investment while improving production efficiency
