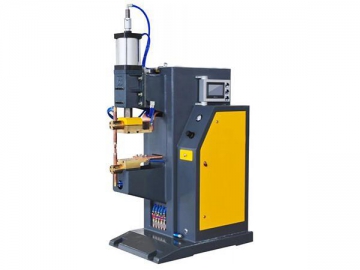

Resistance Spot Welding Machine, 280KVA DC Welder
Request a Quote
With 280KVA power, this resistance spot welding machine will weld aluminum plates with a thickness of 3+3mm and iron plates with a thickness of 5.5+5.5mm. With a 98% power factor, the 280KVA DC welder has a high quality and high efficiency welding ability. Its maximum pressing force is up to 15000N, thus avoiding poor welding effects due to an insufficient pressure. The pressing force can also be modified if necessary. This equipment is easy to operate with PLC touch screen control, and features an abnormal current alarm in order to ensure the safety levels.
The basic information of 2280KVA DC welder is shown as below. For more information or customization services, please do not hesitate to contact us directly.
Parameters| Model | DTBZ-230 |
| Rated capacity | 230KVA |
| Rated voltage input | 3Φ380V |
| Inverter frequency | 1000HZ |
| Max short-cut current | 60KA |
| Max welding input | 420KVA |
| Duty cycle | 20% |
| Arm dimension | 220*480mm |
| Max pressing force | 15000N |
| Electrode stroke | 150mm |
| Consumer of cooling water | ≥30L/min |
| Electrode head | Φ20mm |
| Electrode holder | Φ30mm |
| Electrode arm | Φ79mm |
| Projection platform | 180*200mm |
| Max Welding ability | Alu:3+3mm |
| iron:5.5+5.5mm |
