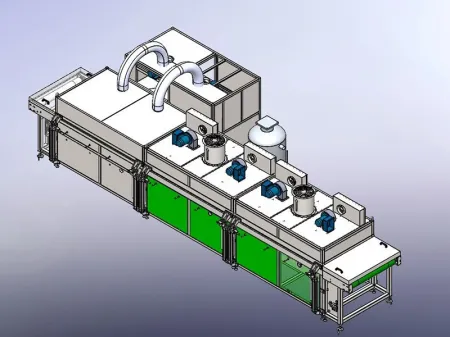

Industrial cooling system for cooling glass panels after drying

chiller coolers can significantly reduce the temperature of glass panels after drying, helping stabilize inks and coatings before further processing. These cooling systems rely on an external chiller or a water source below 10°C to deliver efficient and consistent cooling performance. Thanks to a closed-loop airflow design and effective insulation, they maintain energy efficiency without compromising on cooling power.

Features

Compatible with centralized air-conditioning units or external cold water sources below 10°C to maximize cooling performance.
Utilizes a chilled condenser to cool the recirculating air, which is then blown directly onto the glass surface for fast and even temperature reduction.
Equipped with stainless steel upper and lower air hoods, thermal insulation, and external-mounted circulation fans to enhance energy efficiency and airflow control.
Available in standard tunnel widths of 600 mm, 1000 mm, 1300 mm, 1800 mm, 2000 mm, and 2400 mm to accommodate different glass sizes.
Uses rubber roller conveying for stable transport and reduced risk of surface damage.
