Ultra-Thick Spacer Fabric Warp Knitting Machine
Request a Quote
GE585 Raschel Machine
Double needle bar raschel knitting machine for producing thick spacer textiles and imitation wigs
Applications

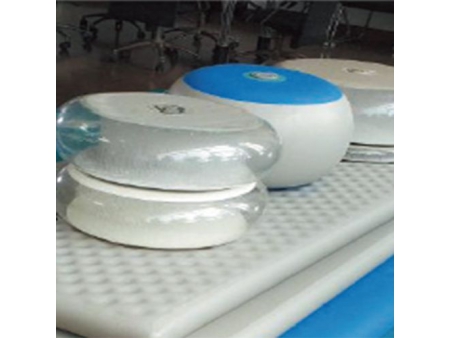

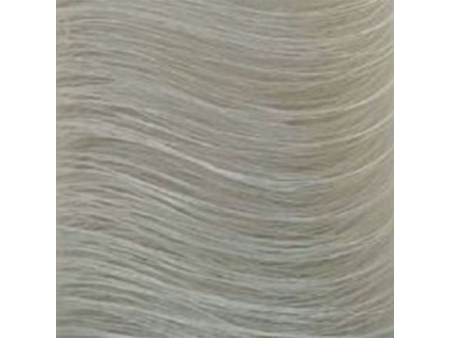

Thick spacer textiles and imitation wigs used in inflatable products, like tarmacs, hangars, floating bridges, and swimming pools.
Features
- Ultra-Thick spacer fabric warp knitting machine uses an oil immersed cam-linkage mechanism.
- The spacer fabric warp knitting machine comes with a pile swing arm, which adopts double guide rail electronic translation structure.
- Spacer fabric warp knitting machine has functions of electronic yarn let-off, electronic guide bar control (EL), and central fabric take-up.
- Knock-over comb bar distance can be automatically adjusted within a range of 100-350mm.
Specifications
- Needle type Individual latch needle
- Gauge E16, E18, E22
- Number of bars 5 bars
- Distance between knocking-over bar 100-350mm
- Working width 90"/100"/110"
- Max. speed 400 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 4000×7350×3750 | 29.4 | 8200 | 20.5 | |
| 4760×7350×3750 | 34.986 | 8750 | 20.5 | |
| 5520×7350×3750 | 40.572 | 9350 | 20.5 |
