Jacquard Spacer Fabric Warp Knitting Machine
Request a Quote
GE2296-6/1 Raschel Machine
Double needle bar raschel knitting machine for producing spacer textiles with jacquard patterns used in shoes, luggage and automotive upholstery
Applications

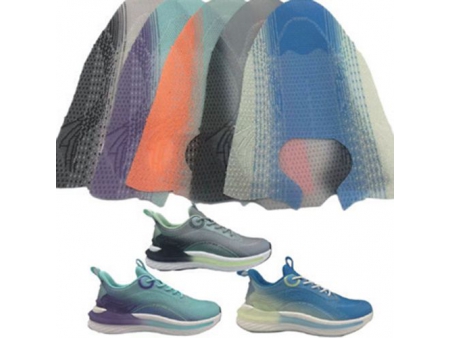

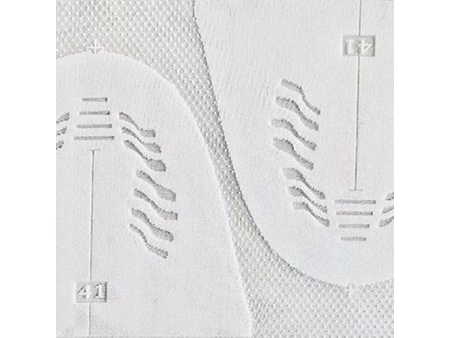

Spacer textiles with jacquard patterns used in shoes, luggage, home décor and automotive upholstery, etc.
Features
- Jacquard spacer fabric warp knitting machine uses an optimized cam connecting rod mechanism.
- The spacer fabric warp knitting machine adopts a four-bar-linkage mechanism for knitting process.
- A jacquard bar is applied in this textile machinery.
- The textile machinery utilizes short-stroke tongue needles for faster weaving speed and fabric output speed.
- Jacquard spacer fabric warp knitting machine has functions of electronic yarn let-off, electronic take-up, and independent batching.
Specifications
- Needle type Individual latch needle, block latch needle
- Gauge E18, E22, E24, E28
- Number of bars 6 bars (5 ground bars, 2 pieces of half jacquard bar)
- Distance between knocking-over bar 2-16mm
- Working width 90"/110"/138"
- Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 4100×5500×3400 | 22.55 | 8000 | 8.25 | |
| 4450×5500×3400 | 24.475 | 9000 | 12.25 | |
| 5500×5500×3400 | 30.25 | 12000 | 12.75 | |
| 6010×6010×3940 | 36.1 | |||
