GE2285 Raschel Machine

Double needle bar raschel knitting machine for producing spacer textiles used in mattress pad

Applications

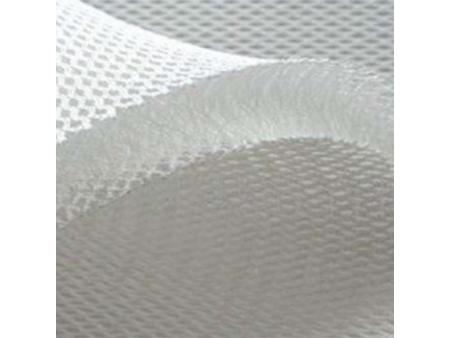

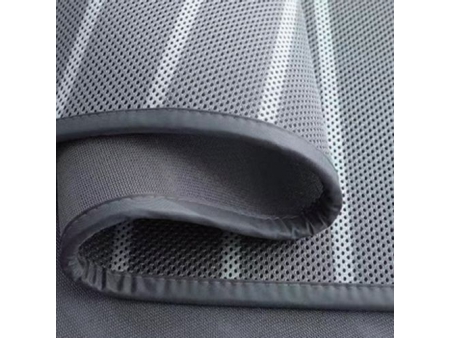

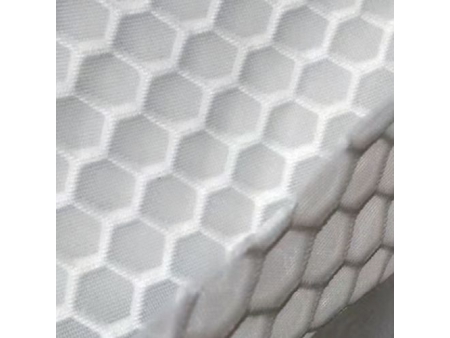

Multi-layer spacer fabrics used in mattresses pads and sandwich fabrics.

Features
  • Spacer fabric warp knitting machine uses an oil-immersed cam combined with eccentric connecting rod transmission mechanism, with the knock-over comb bar remaining steady.
  • The Raschel warp knitting machine utilizes short-stroke tongue needles for faster weaving speed and fabric output speed.
  • The warp knitting machinery has functions of electronic yarn let-off and electronic fabric take-up.
Specifications
  • Needle type Individual latch needle, block latch needle
  • Gauge E18, E22, E24, E28
  • Number of bars 5/6/7 bars
  • Distance between knocking-over bar 2-16mm
  • Working width 100"/110"/138"/170"/210"
  • Max. speed 1000 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
2285-100" 4450×5500×3400 24.475 9250 12.5
2285-110" 4800×5500×3400 26.4 10000 12.5
2285-138" 5500×5500×3400 30.25 12000 14.25
2285-170" 6100×5500×3400 33.55 14500 21
2285-210" 8300×5500×3400 45.65 17500 21.5
