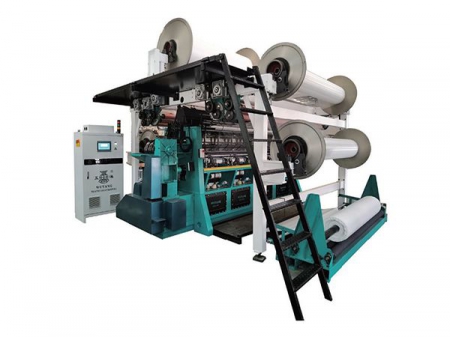

GE386 Raschel Machine

Double needle bar raschel knitting machine for producing plush fabrics and blankets

Applications

Plush fabrics used in plush toys, apparel, blankets and home upholstery

Features
  • High speed plush fabric warp knitting machine uses an oil immersed cam-linkage mechanism and fixed ground bars.
  • Raschel warp knitting machine utilizes ear-lowering pieces and wire guards to prevent breakage during fabric insertion.
  • The yarn let-off device controls the 2 rollers for positive yarn feeding.
  • The 2 pile bars are equipped with EL pattern drive with electronic guide bar drives.
  • The plush has a pile height of 4.5-25mm.
Specifications
  • Needle type Block latch needle
  • Gauge E22
  • Number of bars 6 bars (4 ground bars, 2 pile bars)
  • Working width 90"/100"/110"/138"
  • Max. speed 850 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
GE386-90" 3700×6050×3750 22.55 8000 15.5
GE386-100" 4000×6050×3750 24.475 9250 15.5
GE386-110" 4350×6050×3750 26.4 10000 15.5
GE386-138" 5100×6050×3750 30.25 12000 15.75
