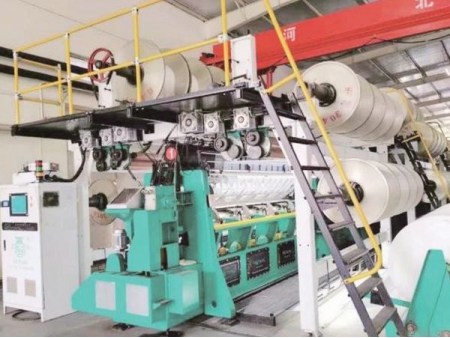

GE286 Raschel Machine

Double needle bar raschel knitting machine for producing blankets, plush fabrics and automotive textiles

Applications

Blankets, plush fabrics and automotive textiles

Features
  • Short plush fabric warp knitting machine uses an oil immersed cam-linkage mechanism.
  • The plush has a pile height of 2-8mm.
Specifications
  • Needle type Block latch needle
  • Gauge E16 E18 E22 E24
  • Number of bars 5, 6 bars
  • Distance between knocking-over bar 4-16mm
  • Working width 90"100"110"138"
  • Max. speed 650 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
GE286-90" 4000×5600×3690 22.4 8000 4.5
GE286-100" 4400×5600×3690 24.6 8500 4.5
GE286-110" 4800×5600×3690 26.9 10000 4.5
GE286-138" 5500×5600×3690 30.8 12000 5.5
