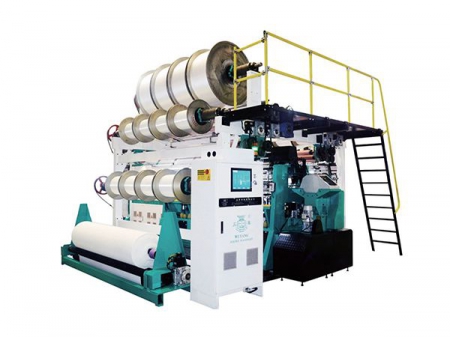

GE2887 Raschel Machine

Double needle bar raschel knitting machine for producing jacquard blankets, plush toys, apparel and filter fabrics

Applications

Eco-friendly air conditioning filter materials, short, medium, and long plush jacquard fabrics for jacquard blankets, plush toys, apparel and filter fabrics.

Features
  • Jacquard blanket warp knitting machine uses an oil immersed cam-linkage mechanism and 3 swinging bars.
  • Raschel warp knitting machine allows for complex jacquard.
  • The textile machinery has functions of electronic yarn let-off and EL pattern drive with electronic guide bar drives.
  • Finished plush products have excellent quality with minimal shedding.
Specifications
  • Needle type Individual latch needle, block latch needle
  • Gauge E16, E18, E22
  • Number of bars 7 bars
  • Distance between knocking-over bar 10-50mm
  • Working width 100"/110"
  • Max. speed 700 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
2887-100"(EL) 3700×7270×3750 26.9 8000 20.5
2887-110"(EL) 4350×7270×3750 31.6 9350 20.5
