Medium Pile Plush Fabric Warp Knitting Machine
Request a Quote

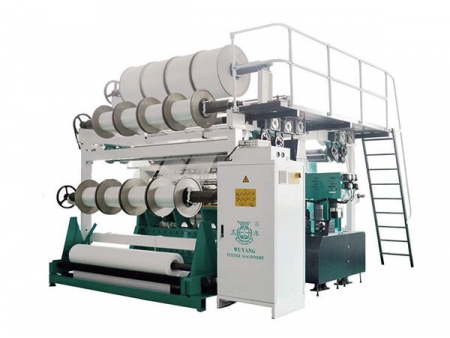

GE288A Raschel Machine
Double needle bar raschel knitting machine for producing plush fabrics used in plush toys, blankets, apparel and home upholstery
Applications
Plush fabrics used in plush toys, blankets, apparel and home upholstery.
Features
- Medium pile plush fabric warp knitting machine uses an oil immersed cam-linkage mechanism.
- The spacer fabric warp knitting machine comes with fixed ground bars.
- Plush fabric warp knitting machine comes with a steel wire put into eyelet of the sinker to prevent close circle.
- The yarn let-off device controls the 2 rollers for positive yarn feeding.
- The plush has a pile height of 5-25mm.
Specifications
- Needle type Individual latch needle, block latch needle
- Gauge E16, E18, E22
- Number of bars 5 bars
- Distance between knocking-over bar 10-50mm
- Working width 90"/100"/110"/138"/150"/158"/170"/192"
- Max. speed 800 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3700×6050×3750 | 22.4 | 8000 | 10 | |
| 4000×6050×750 | 24.2 | 8500 | 10 | |
| 4350×6050×3750 | 26.3 | 9350 | 11 | |
| 5100×6050×3750 | 30.9 | 12000 | 12.5 | |
| 5100×6050×3750 | 30.9 | 12500 | 14.5 | |
| 5300×6050×3750 | 32.1 | 12500 | 15.5 | |
| 6100×6050×3750 | 36.9 | 14000 | 15.5 | |
| 6500×6050×3750 | 39.3 | 16000 | 17.5 |
