Chilled water system for commercial applications

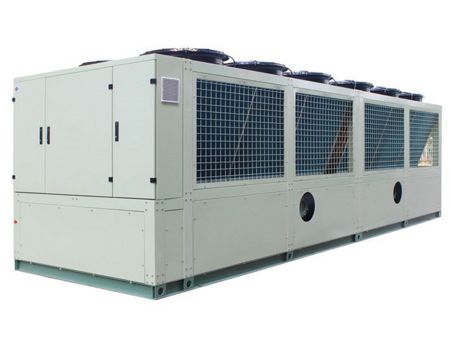

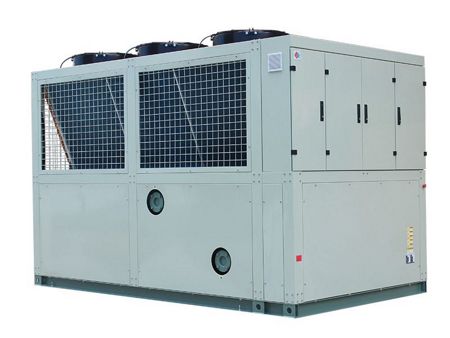

This air-cooled magnetic bearing chiller offers exceptional efficiency and is easy to operate. It's equipped with an advanced evaporator and high-performance condenser designed and produced in-house, and runs on our low-energy, low-noise external rotor fan. For precise temperature control with an accuracy of ±0.1°C, the compressor is frequency-converted and can be controlled. The cooling capacity of the unit is 857 kW, and its chilled water outlet has a temperature range of 5-20°C. Additionally, non-standard units are available to satisfy any customized requirements. This air-cooled chiller can operate normally even in adverse environments, from -5 to 43°C, making it suitable for all kinds of small and medium-scale commercial and industrial facilities.

Features
  • The cooling capacity of this chiller spans 420-7800kW, providing water at temperatures as low as 5°C. We supply standard models, but also customize non-standard products to fit customers’ individual needs. Furthermore, we manufacture chillers for seawater and other sources.
  • Two-stage centrifugal compression sets a new bar for efficiency and stability. It utilizes a system economizer to add an extra level of compressor performance, increasing cooling output up to 10%. Further, its design provides even greater stability and safety than conventional centrifugal chillers.
  • The DC frequency conversion motor helps optimize efficiency and reduce energy consumption.
  • A high-efficiency, refrigerated cooled permanent magnet synchronous motor is able to run at rapid speeds. Its efficiency is impressive, reaching a maximum 97%.
  • Equipped with a soft starter that causes only a small 2A current, this chiller doesn't put a strain on the grid. Add to that its efficient heat exchanger that provides optimal performance - this is a top-of-the-line device you can depend on.
  • Utilizing independent research and production, H. Star can create and implement high-performance heat exchangers, in combination with the electronic expansion valve and liquid level sensor to monitor and regulate liquid levels and maintain maximum efficiency during heat exchange operations.
  • The IPLV rating for this chiller is up to 10.7 and its partial load COP value is greater than 13.
Specifications

Air-Cooled Magnetic Bearing Chiller

Refrigerant: R134a
Power supply: 380V-3N-50Hz

Model Nominal cooling capacity Power input Capacity control % Refrigerant charge kg Condenser / Fan Evaporator Noise level dB(A) Shipping weight kg Operating weight kg
kW USRT kW Quantity Air flow m3/h Power kW Design water pressure MPa Pipe diameter (inlet/outlet) in Water flow m3/h Water pressure drop kPa
50STE-M250ASF4 857 244 240 10~100%, DC VFD adjustment 320 12 350000 24 1 6″ 147.404 42 84 4800 5200

Notes:

  • 1. Rated cooling capacity standard: air dry / wet bulb temperature 35℃ /24℃, chilled water inlet/outlet temperature 12℃ /7℃, fouling factor 0.088 ㎡•℃ /kW;
  • 2. Chiller water temperature range: 5℃ ~20℃;
  • 3. Ambient temperature range: 15℃ ~43℃.

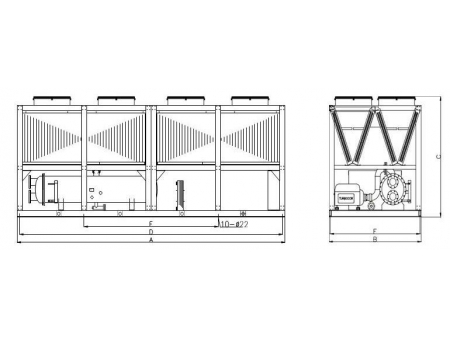

Dimensions
Model A B C D E F
50STE-M150ASF4 6100 2100 2450 5980 3200 2100
50STE-M200ASF4 7000 2500 2500 6000 3500 2200
50STE-M250ASF4 7000 2500 2600 6500 3500 2300

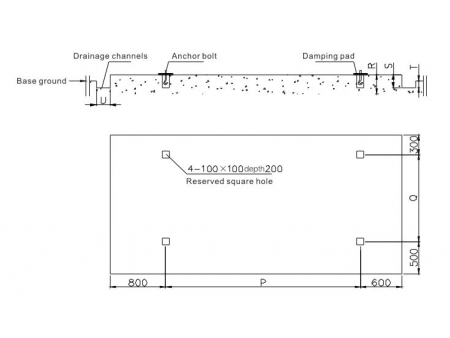

Model P Q R S T U
50STD-M300F2ASF4 3075 1410 300 200 100 200
50STD-M450F2ASF4 3300 2000 300 200 100 200
50STD-M900F2ASF4 4000 2000 300 200 100 200
50STD-M1350F2ASF4 5000 2000 300 200 100 200
50STD-M1800F2ASF4 5000 2000 300 200 100 200
50STD-M2250F2ASF4 6000 2000 300 200 100 200
