GE299 Raschel Machine

Double needle bar raschel knitting machine for producing semi-rigid fiberglass grid cloths

Applications

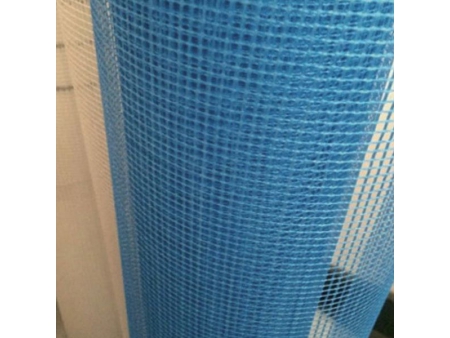

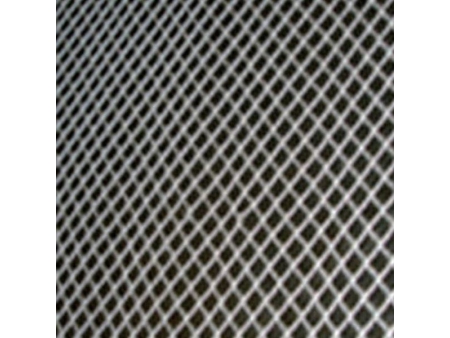

Semi-rigid fiberglass grid cloths used in aerospace and high-end mesh fabrics, etc.

Features
  • Grid cloth warp knitting machine adopts an oil immersed cam-linkage mechanism.
  • The raschel knitting machine uses compound needles.
  • The textile machinery has the functions of electronic yarn let-off and electronic fabric take-up.
Specifications
  • Needle type Compound needle
  • Gauge E6, E12, E18, E22
  • Number of bars 6/7/8 bars
  • Working width 132"
  • Max. speed 500 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
GE299-132" 6285×2100×3100 13.2 8000 9.25
