Block Bottom Bag Making Machine XKFD-330F/450F/540F
Request a Quote

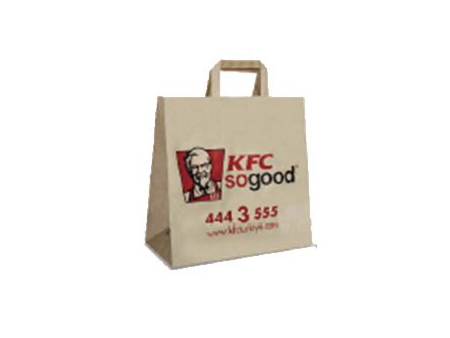

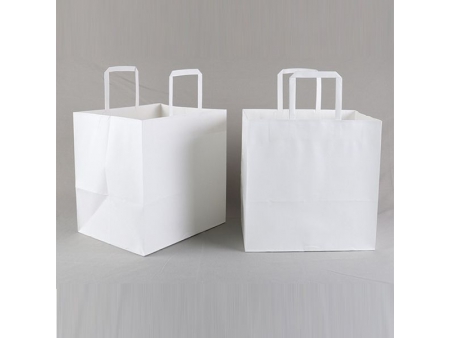

Automatic Roll-fed Paper Bag Making Machine for Square Bottom Bag & SOS Bag with Flat Handles
This automatic roll-fed paper bag making machine is currently the most advanced block bottom bag making machine for manufacturing paper carrier bags and paper shopping bags with flat handles. Simply place the blank or printed paper roll, this paper bag making machine will automatically conduct the entire paper bag manufacturing process from flat handle making, patch attaching, side gluing, cutting, bag forming through to completion. The paper bag machinery adopts servo motor control system to ensure high precision and good stability, and PLC control system is used to adjust the length of paper bag.
Request a quote
Paper Bag Making Process
Specifications
- Model: XKFD-330F
- Cut-off length: 270-530mm
- Cut-off length (handle): 270-430mm
- Bag width: 120-330mm
- Bag width (handle): 200-330mm
- Bottom width: 60-180mm
- Paper thickness: 60-150g/㎡
- Paper thickness (handle): 80-150g/㎡
- Paper roll width: 380-1050mm
- Paper roll width (handle): 570-1050mm
- Paper core diameter: Φ 76mm
- Paper roll diameter: Φ 1200mm
- Handle center distance: 78mm
- Flat handle width: 12mm
- Flat handle height: 100mm
- Patch width: 50mm
- Patch length: 152mm
- Flat handle length: 352mm
- Patch paper roll width: 100mm
- Patch paper thickness: 120g/㎡
- Handle paper roll diameter: 1200mm
- Production speed for bags with handles: 30-110pcs/min
- Production speed for bags without handles: 30-180pcs/min
- Machine speed: 30-200pcs/min
- Cutting type: Sawtooth cutting
- Power supply: 380v 3phase 4line 41.5kw
- Machine weight: 16000kg
- Machine size: 14000×6000×2400mm
- Model: XKFD-450F
- Cut-off length: 270-530mm
- Cut-off length (handle): 270-430mm
- Bag width: 220-450mm
- Bag width (handle): 240-450mm
- Bottom width: 90-180mm
- Paper thickness: 80-150g/㎡
- Paper thickness (handle): 80-150g/㎡
- Paper roll width: 650-1290mm
- Paper roll width (handle): 690-1290mm
- Paper core diameter: Φ 76mm
- Roll paper diameter: Φ 1200mm
- Handle center distance: 85mm
- Flat handle width: 12mm
- Flat handle height: 100mm
- Patch width: 50mm
- Patch length: 190mm
- Flat handle length: 352mm
- Patch paper roll width: 100mm
- Patch paper thickness: 120g/㎡
- Handle paper roll diameter: 1200mm
- Production speed for bags with handles: 30-90pcs/min
- Production speed for bags without handles: 30-150pcs/min
- Machine speed: 30-180pcs/min
- Cutting knife: Sawtooth cutting
- Power supply: 380V 3phase 4line 41.5kW
- Machine weight: 16000kg
- Machine size: 14000×6000×2400mm
- Model: XKFD-540F
- Cut-off length: 380-760mm
- Cut-off length (handle): 380-660mm
- Bag width: 220-540mm
- Bag width (handle): 240-540mm
- Bottom width: 80-220mm
- Paper thickness 80-150g/m²
- Paper thickness (handle): 80-150g/m²
- Paper roll width: 620-1370mm
- Paper roll width (handle): 670-1370mm
- Paper core diameter: Φ 76mm
- Paper roll diameter: Φ 1200mm
- Handle center distance: 85mm
- Flat handle width: 12mm
- Flat handle height: 100mm
- Patch width: 50mm
- Patch length: 190mm
- Flat handle length: 352mm
- Patch paper roll width: 100mm
- Patch paper thickness: 120g/m²
- Handle paper roll diameter: 1200mm
- Production speed for bags with handles: 30-90pcs/min
- Production speed for bags without handles: 30-100pcs/min
- Machine speed: 30-150pcs/min
- Cutting knife: Serrated cutting
- Power supply: 380V 3phase 4line 41.5kW
- Machine weight: 16600kg
- Machine size: 16100×6500×2400mm
| Model | XKFD-330F | XKFD-450F | XKFD-540F |
| Cut-off length | 270-530mm | 270-530mm | 380-760mm |
| Cut-off length (handle) | 270-430mm | 270-430mm | 380-660mm |
| Bag width | 120-330mm | 220-450mm | 220-540mm |
| Bag width (handle) | 200-330mm | 240-450mm | 240-540mm |
| Bottom width | 60-180mm | 90-180mm | 80-220mm |
| Paper thickness | 60-150g/m² | 80-150g/m² | 80-150g/m² |
| Paper thickness (handle) | 80-150g/m² | 80-150g/m² | 80-150g/m² |
| Paper roll width | 380-1050mm | 650-1290mm | 620-1370mm |
| Paper roll width (handle) | 570-1050mm | 690-1290mm | 670-1370mm |
| Paper core diameter | Ø76mm | Ø76mm | Ø76mm |
| Paper roll diameter | Ø1200mm | Ø1200mm | Ø1200mm |
| Handle center distance | 78mm | 85mm | 85mm |
| Flat handle width | 12mm | 12mm | 12mm |
| Flat handle height | 100mm | 100mm | 100mm |
| Patch width | 50mm | 50mm | 50mm |
| Patch length | 152mm | 190mm | 190mm |
| Flat handle length | 352mm | 352mm | 352mm |
| Patch paper roll width | 100mm | 100mm | 100mm |
| Patch paper thickness | 120g/m² | 120g/m² | 120g/m² |
| Handle paper roll diameter | 1200mm | 1200mm | 1200mm |
| Production speed for bags with handles | 30-110pcs/min | 30-90pcs/min | 30-90pcs/min |
| Production speed for bags without handles | 30-180pcs/min | 30-150pcs/min | 30-100pcs/min |
| Machine speed | 30-200pcs/min | 30-180pcs/min | 30-150pcs/min |
| Bottom folding type | |||
| Cutting knife | Serrated cutting | Serrated cutting | Serrated cutting |
| Power supply | 380V 3phase 4line 41.5kW | 380V 3phase 4line 41.5kW | 380V 3phase 4line 41.5kW |
| Machine weight | 16000kg | 16000kg | 16600kg |
| Machine size | 14000×6000×2400mm | 14000×6000×2400mm | 16100×6500×2400mm |
Features
-
-

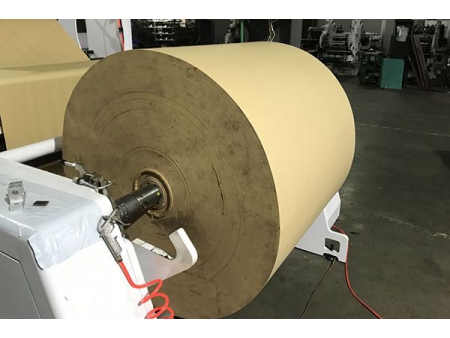

- Unwinding Unit
Hydraulic roll lifting system and tension control, alarm triggers when there is no paper;
-
-

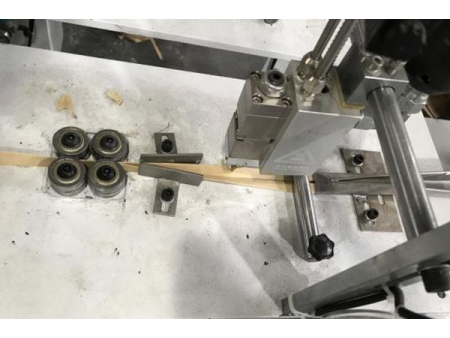

- Bag Handle Making Unit
Making paper tape handles and flat handles for paper bags;
-
-

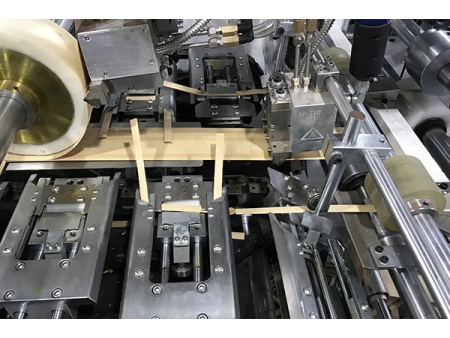

- Handle Attaching Unit
Automatically attaching flat handles on patch paper, and cutting into pieces;
