Block Bottom Paper Bag Making Machine with Flap

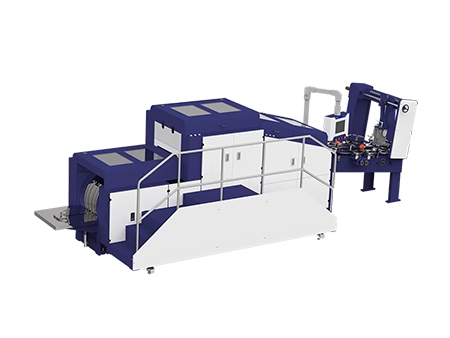

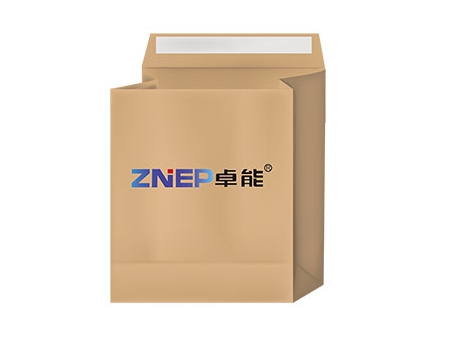

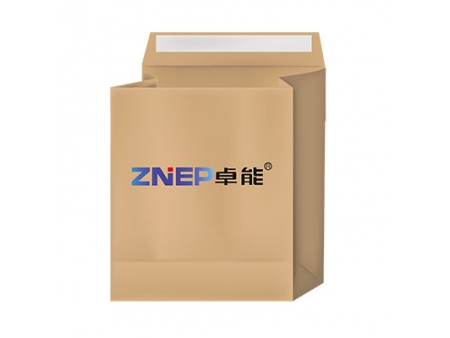

The block bottom paper bag making machine with flap is designed for producing square-bottom bags equipped with a flap. This flap is designed with a layer of release paper and adhesive. To seal the bag, users simply remove the release paper and fold over the flap for a secure closure. For easy access, the flap includes an easy-tearing line, allowing for quick opening.
This paper bag making machine efficiently completes the entire bag-making process in one pass. It starts with either plain or pre-printed paper, performs window cutting and waste suction for the flap, applies glue, and adds a pasting layer. The process includes easy tearing line perforation and precise flap positioning, followed by side gluing, tube forming, cutting, and bottom creasing. Finally, the bags are glued at the base, formed into their final shape, and collected.
| Model | ZD-FN380T | ZD-FN550T |
| Paper roll width | 580-1270 mm | 630-1730 mm |
| Paper tube length | (230 flap height)-(655 mm including flap height) | (380 flap height)-(770 mm including flap height) |
| Paper bag width | 200-380 mm | 220-550 mm |
| Bag bottom width | 75-240 mm | 80-300 mm |
| Paper gram | 60-150 g/m² | 80-150 g/m² |
| Max. diameter of paper roll | Ø1500 mm | Ø1500 mm |
| Inner diameter of paper roll | Ø76 mm | Ø76 mm |
| Flap height | 30-80 mm | 30-80 mm |
| Releasing paper width | 15-35 mm | 15-35 mm |
| Flap paper gram | 50-100 gsm | 50-100 gsm |
| Max. production speed | 120 pcs/min | 110 bags/min |
| Total power | 44 kW | 44 kW |
| Machine weight | 16000 kg | 17500 kg |
| Overall dimensions (L*W*H) | 10800*4800*2100 mm | 13300*5000*2200 mm |
-
-
- Feeding Unit

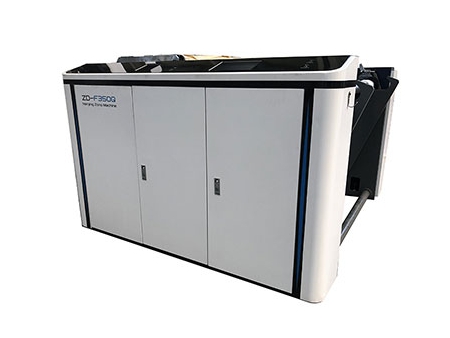

In our paper bag making machines, the feeding unit is designed for precise and reliable paper feeding into the machine. It securely holds the paper roll on an air expanding shaft, facilitating smooth feeding into the machine via a hydraulic swing arm. This unit is equipped with a smart alarm system, which will be activated when paper replenishment is required. Its advanced web guide enhances the paper's surface quality by maintaining consistent tension, crucial for optimal processing. Furthermore, switching out paper rolls is simple and efficient, thanks to an easy-to-use button system, enhancing the overall operational efficiency of the machinery.
-
-

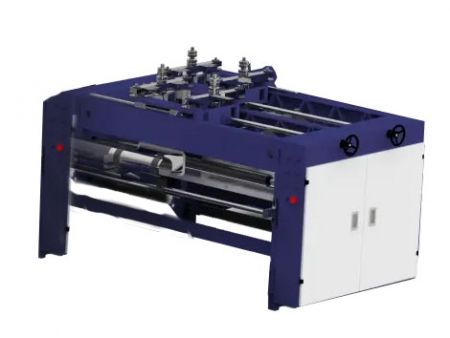

- Window cut & easy-tear line making unit
Our machine features a specialized die-cutting function that efficiently creates a window in the paper. In addition to this, it is designed to add an easy-tear line, enhancing the functionality and user experience of the final product.
-
-

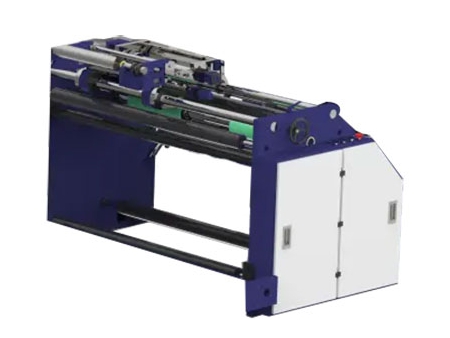

- Glue spraying & release liner pasting unit
The gluing system applies adhesive evenly to the paper. Following the gluing, the machine then accurately attaches a layer of peel and seal paper. This process ensures a secure and neat bond, preparing the paper for the next steps in the production line.
-
-

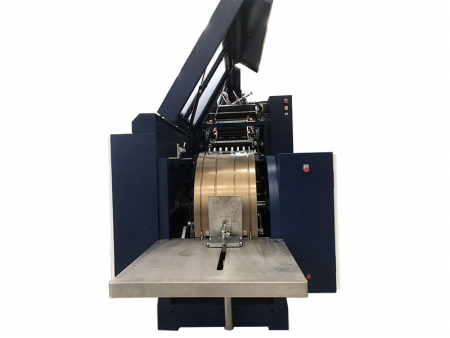

- Bag Forming Unit
In this unit, paper with side glue is skillfully shaped into tubes. These tubes are then precisely cut into individual sections as specified in the settings. Following this, the tubes are transported to a drum mechanism. This drum, equipped with a vacuum suction system, opens the tubes into a four-cornered shape. The final step in the process involves applying bottom glue, inserting the base, and shaping the bag into a square bottom, completing the formation of the paper bag.
-
-
- Bag Collecting Unit
In this unit, the final step of the production process is efficiently handled. The unit compresses the formed paper bags to ensure a uniform finish and then smoothly outputs the completed bags. An essential feature of this unit is the integrated counting system, which accurately displays the total number of bags produced.
