Block Bottom Bag Making Machine XKFD-330T/450T/540T
Request a Quote
Automatic Roll-fed Paper Bag Making Machine for Square Bottom Bag & SOS Bag with Twisted Handles
These block bottom bag making machines are automatic roll-fed bag making machines developed typically for mass production of paper shopping bags and merchandise bags with twisted handles. Controlled by Mitsubishi servo motor control system, this paper bag machine can automatically accomplish twisted handle making, handle conveying and attaching, paper bag creasing and paper bag forming in one pass. High-speed BUS based servo control ensures that the entire bag making process is carried out automatically and smoothly, greatly reducing labor cost while enhancing production efficiency.
Request a quote
Videos
Paper Bag Making Process

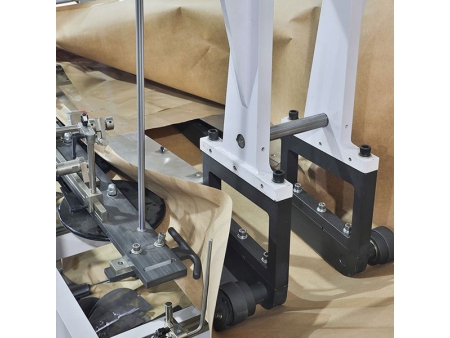

- Unwinding

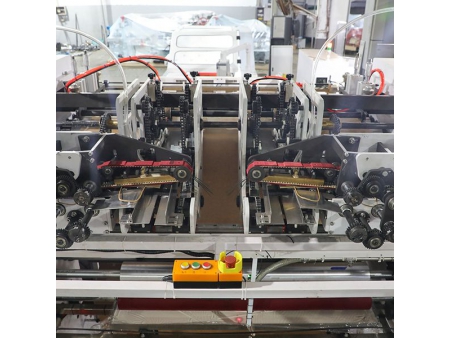

- Handle attaching
- Side gluing
- Tube forming
- Cut off
- Creasing
- Bottom opening
- Bottom gluing
- Bottom folding

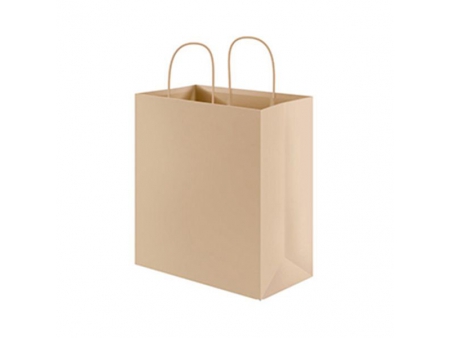

- Final bag
Specifications
- Model: XKFD-330T
- Bag tube length (mm): 270-430
- Bag length (mm）: 225-370
- Bag width（mm）: 220-330
- Bottom width（mm）: 60-180
- Side edge width（mm）: 25-30
- Bottom edge width (mm): 15-25
- Paper thickness (g/㎡): 60-160
- Paper inner core diameter (mm): Ø76 (3"）
- Paper roll diameter (mm): Ø1300
- Paper roll width (mm): 590-1050
- Bag making speed (pcs/min): 30-120
- Patch length (mm): 152.4
- Patch width (mm): 50
- Handle height (mm): 100
- Handle center distance (mm): 95
- Rope diameter (mm): Ø3-5
- Patch paper roll width(mm): 100
- Patch paper roll diameter (mm): Ø1300
- Patch paper thickness (mm): 100-135
- Air source（MPa）: 0.6
- Power supply (kW): 25.5
- Machine weight (kg）: 13500
- Machine size（mm）: 12600x5880x3150
- Model: XKFD-450T
- Bag tube length (mm): 285-430
- Bag length (mm）: 225-370
- Bag width（mm）: 250-460
- Bottom width（mm）: 80-220
- Side edge width（mm）: 30
- Bottom edge width (mm): 20-30
- Paper thickness (g/㎡): 80-160
- Paper inner core diameter (mm): Ø76 (3"）
- Paper roll diameter (mm): Ø1300
- Paper roll width (mm): 690-1390
- Bag making speed (pcs/min): 30-100
- Patch length (mm): 203.2
- Patch width (mm): 50
- Handle height (mm): 100
- Handle center distance (mm): 95
- Rope diameter (mm): Ø4-6
- Patch paper roll width(mm): 100
- Patch paper roll diameter (mm): Ø1300
- Patch paper thickness (mm): 100-135
- Air source（MPa）: 0.6
- Power supply (kW): 25.5
- Machine weight (kg）: 16000
- Machine size（mm）: 12800x6250x3350
- Model: XKFD-540T
- Bag tube length (mm):420-660
- Bag length (mm）:320-580
- Bag width（mm）:250-540
- Bottom width（mm）:120-260
- Side edge width（mm）:30-40
- Bottom edge width (mm):20-30
- Paper thickness (g/㎡):90-160
- Paper inner core diameter (mm):Ø76 (3"）
- Paper roll diameter (mm):Ø1300
- Paper roll width (mm):770-1640
- Bag making speed (pcs/min):30-80
- Patch length (mm):203.2
- Patch width (mm):50
- Handle height (mm):100
- Handle center distance (mm):95
- Rope diameter (mm):Ø4-6
- Patch paper roll width(mm):100
- Patch paper roll diameter (mm):Ø1300
- Patch paper thickness (mm):100-135
- Air source（MPa）:0.6
- Power supply (kW):30
- Machine weight (kg）:18000
- Machine size（mm）:14000x6500x3250
| Model | XKFD330T | XKFD450T | XKFD-540T |
| Bag tube length (mm) | 270-430 | 285-430 | 420-660 |
| Bag length (mm） | 225-370 | 225-370 | 320-580 |
| Bag width（mm） | 220-330 | 250-460 | 250-540 |
| Bottom width（mm） | 60-180 | 80-220 | 120-260 |
| Side edge width（mm） | 25-30 | 30 | 30-40 |
| Bottom edge width (mm) | 15-25 | 20-30 | 20-30 |
| Paper thickness (g/㎡) | 60-160 | 80-160 | 90-160 |
| Paper inner core diameter (mm) | Ø76 (3"） | Ø76 (3"） | Ø76 (3"） |
| Paper roll diameter (mm) | Ø1300 | Ø1300 | Ø1300 |
| Paper roll width (mm) | 590-1050 | 690-1390 | 770-1640 |
| Bag making speed (pcs/min) | 30-120 | 30-100 | 30-80 |
| Patch length (mm) | 152.4 | 203.2 | 203.2 |
| Patch width (mm) | 50 | 50 | 50 |
| Handle height (mm) | 100 | 100 | 100 |
| Handle center distance (mm) | 95 | 95 | 95 |
| Rope diameter (mm) | Ø3-5 | Ø4-6 | Ø4-6 |
| Patch paper roll width(mm) | 100 | 100 | 100 |
| Patch paper roll diameter (mm) | Ø1300 | Ø1300 | Ø1300 |
| Patch paper thickness (mm) | 100-135 | 100-135 | 100-135 |
| Air source（MPa） | 0.6 | 0.6 | 0.6 |
| Power supply (kW) | 25.5 | 25.5 | 30 |
| Machine weight (kg） | 13500 | 16000 | 18000 |
| Machine size（mm） | 12600x5880x3150 | 12800x6250x3350 | 14000x6500x3250 |
Xinke has been focused on the manufacture of paper packaging machine since our foundation in 2000. Our paper bag machinery can produce a huge variety of paper bags with or without bag handles, such as bakery bread bags, croissant paper bags, paper sandwich bags, kraft merchandise bags, retail bags, and much more paper carrier bags. We also provide in-line printing machine to meet your specific needs of bespoke printed paper shopping bags.
Features
- The block bottom bag making machine comes with a WEINVIEW touchscreen from Taiwan, allowing for easy operation.
- Mitsubishi PLC controller utilizing optical fiber cable ensures stable running in a high speed manner.
- The paper bag machinery adopts Mitsubishi servo motor and SICK photoelectric sensor, which ensures high bag printing quality.
- Paper roll loading is performed with a hydraulically controlled automatic lifting system. In addition, automatic tension control is realized during paper roll unwinding.
- The width of the conveying section can be adjusted according to the paper handle type.
- The paper bag making machine is designed with an automatic oil lubrication system.
