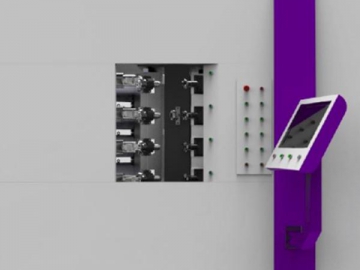

NTS2 CNC Last Turning Machine
Description
The NTS2 CNC last turning machine features two sets of cutting heads, one cutting head operates for rough machining (30 seconds) and the other cutting head performs fine processing. The whole process can be completed within 4 minutes. When replacing different blades, different materials such as polyethylene, wood, aluminum and so on can be processed with ease. The machine is designed with a touch screen to make the operation easier and more convenient.
| Dimension | 2450(L)mm*1640(W)mm*2300(H)mm |
| Processing speed | 75 rpm |
| Processing length | 50mm - 370mm |
| Actual power consumption | 12KW--16.8KW |
| Workstation | 4 (two pairs) |
| size range | ±5 size |
| System version | 5.43 |
| File format support | STL IGS MOD NC |
Features
1. NTS2 CNC last turning machine carves the front part of shoe last directly and precisely without polishing.
2. Adoption of the DOM electronic disk for the system storage carrier, which is more stable than the traditional hard disk, and the disk also has the advanced fault processing system to ensure the security of the data with confidence.
3. The NTS2 CNC last turning machine has two sets cutting head and four stations, which are able to produce two last pairs at the same time.
4. It has two sets of cutting heads, one cutting head work for rough machining (30 seconds) and the other cutting head for fine processing. Thus, the whole process will be completed within 4 minutes.
5. The fine processing has no belt and each high speed servo motor controls a cutting shaft to guarantee neat and smooth lines.
6. Accurate profiling and high precision.
7. National innovation patent certificate.
VEANSAN is a reliable CNC shoe machine designer, CNC last turning machine manufacturer since 1985. There are wood, plastic and aluminum shoe last made by the CNC last turning machine, these custom last making machines are well suitable for last modelling. To make quality shoe last, we use CNC milling and turning machines to ensure precision. Custom solutions are available as we have mission to provide quality footwear machines in client needs.
