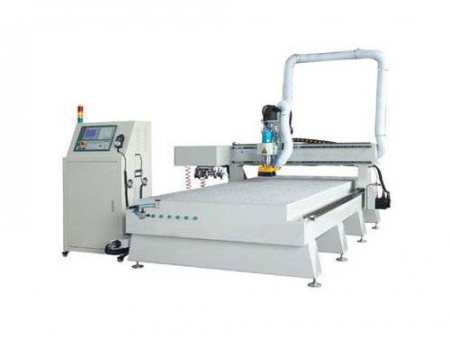

CNC Woodworking Machine
CNC woodworking machine is suitable for furniture, decoration, woodworking, instrument and wooden craft industries. It can be used to create various patterns on wood furniture, wooden door, and more.
The following two types of CNC woodworking machines are quick sellers at home and abroad.
Features
1. CNC woodworking machine can be used in advertising industry for characters cutting, plate production, LED and neon channel, and light box mold production.
2. High automation, the spindle movement is controlled by software.
3. High speed, high efficiency, the speed of running can reach 8-30 m / min.
4. High power spindle provides better operation stability.
5. This CNC woodworking machine is driven be dual-motor, providing high speed and reliable performance. So, it can work for a long time without vibration and deformation.
Specifications
| Machine Model | LT-1325 |
| X.Y working area | 1300*2500mm |
| Z working area | >120mm |
| The largest operating speed | 8-30m/min |
| Resolution | 0.01mm |
| Repeat positioning accuracy | 0.05mm |
| Feeding the greatest height | 120mm |
| Command | G code*.u00*.mmg*.plt |
| Surroundings for software | windows98/2000/xp |
| Power(not include the spindle) | 1500w |
| Work voltage | 220V/50Hz (380V/50HZ) |
| Spindle rotating speed | 24000rpm/min |
| Work Mode | Stepper |
| Optional configuration | 3kw/4.5kw/6kw China spindle,HSD spindles,DSP controller,imported linear guide, servo motor etc |
Features
1. This CNC woodworking machine is equipped with highly precise double-nut ball screw.
2. Linear square guides provide the engraving machine a long service life and high precision performance.
3. High-speed drive, with the speed 2 m/min faster than traditional models.
4. Continuous engraving after breakpoint.
5. The woodworking machine is compatible with Type3, artcarm, castmate, proe, Corelerow, Wentai, and other CAD and CAM software.
6. High power, water-cooling spindle adopts variable frequency speed control system enables the engraving machine to cut synthetic glass of 20-30mm at one stroke. So, the machine is ideal for advertising, mould making, gifts, and wood furniture industries.
Specifications
| Machine Model | LT-1530 |
| X.Y working area | 1600*3100mm |
| Z working area | >200mm |
| Table | 1700*3600mm |
| The largest operating speed | 8m-30m/min |
| Clamping type | Vacuum adsorption |
| Processor | DSP/ Speeds 100MHz |
| Interface | USB Handle |
| Command | G code *.u00*.mmg*.plt |
| Surroundings for software | windows98/2000/xp/DSP |
| Power(not include the spindle) | 1500-2000W |
| Work voltage | 380V/50Hz |
| Spindle power | 4.5KW |
| Spindle rotating speed | 18000-24000rpm/min |
| Work Mode | Stepper or servo |
| Optional configuration | 3kw/4.5kw/6kw China spindle,HSD spindles,DSP controller,imported linear guide, servo motor etc |

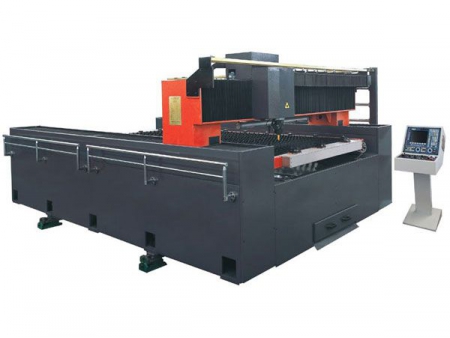

In addition to CNC woodworking engraver, we can also offer advertising CNC engraving machine, laser machine and CNC plasma cutting equipment, to name a few. As an experienced CNC engraving machine, we can also provide customization services. If you have any related need, please feel free to contact us. We are ready to serve you.
