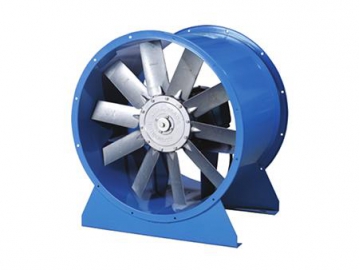

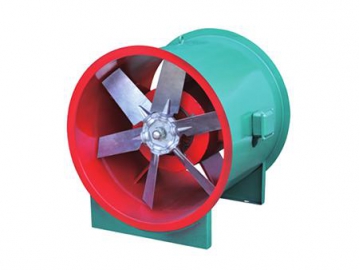

FPB Series Vaneaxial Adjustable Pitch Fan

Request a Quote

View All: http://industrialair-blower.com/3-ventilation-fans.html

Vaneaxial adjustable pitch fans are extremely durable and can run for long periods of time even when exhausting smoke. They come equipped with a special high temperature motor and an additional motor for the cooling system. Their blades are made of high-quality steel and are processed by dynamic balance correction. They are equipped with an electric control box to support automatic remote control. These vaneaxial adjustable pitch fans feature high temperature resistance, high pressure, balanced flow, and minimal vibration. They can be installed in a variety of different places, including office buildings, hotels, halls, malls, hospital, basements, parking lots, tunnels, etc. This is a workhorse fan that can do it all.

Features

The airfoil blades feature high performance and a beautiful appearance at the same time.
The vaneaxial adjustable pitch fan is processed by an electrostatic spraying process which ensures a surface color that will not fade over time.
The angle of the blades can be adjusted steplessly in a stationary state.
The vaneaxial adjustable pitch fan can be driven directly or indirectly by motor according to your requirements.
This vaneaxial fan can be customized to meet your special requirements.

Specifications of FPB Series Vaneaxial Adjustable Pitch Fan

Model		Speed (rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure(pa)	Noise dB(A)	Power（Kw）	Motor
FPB4.5-2	25°	2900	6224	1150	950	87	1.37	YXF90S-21.5
			6570	1024	721	85	1.34
			6916	876	677	84	1.31
	30°		6958	1210	1000	88	2.07	YXF90L-22.2
			7345	1094	883	87	1.94
			7732	928	714	85	1.92
	35°		7461	1260	890	90	2.17	YXF90L-22.2
			7875	1140	722	87	2.04
			8290	984	689	86	2.01
FPB5.0-2	25°	2900	7550	703	654	85	2.7	YXF100L-23.0
			11000	538	416	83	2.62
			12210	452	305	82	2.34
	30°		9570	762	668	86	3.42	YXF112M-24.0
			13640	603	420	85	3.31
			15510	443	201	84	2.84
	35°		11660	837	702	88	4.72	YXF132S1-25.5
			14630	749	533	87	4.51
			17490	570	262	86	4.23
	40°		13200	889	708	89	5.5	YXF132S1-25.5
			16940	798	507	88	5.5
			19580	655	269	88	5.37
	45°		15070	938	708	90	6.95	YXF132S2-27.5
			18370	894	515	90	6.83
			20680	750	318	89	6.85
FPB6.3-4	35°	1450	11330	394	343	81	2.16	YXF100L2-43.0
			13310	376	305	81	2.17
			14080	366	286	80	2.13
	40°		12650	420	354	83	2.57	YXF100L2-43.0
			15620	397	300	82	2.57
			19030	334	190	80	2.46
	45°		15730	420	321	83	2.97	YXF100L2-43.0
			19030	393	249	82	2.99
			21120	367	188	82	2.99
	50°		18150	407	275	83	3.67	YXF112M-44.0
			20680	401	230	83	3.77
			23320	376	158	82	3.86
FPB7.1-4	30°	1450	9140	435	414	84	2.03	YXF100L2-43.0
			16280	327	266	80	2
			19580	226	121	78	1.69
	35°		11000	461	410	85	2.6	YXF100L2-43.0

Specifications of FPB Series Vaneaxial Adjustable Pitch Fan

Model		Speed (rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure Pa(pa)	Noise dB(A)	Power（Kw）	Motor
FPB7.1-4	40°	1450	15950	465	402	85	3.43	YXF112M-44.0
			21560	426.3	311	84	3.94
			26510	317	143	83	3.21
	45°		18920	510	421	85	4.38	YXF132S-45.5
			23500	474	316	85	4.4
			29260	412	199	84	4.36
	50°		23870	504	362	86	5.38	YXF132S-45.5
			25520	496	335	85	5.41
			26840	488	309	85	5.48
FPB8.0-4	35°	1450	19800	617	556	88	5.83	YXF132M-47.5
			22990	603	523	88	5.93
			24530	582	490	87	5.91
	40°		24090	635	545	89	7.4	YXF132M-47.5
			25300	630	531	89	7.47
			27280	620	506	88	7.5
	45°		30360	651	509	90	9.46	YXF160M-411
			32890	635	469	89	9.6
			33440	633	461	89	9.53
FPB8.0-6	35°	960	13860	249	218	79	1.67	YXF112M-62.2
			18156	202	150	77	1.58
			21000	149	77.6	76	1.42
	40°		17010	254	207	79	2.13	YXF112M-62.2
			20895	226	156	79	2.06
			24255	172	77.6	77	1.93
	45°		21210	285	185	80	2.69	YXF132M-47.5
			23835	241	150	80	2.79
			26250	214	103	79	2.64
FPB9.0-4	30°	1450	23870	562	510	88	6.18	YXF132M-47.5
			26180	539	476	86	6.15
			35090	390	277	85	5.36
	35°		29810	598	516	89	7.5	YXF132M-47.5
			37290	559	432	88	7.49
			41140	485	328	87	7.48
	40°		34980	637	525	90	10.7	YXF160M-411
			43780	622	448	89	10.9
			50270	512	280	88	10
	45°		43450	686	513	91	13.6	YXF160L-415
			50160	650	420	91	13.7
			55660	581	298	90	13.2
	50°		47960	714	503	92	16.6	YXF180M-418.5

Specifications of FPB Series Vaneaxial Adjustable Pitch Fan

Model		Speed (rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure(pa)	Noise dB(A)	Power（Kw）	Motor
FPB9.0-6	35°	1450	18270	267	233	81	2.35	YXF132S-63.0
			23835	247	186	80	2.29
			28245	176	95	77	2.2
	40°		22890	282	228	81	3.12	YXF132M-64.0
			27825	272	194	81	3.17
			31500	228	128	80	2.93
	45°		27300	304	229	83	4.02	YXF132M2-65.5
			31605	290	190	82	4.06
			36540	243	108	81	3.85
FPB10.0-4	35°	1450	34320	645	574	91	10.6	YXF160M-411
			39160	650	558	90	10.7
			45540	600	476	89	10.6
	40°		49830	707	558	93	14.8	YXF160L-415
			55330	677	494	92	14.7
			61270	607	381	92	14.4
	45°		60500	763	543	94	19.3	YXF180L-422
			66000	728	465	94	19.4
			71720	676	367	93	18.8
	50°	960	76780	757	403	95	24	YXF200L-430
			82830	705	293	94	24
			88000	660	201	94	23.6
FPB10.0-6	30°		17010	260	241	80	21.7	YXF132S-63.0
			22785	221	187	79	21
			25410	190	147	78	2.03
	35°		22365	278	245	82	3	YXF132M-64.0
			28665	256	202	81	2.98
			33705	199	125	79	2.71
	40°	1450	30450	303	242	84	4.16	YXF132M2-65.5
			36750	275	186	83	4.13
			42000	220	103	81	3.79
	45°		34650	330	254	85	5.4	YXF132M2-65.5
			42315	307	189	84	5.45
			48090	258	105	83	5.16
	50°		39060	351	250	86	6.66	YXF160M-67.5
			48930	320	162	85	6.77
			55125	280	79.3	85	6.63
FPB12.5-6	40°		37905	464	424	88	9.76	YXF160L-611
			55860	418	334	87	10.4
			64996	356	242	86	10.4
	45°		47460	490	428	89	13	YXF160L-615
			64785	471	357	88	14
			75390	421	268	88	14.4
FPB12.5-6	50°		61110	491	390	90	16.7	YXF200L-618.5
			75390	500	346	90	17.8
			78015	497	333	90	18.1

Specifications of FPB-S Series Vaneaxial Adjustable Pitch Fan

Model		Speed (rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure(pa)	Noise dB(A)	Power(Kw)	Motor
FPB5.0-S	20°	2900/1450	7550	703	654	85	2.5/0.25	YDTXF100L-2/4 3.1/0.8
			11000	638	416	83
			12210	452	305	82
			3307	145	133	68
			5292	108	788	65
			6035	75	367	64
	25°		9570	762	668	86	3.25/0.35	YDTXF112M-2/4 4.4/1.1
			13640	603	420	85
			15510	443	201	84
			4641	158	136	69
			6331	127	84	67
			7182	95	40	67
	30°		11660	837	702	88	4.42/0.45	YDTXF132S-2/4 5.9/1.4
			14630	749	533	87
			17490	570	262	86
			5838	172	137	70
			7255	145	89	69
			8390	107	32.7	68
	35°		13200	889	708	89	5.5/0.58	YDTXF132S-2/4 5.9/1.4
			16940	798	507	88
			19580	655	269	88
			6352	186	144	71
			8463	152	76.3	71
			8966	128	35.2	71
	40°		15070	938	708	90	6.8/0.7	YDTXF132S-2/4 8.0/2.0
			18370	894	515	90
			20680	750	318	89
			6825	196	147	72
			8547	178	101	72
			9754	148	47.2	71
FPB6.3-S	35°	1450/960	10300	376	300	81	2.07/0.34	YDT100L-4/6 2.2/0.70
			12100	359	299	81
			12800	349	289	80
			5720	113	100	68
			8400	102	98	67
			10000	80.6	70	66

Specifications of FPB-S Series Vaneaxial Adjustable Pitch Fan

Model		Speed(rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure(pa)	Noise dB(A)	Power(Kw)	Motor
FPB6.3-S	40	1450/960	11500	99	328	83	3.15/0.76	YDT100L-4/6 2.5/0.9
			14200	379	215	82
			17300	316	290	80
			7700	122	100	69
			9470	111	98	68
			11000	95.5	82	68
	45		14300	400	320	83	4.28/1.05	YDTXF112M-4/6 3.2/1.104
			17300	375	312	82
			19200	360	298	82
			9020	124	100	69
			10500	117	98	69
			12100	100	78	69
FPB7.1-S	30	1450/960	12000	415	360	84	2.03/0.57	YDTXF100L-4/6 2.2/0.70
			16200	312	289	80
			18400	206	180	78
			8300	161	145	71
			10000	140	110	70
			11500	109	89	69
	35		14300	419	360	85	2.61/0.76	YDT100L-4/6 2.5/0.9
			19600	337	280	82
			22000	264	210	80
			10400	173	123	73
			12700	150	100	72
			14200	121	98	71
	40		14500	443	390	85	3.49/0.96	YDT112M-4/6 3.2/1.104
			19600	406	350	84
			24100	302	250	83
			11800	189	139	74
			14400	168	119	74
			16400	144	100	73
	45		17200	486	398	85	4.49/1.14	YDT132S-4/6 4.7/1.5
			23000	452	378	85
			26600	393	368	84
			12400	198	156	76
			16400	177	146	75
			18600	159	136	74
FPB8.0-S	35	1450/960	19800	588	530	88	5.93/1.67	YDTXF132M-4/6 6.7/2.2

Specifications of FPB-S Series Vaneaxial Adjustable Pitch Fan

Model		Speed(rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure(pa)	Noise dB(A)	Power(Kw)	Motor
FPB8.0-S	40	1450/950	24090	605	519	89	7.58/2.13	YDTXF160M-4/6 9.5/3.1
			25300	600	506	89
			27280	591	482	88
			17010	254	207	79
			20895	226	156	79
			24255	172	77.6	77
	45		30360	620	485	90	9.53/2.7	YDTXF160M-4/6 9.5/3.1
			32890	605	447	89
			33440	603	439	89
			21210	258	185	80
			23835	241	150	80
			26250	214	103	79
FPB9.0-S	35	1450/950	29810	598	516	89	7.94/2.35	YDTXF160M-4/6 9.5/3.
			37290	559	432	88
			41140	485	328	87
			18270	267	233	81
			23835	247	186	80
			28245	176	95	77
	40		34980	637	525	90	10.9/3.17	YDTXF160L-4/6 12/4.0
			43780	622	448	89
			50270	512	280	88
			22890	282	228	81
			27825	272	194	81
			31500	228	128	80
FPB10.0-S	35	1450/950	34320	645	574	91	10.7/3.0	YDTXF160L-4/6 12/4.0
			39160	650	558	90
			45540	600	476	89
			22365	278	245	82
			28665	256	202	81
			33705	199	128	79
	40		49830	707	558	93	14.8/4.16	YDTXF180M -4/6 15.5/5.1
			55330	677	494	92
			61270	607	381	92
			30450	303	242	84
			36750	275	186	83
			42000	220	102	81
	45		60500	763	543	94	19.4/5.45	YDTXF200L-4/6 24/8.5 6.7/2.2
			66000	728	465	94
			71720	676	367	93
			34650	330	254	85
			42315	307	189	84
			49090	258	105	83

Specifications of FPB-I Series Vaneaxial Adjustable Pitch Fan

Model	Speed(rpm)	Airflow (m3/h)	Pressure(pa)	Motor		Noise dB(A)	Weight (kg)
				Model	Power(Kw)
4.5	1450	4557	209	YXF801-4	0.55	73	65
		4045	218
		3397	267
5	1450	7438	222	YXF90S-4	1.1	77	82
		6669	280
		5257	328
6	1450	10005	202	YXF90L-4	1.5	79	110
		8905	264
		8126	327
7	1450	18805	331	YXF100L-4	3	82	207
		15321	372
		11785	472
7	960	12055	126	YXF90L-6	1.1	74	170
		10145	164
		7804	208
8	1450	41267	562	YXF160L-4	11	91	295
		35386	669
		28153	874
8	960	25472	195	YXF132M-6	4	82	220
		22429	294
		18636	384
9	1450	56671	646	YXF180M-4	18.5	86	415
		51595	847
		48049	988
9	960	34211	284	YXF132M-6	5.5	82	285
		32061	372
		27179	432
10	1450	66546	706	YXF180L-4	22	93	625
		61326	753
		55763	806
10	960	44059	290	YXF160M-6	7.5	86	425
		40603	331
		36921	373
11.2	1450	73606	711	YXF180L-4	22	94	690
		68634	791
		63817	845
11.2	960	48734	312	YXF160L-6	11	86	545
		46104	348
		43577	378
12.5	960	85728	765	YXF225M-6	30	95	720
		81098	839
		76036	888
12.5	720	64297	431	YXF200L-8	15	94	565
		60825	473
		57231	491
13	960	95425	787	YXF225M-6	30	95
		90275	859
		84938	906
13	720	71570	443	YXF200L-8	15	91
		67707	484
		63704	560

Specifications of FPB-I Series Vaneaxial Adjustable Pitch Fan

Model	Speed(rpm)	Airflow (m3/h)	Pressure(pa)	Motor		Noise dB(A)	Weight (kg)
				Model	Power(Kw)
7	1450	18805	331	YXF132S-6/4	3/4	82	210
		15324	372
		11785	472
	960	12055	126			73
		10145	164
		7804	208
8	1450	41261	562	YXF160L-6/4	9/11	91	295
		35385	669
		25183	874
	960	25472	195			82
		22429	294
		18641	384
9	1450	56671	646	YXF180L-4/6	18/6.5	92	415
		51595	847
		48049	983
	960	34211	284			86
		32061	372
		27179	432
10	1450	66546	706	YXF200L-4/6	24/8.5	93	595
		61326	753
		55763	806
	960	44059	230			86
		40603	331
		36921	373
11.2	1450	73606	711	YXF200L-4/6	24/8.5	94	628
		68634	791
		63817	845
	960	48734	312			86
		46104	348
		43577	372
12.5	960	85728	765	YXF225-6/8	30/15	95	695
		81098	839
		76036	888
	720	61297	431			91
		60825	473
		57231	500
13	960	95425	787	YXF225M-6/8	30/15	95	725
		90276	859
		84938	906
	720	71570	443			91
		67707	484
		63704	510

Specifications of FPB-I Series Vaneaxial Adjustable Pitch Fan

Model	Speed(rpm)	Airflow (m3/h)	Pressure(pa)	Motor		Noise dB(A)	Weight (kg)
				Model	Power(Kw)
4	2900	9232	1030	YXF132S-2	5.5	76	108
		8356	1161
		6851	1365
		6132	1389
		5495	1421
	1450	4619	259	YXF802-4	0.75	64	65
		4181	292
		3478	343
		3069	349
		2760	357
	960	3060	114	YS712-6	0.25	62	56
		2770	129
		2304	151
		2033	154
		1822	158
4.5	2900	13113	1303	YXF132-2	7.5	80	130
		11896	1468
		9894	1727
		8729	1757
		7876	1798
	1450	6574	327	YXF90S-4	1.1	67	85
		5950	369
		4950	433
		4367	441
		3913	451
	960	4354	145	YXF801-6	0.37	63	78
		3941	163
		3279	191
		2893	194
		2591	198
5	2900	18027	1608	YXF160M2-2	15	81	210
		16316	1812
		13570	2132
		11972	2169
		10727	2219
	1450	9096	414	YXF100L1-4	2.2	69	110
		8161	455
		6743	534
		5989	544
		5366	556
	960	5971	178	YXF90S-6	0。75	65	101
		5405	200
		4496	235
		3967	239
		3554	245

Specifications of FPB-I Series Vaneaxial Adjustable Pitch Fan

Model	Speed(rpm)	Airflow (m3/h)	Pressure(pa)	Motor		Noise dB(A)	Weight (kg)
				Model	Power(Kw)
5.5	1450	11998	488	YXF100L1-4	3	74	135
		10860	550
		9033	646
		7969	657
		7141	672
	960	7946	215	YXF90L-6	1.1	64	122
		7192	242
		5982	284
		5278	289
		4729	296
	720	5690	122	YXF90L-8	0.55	64	135
		5396	134
		4488	161
		3958	164
		3548	167
6	1450	15576	580	YXF132S-2	5.5	76	189
		14098	654
		11726	769
		10345	782
		9269	800
	960	10314	256	YXF100L-6	1.5	65	155
		9335	288
		7765	338
		6851	344
		6138	352
	720	7737	144	YXF100L1-8	0.75	65	160
		7003	163
		5825	191
		5139	194
		4605	199
6.5	1450	19802	681	YXF132M-4	7.5	77	225
		17923	767
		14907	892
		13151	918
		11783	936
	960	13112	300	YXF112M-6	2.2	70	190
		11868	337
		9871	396
		8709	403
		7803	413
	720	9835	169	YXF100L2-8	1.1	67	195
		8902	191
		7404	224
		6533	228
		5854	233
