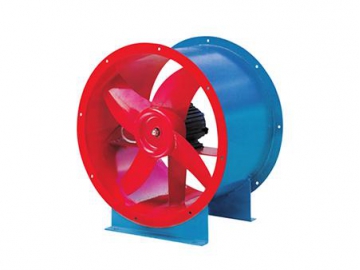

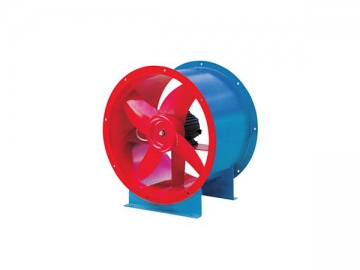

T35-11 Series Direct Drive Axial Flow Fan

Request a Quote

View All: http://exhaustfancn.com/1-4-3-direct-drive-axial-fan.html

The direct drive axial flow fan is designed for exhausting air in environments where the air is non-corrosive, nonflammable, non-explosive, and with a low dust concentration. It is recommended that the fan be used in conditions where the temperature is not more than 60℃. This axial flow fan is widely applied for ventilation, space heating, and cooling in places, such as factories, warehouses, offices, residential buildings, etc. It can be installed in series within a certain distance of other fans to increase pressure in different parts of the ductwork. Its housing can be dismantled to be used as a free fan.

This series of axial flow fans can be produced with 13 different impeller diameters. The fan has 4 blades with degree options of 15°, 20°, 25°, 30°, and 35°. Its capacity is 826-67892m³/h and pressure is 39Pa-474Pa.

Features

The direct drive axial flow fan has a more reasonable structure: the round fan wheel can reduce the loss of flow, and the root of the blade is extremely strong.
Improved performance. The total pressure efficiency is improved and noise (specific a-weighted sound level) is reduced to 3.6db (A).

Specifications

Model	Speed(rpm)	Impeller Degree	Airflow (m3/h)	Pressure(pa)	Motor
Model	Speed(rpm)	Impeller Degree	Airflow (m3/h)	Pressure(pa)	Model	Power(Kw)
2.8	2900	15	1682	155	YSF-5622	0.12
		20	2210	171	YSF-5632	0.18
		25	2739	176	YSF-5632	0.18
		30	2979	190	YSF-5632	0.18
		35	3266	237	YSF-6322	0.25
	1450	15	843	39	YSF-5014	0.025
		20	1108	44	YSF-5014	0.025
		25	1373	45	YSF-5014	0.025
		30	1493	49	YSF-5024	0.04
		35	1637	60	YSF-5024	0.04
3.15	2900	15	2386	196	YSF-6312	0.18
		20	3135	217	YSF-6322	0.25
		25	3886	223	YSF-6332	0.37
		30	4224	242	YSF-6332	0.37
		35	4605	300	YSF-7122	0.55
	1450	15	1192	49	YSF-5014	0.025
		20	1568	53	YSF-5024	0.04
		25	1943	55	YSF-5024	0.04
		30	2113	59	YSF-5614	0.06
		35	2318	74	YSF-5624	0.09
3.55	1450	15	3434	246	YSF-7112	0.37
		20	4551	276	YSF-7122	0.55
		25	5594	284	YSF-7122	0.55
		30	6084	306	YSF-7132	0.75
		35	6673	379	YSF-8022	1.1
	960	15	1714	61	YSF-5024	0.04
		20	2252	68	YSF-5614	0.06
		25	2792	70	YSF-5624	0.09
		30	3037	75	YSF-5624	0.09
		35	3330	101	YSF-6314	0.12
4	960	15	4902	315	YSF-7122	0.55
		20	6442	352	YSF-7122	1.1
		25	7983	361	YSF-8022	1.1
		30	8683	388	YSF-8022	1.1
		35	9523	482	YSF90S-2	1.5
	960	15	2454	79	YSF-5624	0.09
		20	3226	88	YSF-6314	0.12
		25	3998	90	YSF-6314	0.12
		30	4348	97	YSF-6324	0.18
		35	4770	121	YSF-7114	0.25

Model	Speed(rpm)	Impeller Degree	Airflow (m3/h)	Pressure(pa)	Motor
Model	Speed(rpm)	Impeller Degree	Airflow (m3/h)	Pressure(pa)	Model	Power(Kw)
4.5	1450	15	3496	100	YSF-6314	0.12
		20	4594	111	YSF-6324	0.18
		25	5693	114	YSF-7114	0.25
		30	6191	122	YSF-7124	0.37
		35	6791	153	YSF-7124	0.37
5	1450	15	4794	123	YSF-7114	0.25
		20	6302	138	YSF-7124	0.37
		25	7808	141	YSF-7124	0.37
		30	8494	152	YSF-8014	0.55
		35	9316	189	YSF-8024	0.75
	960	15	3205	53	YSF-8026	0.37
		20	4212	59	YSF-8026	0.37
		25	5219	61	YSF-8026	0.37
		30	577	65	YSF-8026	0.37
		35	6226	83	YSF-8026	0.37
5.6	1450	15	6727	154	YSF-7124	0.37
		20	8840	171	YSF-8014	0.55
		25	10954	176	YSF-8024	0.75
		30	11923	190	YSF90S-4	1.1
		35	13068	237	YSF90S-4	1.1
	960	15	4447	67	YSF-8026	0.37
		20	5845	74	YSF-8026	0.37
		25	7243	77	YSF-8026	0.37
		30	7878	83	YSF-8026	0.37
		35	8640	103	YSF-8026	0.37
6.3	1450	15	9581	196	YSF-8024	0.75
		20	12592	217	YSF90S-4	1.1
		25	15603	223	YSF90S-4	1.5
		30	16972	241	YSF90L-4	1.5
		35	18615	300	YSF90L-4	2.2
	960	15	6343	86	YSF-8026	0.37
		20	8336	96	YSF-8026	0.37
		25	10331	98	YSF-8026	0.37
		30	11236	106	YSF90S-6	0.75
		35	12324	131	YSF90S-6	0.75
