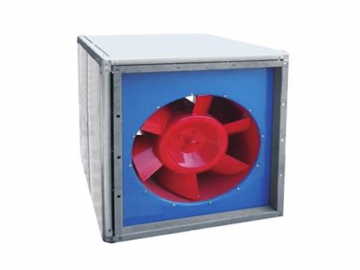

Vaneaxial fans are commonly applied for universal ventilation and exhaust systems for smoke in high-temperature environments. They feature a fully enclosed high-temperature resistant motor and a special cooling system. These vaneaxial fans can run in environments as hot as 280℃ for more than 30 minutes and in environments up to 100℃ for more than 20 hours. These are heavy-duty fans that meet fire protection requirements of GB50045-95 and GB50016-006 standards. They are compact and can be conveniently installed onto walls or connected to ventilation ductwork. This series of vaneaxial fan is suitable for use in high-rise buildings, underground garages, tunnels, and more.

HTF series vaneaxial fan includes:

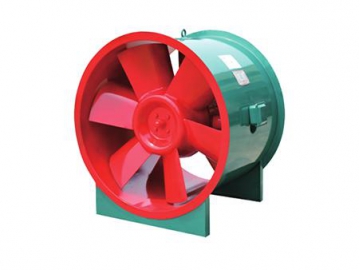

The HTF-I universal smoke exhaust vaneaxial fan is equipped with an axial flow blade.

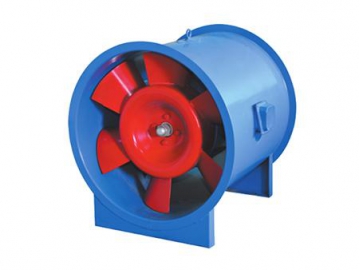

Our HTF-II medium pressure smoke exhaust vaneaxial fan is an oblique flow fan which features high pressure and low noise. Each model of HTF-II series provides two or three different speeds for you to choose from.
The HTF-II high pressure smoke exhaust vaneaxial fan features high pressure and high airflow.

HTF series vaneaxial fans can be equipped with a two-speed motor that can be used for both common ventilation and smoke exhaust in the case of fire.

Specifications of HTF-I-D Series Vaneaxial Fan

Model	Impeller Diameter(mm)	Airflow (m3/h)	Pressure(pa)	Speed (rpm)	Motor Power（Kw）	Noise dB(A)	Weight (kg)
3.5	350	6244	209	2900	1.1	≤76	65
		5610	357
		5180	375
		4353	492
		3570	563
4	400	6654	391	2900	1.5	≤78	75
		6244	432
		5337	493
		4965	515
		4616	541
4.5	450	8141	518	2900	2.2	≤79	90
		7024	532
		6004	600
		5551	649
		5123	712
5	500	10020	520	2900	3	≤80	110
		9735	563
		9038	622
		8201	694
		6953	767
5.5	550	12947	547	2900	4	≤86	115
		12240	604
		11138	656
		9247	706
		8421	771
6	600	16412	520	2900	5.5	≤86	164
		16032	563
		15404	622
		14588	694
		13461	775
6.5	650	22085	522	1450	5.5	≤88	170
		20176	569
		18360	632
		17462	681
		16579	716
7	700	24868	622	1450	7.5	≤88	208
		24041	643
		22888	668
		21200	690
		19286	743
8	800	32049	612	1450	7.5	≤89	216
		30971	648
		29755	674
		29170	706
		26532	737
9	900	34180	573	1450	11	≤90	250
		33620	641
		32943	681
		30957	780
		28063	857
10	1000	46593	643	1450	11	≤90	300
		43819	678
		4080	704
		38964	751
		35700	785
11	1100	54189	526	1450	15	≤92	380
		52583	571
		51131	660
		49470	704
		47591	741
12	1200	67179	594	960	18.5	≤93	480
		64018	636
		60486	694
		59815	726
		58903	755
13	1300	76202	612	960	18.5	≤94	520
		72542	685
		66677	724
		62885	780
		57152	823
14	1400	87221	624	960	22	≤95	590
		80614	690
		75593	732
		70199	783
		64578	828
15	1500	95676	635	960	22	≤95	650
		92463	690
		87837	724
		83881	787
		77562	835
16	1600	122638	665	960	30	≤96	740
		115768	718
		111880	777
		101496	859
		93034	930

Specifications of HTF-I-S Series Vaneaxial Fan

Model	Impeller Diameter(mm) (mm)	Airflow (m3/h)	Pressure(pa)	Speed (rpm)	Motor Power（Kw）	Noise dB(A)	Weight (kg)
5	500	10020	520	2900	3/2.4	≤80	115
		9735	563
		9038	622
		8201	694
		6953	767
		5010	130	1450		≤75
		4867	141
		4520	156
		4100	173
		3478	192
6	600	16412	520	2900	5.5/4.5	≤86	165
		16032	563
		15404	622
		14588	694
		13461	775
		8206	130	1450		≤75
		8016	141
		7702	156
		7294	173
		6731	194
7	700	24868	622	1450	8/6.5	≤88	220
		24041	643
		22888	668
		21200	690
		19286	743
		16464	272	960		≤80
		15917	282
		15162	293
		14133	302
		12768	325
8	800	32049	612	1450	8/6.5	≤89	230
		30971	648
		29755	674
		29170	706
		26532	737
		21216	268	960		≤80
		20505	284
		19700	296
		19313	309
		17566	323
9	900	34180	573	1450	11/9	≤90	250
		33620	641
		33657	681
		30957	780
		28063	857
		22630	251	960		≤81
		22258	281
		21811	299
		20496	342
		18580	375
10	1000	46593	643	1450	11/9	≤90	305
		43819	678
		40800	704
		38964	751
		35700	785
		30860	282	960		≤81
		29011	297
		27013	308
		25797	328
		24499	345
11	1100	54189	526	1450	16/13	≤92	390
		52583	592
		51131	660
		49470	704
		47591	741
		40641	296	960		≤83
		39437	333
		38348	371
		37103	395
		35694	416
12	1200	67179	594	960	17/8.5	≤93	485
		64018	636
		60486	694
		59815	726
		56764	755
		50384	334	720		≤83.5
		48013	358
		45365	391
		44862	408
		44177	424
13	1300	76202	612	960	17/8.5	≤94	525
		72542	685
		66677	724
		62885	780
		57152	823
		57152	345	720		≤84.4
		54407	386
		50008	407
		47929	439
		42863	463
14	1400	87221	624	960	21/11	≤95	615
		80614	690
		75593	732
		70199	783
		64578	828
		65416	351	720		≤85
		60461	388
		56695	396
		52649	441
		48434	467
15	1500	95676	635	960	21/11	≤95	655
		92463	690
		87837	724
		83881	787
		77562	835
		71757	357	720		≤85
		69348	388
		65878	409
		62911	443
		58172	470
16	1600	122638	665	960	30/15	≤96	780
		115768	718
		111880	777
		101496	859
		93034	930
		91979	373	720		≤86
		86818	404
		83910	437
		76123	482
		69776	523

Specifications of HTF-II-D Series Vaneaxial Fan

Model	Impeller Diameter(mm)	Airflow (m3/h)	Pressure(pa)	Speed (rpm)	Motor Power（Kw）	Noise dB(A)	Weight (kg)
4	400	7739	1109	2900	4	≤79	85
		7482	1190
		7010	1308
		6611	1393
		6182	1434
4.5	450	9541	1072	2900	5.5	≤80	110
		8598	1128
		7500	1188
		5894	1251
		5102	1317
5	500	13089	831	2900	5.5	≤82	125
		11793	1078
		10289	1113
		8084	1247
		6999	1409
5.5	550	17131	891	2900	7.5	≤85	135
		15589	991
		14185	1102
		12766	1362
		11489	1513
6	600	20942	973	2900	11	≤88	170
		20127	1244
		19276	1417
		17434	1492
		15910	1571
6.5	650	25696	1054	1450	11	≤88	190
		24325	1110
		23109	1169
		21953	1227
		20855	1295
7	700	32120	1223	1450	15	≤89	215
		30407	1287
		28886	1356
		27442	1427
		26069	1502
8	800	38186	1001	1450	18.5	≤89	250
		36735	1112
		35183	1235
		31820	1373
		29038	1526
9	900	45378	1132	1450	22	≤91	300
		43108	1258
		40953	1398
		38905	1443
		37002	1520
10	1000	54775	1004	1450	22	≤92	330
		52643	1116
		50420	1239
		45600	1377
		41614	1466
11	1100	61298	1193	960	30	≤91	520
		58233	1257
		55321	1322
		52554	1392
		49927	1466
12	1200	71502	1229	960	30	≤92	670
		64352	1293
		57917	1362
		52124	1434
		46912	1510
13	1300	90543	1010	960	37	≤93	730
		80580	1122
		71533	1247
		63830	1386
		57446	1540
14	1400	92064	1049	960	45	≤94	840
		85029	1166
		78409	1295
		69513	1439
		59169	1599
15	1500	118850	930	960	45	≤95	880
		107936	1073
		98377	1191
		92269	1304
		84298	1440
16	1600	143908	928	720	55	≤94	96
		124595	1085
		114660	1209
		101672	1324
		89009	1494

Specifications of HTF-II-S Series Vaneaxial Fan

Model	Impeller Diameter(mm)	Airflow (m3/h)	Pressure(pa)	Speed (rpm)	Motor Power（Kw）	Noise dB(A)	Weight (kg)
6	600	13228	591	1450	4.7/1.5	≤84	210
		12360	644
		10335	814
		7646	855
		6759	867
		8758	259	960		≤75
		8183	282
		6842	357
		5377	374
		4475	379
7	700	27729	804	1450	11/9	≤89	270
		25909	877
		21664	1108
		17027	1164
		14168	1180
		18358	352	960		≤80
		17153	384
		14342	486
		11273	510
		9380	517
8	800	36089	843	1450	16/13	≤90	310
		32337	1060
		29427	1105
		23282	1244
		18044	1330
		23892	369	960		≤81
		21410	464
		19482	483
		15414	546
		11946	582
9	900	45378	1132	1450	22/18.5	≤91	340
		43108	1258
		40953	1398
		38905	1443
		37002	1520
		30040	496	960		≤82
		28538	551
		27111	612
		25755	632
		24495	665
10	1000	54775	1004	1450	22/18.5	≤92	390
		52643	1116
		50420	1239
		45600	1377
		41614	1466
		36261	440	960		≤83
		34849	489
		33377	543
		30187	603
		27548	642
11	1100	61298	1193	960	30/15	≤91	630
		58233	1257
		55321	1322
		52554	1392
		49927	1466
		45973	671	720		≤82
		43674	707
		41491	744
		39416	783
		37445	824
12	1200	71502	1229	960	30/15	≤92	750
		64352	1293
		57917	1362
		52124	1434
		46912	1510
		53627	692	720		≤83
		48264	727
		43437	766
		39093	807
		35184	849
13	1300	90543	1010	960	37/18	≤93	850
		80580	1122
		71533	1247
		63830	1386
		57446	1540
		67908	568	720		≤84
		60435	630
		53650	702
		47873	779
		43085	866
14	1400	92064	1049	960	45/22	≤94	930
		85029	1166
		78409	1295
		69513	1439
		59169	1599
		69048	590	720		≤85
		63772	656
		58807	728
		52135	810
		44376	900
15	1500	118850	930	960	45/22	≤95	970
		107936	1073
		98377	1191
		92269	1304
		84298	1440
		89138	523	720		≤86
		80952	604
		73783	670
		69202	733
		63224	810

Specifications of HTF-III-D Series Vaneaxial Fan

Model	Impeller Diameter(mm) (mm)	Speed (rpm)	Airflow (m3/h)	Pressure(pa)	Static Pressure(pa)	Power（Kw）	Noise dB(A)
3.5	350	1450	1750	51	42	0.37	≤70
			2260	84	71
			2510	138	116
4	400	1450	2700	150	134	0.55	≤71
			2400	110	85
			1970	90	55
4.5	450	1450	4250	103	73	0.75	≤73
			3900	138	113
			3060	168	152
5	500	1450	4912	127	100	1.1	≤78
			4431	153	131
			3410	188	175
6	600	1450	8045	127	92	1.5	≤79
			7551	153	122
			6599	190	166
6.5	600	960	10826	128	104	2.2	≤81
			9455	141	122
			8127	176	143
7	700	960	16141	267	190	3	≤84
			14865	287	222
			12518	319	273
8	800	960	20800	263	188	3	≤85
			19314	290	225
			17222	317	265
9	900	960	22186	246	192	4	≤86
			21383	293	243
			18216	368	332
10	1000	960	30255	276	210	5.5	≤87
			26483	302	251
			24019	338	296
11	1100	960	38664	326	252	5.5	≤88
			37596	364	294
			36375	387	322
12	1200	730	47072	351	273	11	≤90
			44475	383	314
			43311	416	355
13	1300	730	56031	338	258	11	≤92
			49027	399	338
			42023	454	409
15	1500	730	70350	350	279	15	≤93
			64586	401	341
			57031	461	141
