High Flow Filter Cartridge, PHFLH Series
Request a Quote

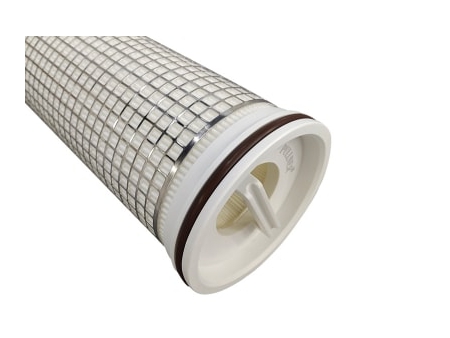

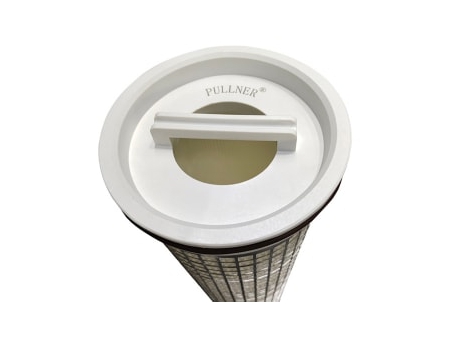

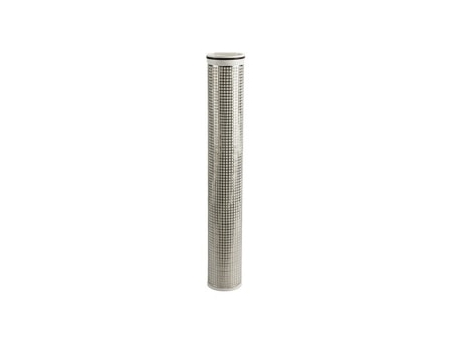

With a 6" (152.4mm) large diameter design, single open end, and absence of a central support frame, this high flow water filter cartridge provides efficient filtration with fluid flowing from the inside to the outside.
The filter medium and support structure are made of high-temperature resistant materials, enabling long-term use at temperatures up to 120°C. The cartridge's end cap and filter layer are heat welded, ensuring ideal chemical compatibility and making it suitable for a wide range of applications.
Materials of Construction
| Filter Medium | Polyester Fiber |
| Support/Drainage | Nylon |
| O-ring | Fluoro rubber |
| Outer Frame | SS304 |
| End Cap | Glass fiber reinforced polypropylene |
Specifications
| Diameter | 6"(152.4mm) |
| Length | 20"/40"/60" |
| Filtration Area | 7m2/40" |
| Micron Rating | 1~20μm |
| Filtration Area | 7m2/40" |
| Max. Operating Temperature | PP: 82℃ PBT: 120℃ |
| Max. differential pressure | PP: 3.44bar/ 21℃ PBT: 3.44bar / 120℃ GF: 3.44bar / 121℃ |
Applications
- High-temperature condensate water filtration and treatment.
- High-temperature process water filtration and treatment.
