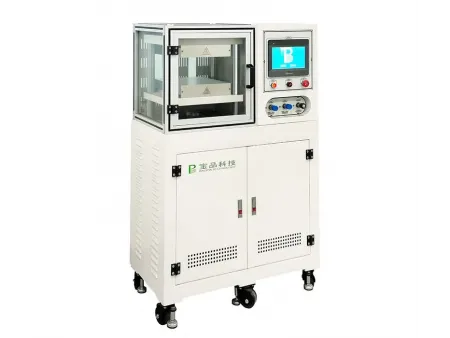

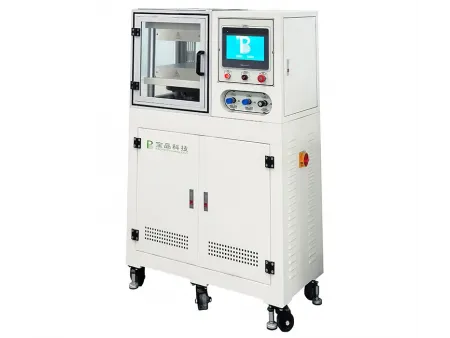

BP-8170-B Laboratory Hydraulic Press
Laboratory platen presses for compression molding and vulcanization of plastic, rubber and other polymers for testing purposes
- 20 Ton Capacity (others on request)
- PLC control
- Single set of pressing platens
- Integrated electric heating and water cooling on both upper and lower platens
The hydraulic press is designed to compress raw materials placed in the mold, using electric heating platens to apply precise pressure and temperature, forming the material for testing. This process serves as a reliable basis for large-scale production in the factory. This vulcanizing press is equipped with a PLC programmable color touch screen controller, offering an intuitive human-machine interface for setting pressure, temperature, time, and exhaust cycles. The vulcanization process is displayed and monitored in real-time, and the entire molding program is fully automated. This hydraulic press features a simple structure, with high intelligence and efficiency. Discover how our laboratory hydraulic press can enhance the accuracy and dependability of your polymer testing processes. Contact us today to learn more.
- Capacity
20 tons (others on request) - Temperature range
Room temperature to 300℃ - Temperature accuracy
±2℃ - Controller
PLC programmable color touch screen with a man-machine interface operating system, featuring an intuitive vulcanization curve interface. It provides dynamic display and monitoring of the mold pressure process and can control all aspects of mold pressure circulation. - Pressing platen size
300×300×60mm - Open daylight
150mm - Pressing platens
1 set of pressing platen, integrated electric heating and water cooling on both upper and lower platens - Oil Pressure System
The proportional hydraulic flow valve circulation control system features automatic pressure compensation, pressure maintenance, and delayed oil pump shutdown. It also offers a dual-speed working mode, using high approach speed for low pressure and low approach speed for high pressure. Multiple exhaust times can be set to ensure the template pressure reaches saturation. - Oil Pressure Media
Mobil 30# anti-freezing hydraulic oil (provided by the customer). - Dimensions (W×D×H)
950×500×1470mm - Power supply
AC380V, 20A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 658kg
