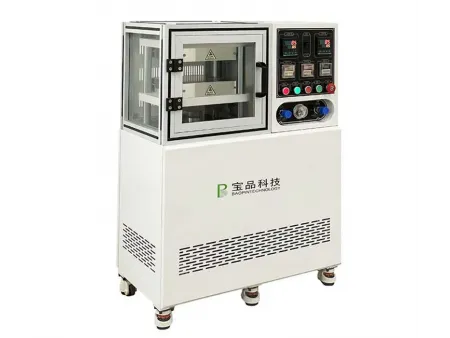

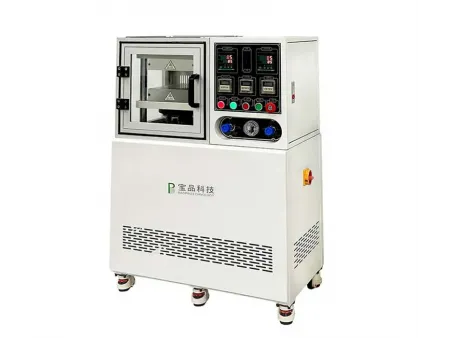

BP-8170-T Benchtop Laboratory Hydraulic Press
Request a Quote
Laboratory heated platen presses for polymer and composite sample preparation and small batch production
- 10/20 Ton Capacity (others on request)
- Instrument control
- Single set of pressing platens
- Electric heating of pressing platens
The benchtop laboratory hydraulic press supports pressures of 10 tons or 20 tons, with a maximum temperature of 300℃. The LED digital temperature controller ensures precise temperature settings, and the electric heating system can reach 200℃ in approximately 25 minutes. It includes a timer with an adjustable alarm, and the pressing platen size is 220×220mm with an opening distance of 100mm. This benchtop laboratory hydraulic is compact, requiring minimal space, and is suitable for various experimental and small-scale production needs.
Get in touch with us today to learn how our benchtop laboratory hydraulic press can streamline your sample preparation and production processes.
Technical Data
- Capacity
10/20 tons (others on request) - Temperature range
Room temperature to 300℃ - Temperature control
LED digital display, push button input, digital readout - Heat-up time
approx. 25min, 0 to 200℃ - Heating method
Electric heating - Timer control
LED digital display, 0.1s-99m-9.9hr (Vulcanizing time can be set with an alarm) - Pressing platen size
220×220×40mm - Open daylight
100mm - Dimensions (W×D×H)
680×400×850mm - Power supply
AC380V, 10A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 280kg
