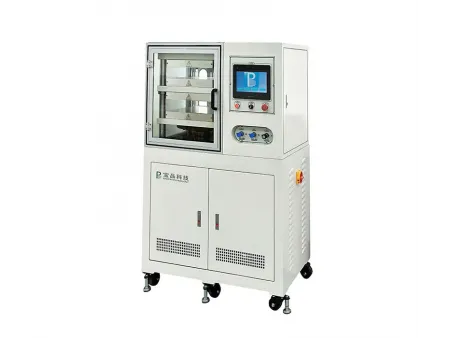

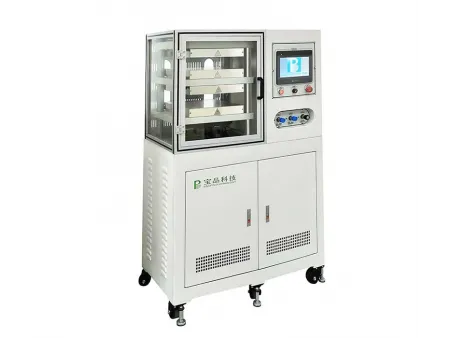

BP-8170-A-PLC Laboratory Hydraulic Press
Request a Quote
Laboratory platen presses for compression molding and vulcanization of plastic, rubber and other polymers for testing purposes
- 20 Ton Capacity (others on request)
- PLC control
- Double set of pressing platens
- Electric heating of upper set of platens, water cooling of lower set of platens
Automatic and manual hydraulic presses are used to place plastic or rubber materials into molds, applying pressure and temperature between the electric heating platens of the press to form the material for testing. This process serves as a basis for large-scale production of materials in plastic factories or rubber product manufacturing enterprises. Contact us to learn how our laboratory hydraulic press can support your polymer testing needs with precision and reliability.
Technical Data
- Capacity
20 tons (others on request) - Operation mode
Manual/automatic - Temperature range
Room temperature to 300℃ - Controller
PLC programmable color touch screen, featuring a human-machine interface. The intuitive vulcanization curve interface allows for dynamic display and monitoring of the molding process, and provides control over all molding cycles. - Temperature accuracy
±2℃ - Heating platen size
300×300mm - Cooling platen size
300×300mm - Open daylight
70mm - Oil Pressure System
The GPY oil pump drives high-performance electro-hydraulic injection into a resistance-free oil cylinder, implementing an equal rate control mode with automatic pressure compensation and a delayed oil pump shutdown function. - Oil Pressure Media
Mobil 32# anti-freezing hydraulic oil (provided by the customer). - Dimensions (W×D×H)
1100×470×1470mm - Power supply
AC380V, 20A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 658kg
