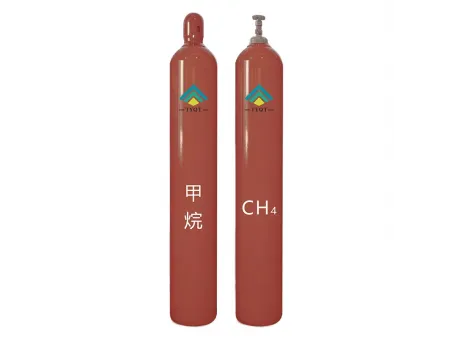

Methane (CH 4 )
Methane (CH4) is a colorless and odorless gas under standard conditions, highly insoluble in water, and non-reactive with strong oxidizing agents like potassium permanganate or with strong acids or bases. Methane is a very important fuel. It can be used as a standard fuel for water heaters and gas stoves, and for calorific value testing. It is also used as a standard gas and calibration gas for combustible gas detectors. Additionally, methane serves as a carbon source for solar cells, chemical vapor deposition of amorphous silicon films, and as a raw material in pharmaceutical and chemical synthesis. Methane is widely used in the production of ammonia, urea, and carbon black. It is used to produce methanol, hydrogen, acetylene, ethylene, formaldehyde, carbon disulfide, nitromethane, hydrogen cyanide, and butane-1,4-diol. Chlorination of methane can yield monochloromethane, dichloromethane, trichloromethane, and tetrachloromethane.
- CAS No.: 74-82-8
- UN No.: 1971
- EINECS No.: 200-812-7
- Molecular Weight: 16.043 g/mol
- Appearance: Colorless, odorless
- Melting Point: -182.5 ℃
- Boiling Point: -161.5 ℃
- Density: 0.717g/L
- Hazard Class (DOT): 2.1
- Label: Flammable gas

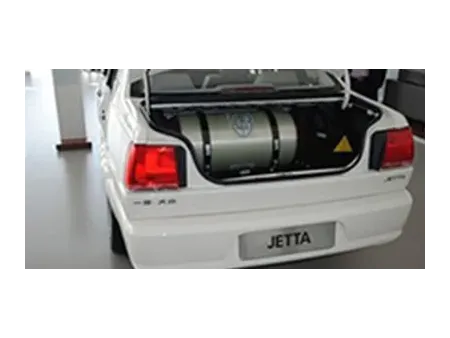

Gaseous Fuel
It is used as fuel and as a raw material for producing hydrogen, carbon monoxide, carbon black, acetylene (C2H2), hydrogen cyanide, and formaldehyde. Methane (CH4) is a standard fuel for calorific value testing in water heaters and gas stoves.
Chemicals
Methane (CH4) is converted into synthesis gas a mixture of carbon monoxide (CO) and hydrogen (H2) through steam reforming.

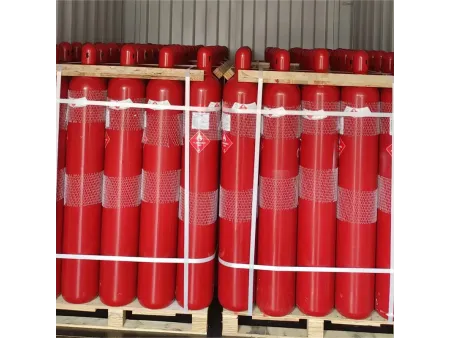

| Gas Cylinder Specifications | Contents | Pressure | ||
| Cylinder Capacity | Cylinder Valve | Volume | Bar | PSIG |
| 40L | CGA350 | 5m³ | 150 | 2175 |
| 47L | CGA350 | 7m³ | 150 | 2175 |
| 50L | CGA350 | 10m³ | 200 | 2900 |
| Purity | 99.9% |
| Hydrogen (H2) | ≤ 50ppm |
| Oxygen (O2) Argon Gas (Ar) | ≤ 50ppm |
| Nitrogen (N2) | ≤ 250ppm |
| Ethane (C2H6) | ≤ 600ppm |
| Moisture | ≤ 50ppm |
| Purity | 99.99% |
| Hydrogen (H2) | ≤ 10ppm |
| Oxygen (O2) Argon Gas (Ar) | ≤ 10ppm |
| Nitrogen (N2) | ≤ 35ppm |
| Ethane (C2H6) | ≤ 25ppm |
| Moisture | ≤ 15ppm |
| Purity | 99.999% |
| Hydrogen (H2) | ＜0.5ppm |
| Oxygen (O2) Argon Gas (Ar) | ＜1ppm |
| Nitrogen (N2) | ＜4ppm |
| Carbon Dioxide (CO2) | ＜0.5ppm |
| Ethane (C2H6) | ＜4ppm |
| Hydrogen Sulfide (H2S) | ＜0.1ppm |
| Moisture | ≤3ppm |
