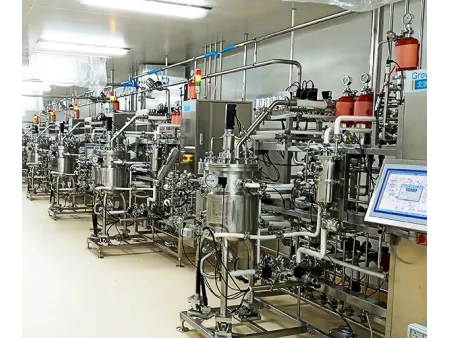

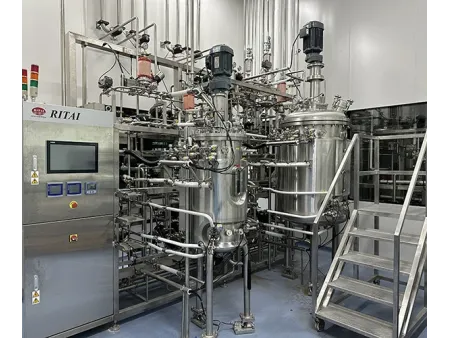

Microcarrier Bioreactor
Stainless Steel Tank & Vessel Manufacturing
Stainless steel reaction vessel for adherent cell culture
The unique design of RITAI microcarrier bioreactor allows the adherent cells to attach better to the microcarriers, resulting in increased productivity and significantly reduced costs. This bioreactor is suitable for the cultivation of adherent cells such as animal and plant cells. It adopts a modular design that can be customized according to your needs, providing functions such as online CIP (Cleaning-in-Place), SIP (Sterilization-in-Place), automatic lifting of tank covers, cold point monitoring in sterilization process, data storage, and remote monitoring.
The low shear force of this microcarrier bioreactor enables high-density and large-scale cell cultivation.
| Culture volume | 1L to 5000L |
| Microcarrier concentration | Up to 20g/L |
| Cell density | 1.5 x 107cells/mL |
| Vessel material | 316L SS |
| Surface finish | Internal polishing 0.2-0.4μm External polishing 0.8μm |
| Standard material | 316L stainless steel (body) 304 stainless steel (jacket) |
| Design pressure | 0.3MPa |
| Working pressure | 0.25MPa |
| Roughness of surface in contact with materials | Ra≤0.4 |
| Interface | Sight glass, side glass，light glass, feeding valve assembly connection, foam sensor pocket, pressure sensor pocket, sample cock, vent bottom valve, alkali adding connection, burst discs |
| Agitation method | Bottom mounted magnetic drive agitator, PID control |
| Agitation speed | 25~250rpm, ±1rpm |
- Reaction cultivation systems for biolaboratories
- Seed cultivation systems for agricultural products
- Bioreaction systems for vaccine manufacturing companies
- Batch, fed-batch, or continuous perfusion cultivation of insect, plant, and mammalian cells.
- Microcarrier cultivation of adherent cell, suspension cultivation of non-adherent cell.
- Cell seed amplification.
- Pilot-scale sample preparation and large-scale production of vaccines.
RITAI microcarrier bioreactor has been successfully used for cell culture of BHK/BSR, VERO, CHO, MDCK, 293, MARK145, PK15, and other cell lines.
