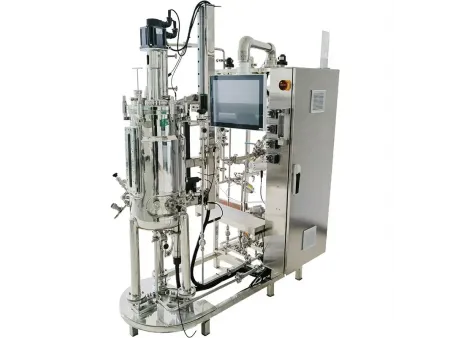

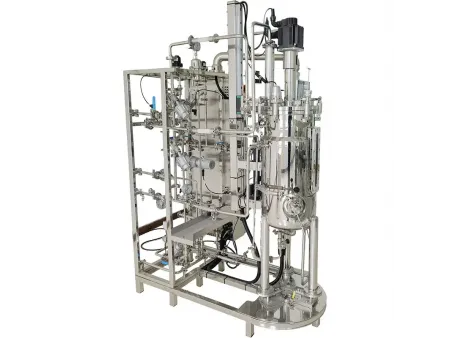

The Stainless Steel Single-Vessel Bioreactor is a high-performance fermentation system integrated with intelligent monitoring and control capabilities. We offer 30L/50L models for laboratory R&D, designed for high-precision strain screening and process optimization. For pilot-scale applications, our 100L-500L models serve as the ideal platform for process scale-up and pre-production trials. The automatic fermenter ensures you obtain stable, reproducible fermentation data throughout every stage of development.

• Capacity: 5L-10L (customizable)
• Vessel Material: SUS316L / SUS304 Stainless Steel
• Surface Finish: Inner surface high-precision polish (Ra≤0.4); Outer surface polish (Ra≤0.6)
• Working Volume: 30% - 75%
• Temperature: Heating/Cooling dual control; Precision: ±0.2℃
• pH: 0-12 (±0.01), Automatic bi-directional regulation (Acid/Alkali)
• DO (Dissolved Oxygen): 0-200% (±0.1)
• Sterilization: Fully Automatic SIP (Steam-In-Place), including sterilization timing, pressure holding, and independent filter sterilization
• Pressure: 0 - 3 bar (±0.01), supports digital setting and automatic regulation

Designed for the biopharmaceutical and vaccine industries where high-precision control is mandatory. This series features full-spectrum automation, from temperature and airflow to vessel pressure, requiring minimal manual intervention.

Maintains automation of core parameters but optimizes costs through manual flow control.

Focuses on automated control of key biological parameters (temperature, pH, dissolved oxygen). Physical parameters such as pressure and flow require manual adjustment, providing a cost-effective entry-level solution for basic fermentation needs.
