Rollex-2020(89/91) Light Gauge Steel Framing Machine
Steel Frame Roll Forming Machine
Rollex-2020(89/91) light steel framing machine is a fully automatic trusses, web joists, studs and track roll forming machine. This versatile machine can produce profiles with a width of 89mm and 91mm. The assembly speed of the steel frame is increased by 30% over the XHH-89-5S model. This steel frame roll forming machine is capable of rolling material thickness from 0.6 to 1.2 mm.
Model | C89/91 |
Dimension | 4100*920*1440mm |
Main Servo Motor Power | 7.5kW |
Hydraulic Motor | 7.5kW |
Forming Steps | 9Steps |
Forming Speed | 4-5tons/8hours |
Voltage | 380V/50Hz/3Phase |
Effective Width | 89mm, 91mm |
Material Width | 174mm |
Flange Height | 38mm |
Lip | 9mm |
Material Thickness | 0.6-1.2mm |
Tolerance for Cutting and Punching | ±0.5mm |
Tolerance for Forming | ±0.75mm |
Control System | IPC computer controlling system |
Design Software | Vertex Software |
Rollers | Made using SKD-11 steel with heat treatment, hard chrome plating on the surface of rollers |
Material for Shaft | SKD-11 |
Material for Puncher | SKD-11 |
Material for Cutter | SKD-11 |
- Main Forming Machine
- 3 Tons Electric Uncoiler
- Servo Motor System
- IPC Computer Controlling System (Lenovo Laptop)
- Production Software (1set)
- Design Software-Vertex, forever using license

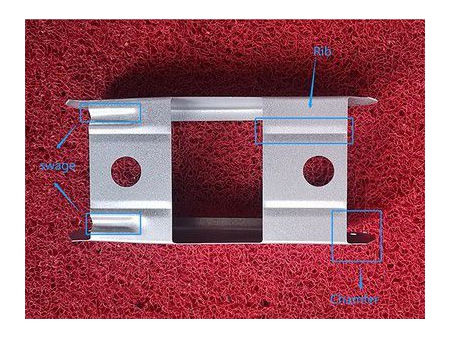

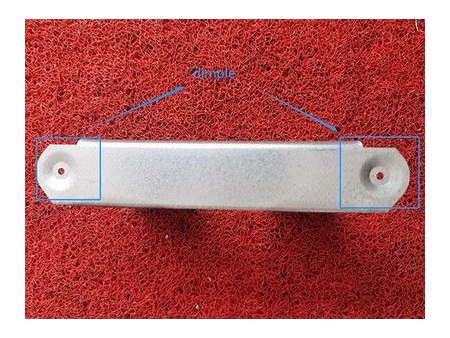

- Hydraulic Automatic Punching Device (Web/Lip Notch, Swage, Service Hole, Chamfer, Dimple, Bolt Hole)
- Hydraulic Post-cutting Device (Material:SKD-11)
- Automatic Printing Device
- Run Out Table (4m)
- Operation Manual
-

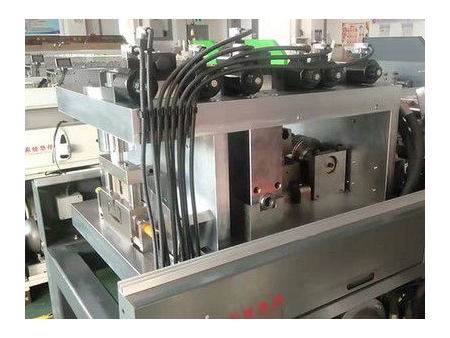

Post Punching Mould
XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension
-

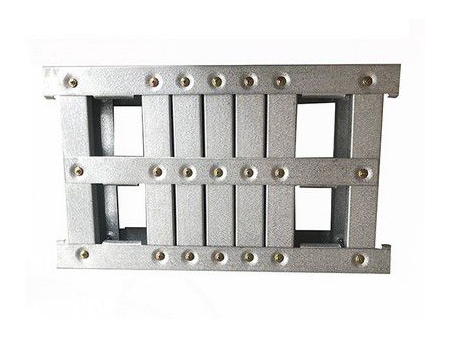

Seamless end cut connection

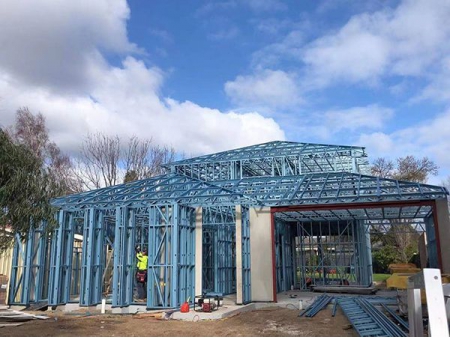

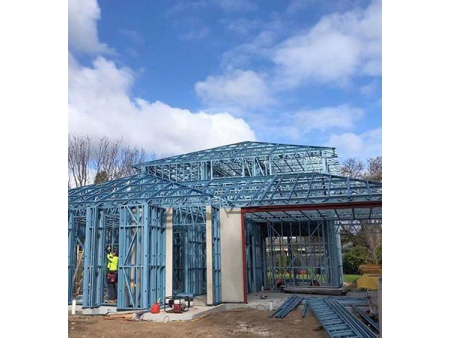

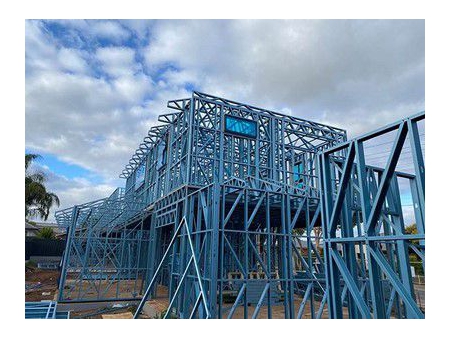

Seamless end-cut connection is a patent design of XHH LGS FORMER. The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical frame, which makes the house safer.
-

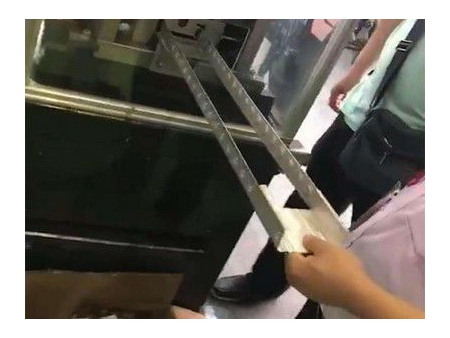

Continuous web notch punching without extruding material
The strength of raw material will be greatly reduced when continuous web & lip notches are made, thus material in the pre-punching machine may be easily extruded and then cause machine jam during roll forming process. XHH LGS Machine with post punching system, which we can do more continuous web notch even in 0.55mm thin thickness without extruding material.
-

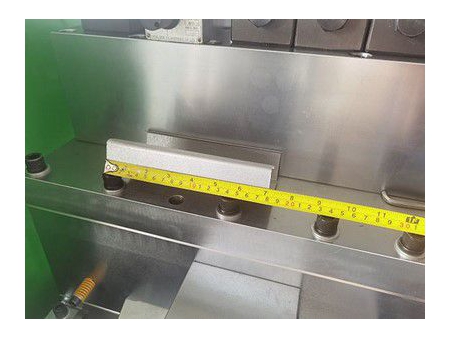

Lower material wasting
Short distance between punching & cutting die able to limit the start-up material waste length at 0.02m, and end material waste length within 1 meter.
-
Save Cost

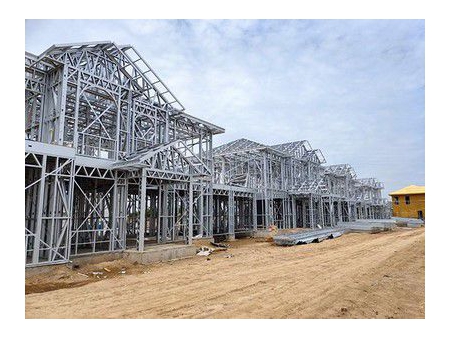

XHH Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sm house, the total frame is around 7000m,can save 439.6-659.4kg material
Material Thickness 0.8mm 1.0mm 1.2mm Material Saved Per House 439.6kg 549.5kg 659.4kg The length of each start-up waste of the XHH post-punching & cutting machine is about 1M; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8m on each start-up
Start-Up/Change Steel Coil 8.11-12.13 Kg 5 Steel Coils/Day 40.55-60.65 Kg Material Saved/Year 12.17-18.2 T
