Steel Frame Roll Forming Machine

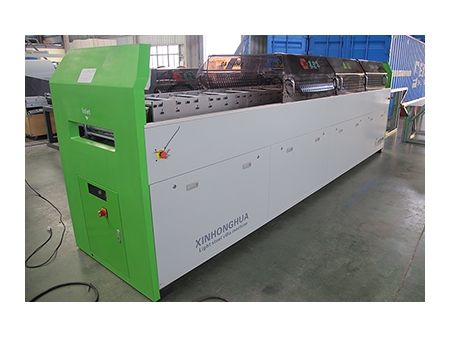

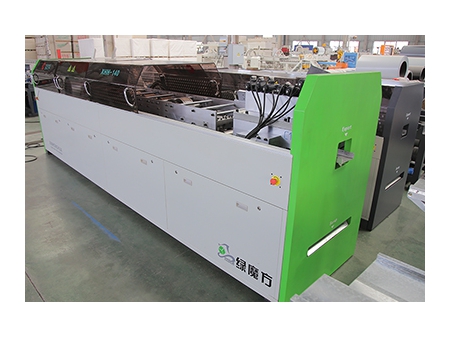

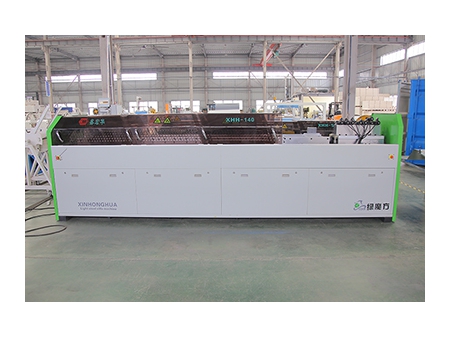

XHH-C140 light gauge steel framing machine is specially designed for the manufacture of frame and truss components and it is used to construct walls and floors for 1-6 level residence. It can roll form profiles from 0.8mm to 1.5 mm thickness and with profile size 140mm. This rolling forming machine is equipped with Vertex Design Software for automatic production. The production speed achieves as high as 4-7 tons/8h.

Metal Framing Component
Specifications
Model C140
Dimension 5100*1600*1100mm
Main Servo Motor Power 11kW
Hydraulic Motor 11kW
Forming Steps 12 Steps
Forming Speed 4-7tons/8hours
Voltage 380V/50HZ/3Phase
Effective Width 140mm
Material Width 235mm
Flange Height 41mm
Lip 10mm
Material Thickness 0.8-1.5mm
Tolerance for Cutting and Punching ±0.5mm
Tolerance for forming ±1mm
Control System IPC computer controlling system
Design Software Vertex Software
Rollers Made using SKD-11 steel with heat treatment, hard chrome plating on the surface of rollers
Material for Shaft SKD-11
Material for Puncher SKD-11
Material for Cutter SKD-11
Features
  • Post punching mould

    XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension

  • Seamless end cut connection

    Seamless end-cut connection is a patent design of XHH LGS FORMER. The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical frame, which makes the house safer.

  • Continuous web notch punching without extruding material

    The strength of raw material will be greatly reduced when continuous web & lip notches are made, thus material in the pre-punching machine may be easily extruded and then cause machine jam during roll forming process. XHH LGS Machine with post punching system, which we can do more continuous web notch even in 0.55mm thin thickness without extruding material.

  • Lower material wasting

    Short distance between punching & cutting die able to limit the start-up material waste length at 0.02m, and end material waste length within 1 meter.

  • Save Cost

    The length of each start-up waste of the XHH post-punching & cutting machine is about 1M; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8m on each start-up

    Start-Up/Change Steel Coil 8.11-12.13 Kg
    5 Steel Coils/Day 40.55-60.65 Kg
    Material Saved/Year 12.17-18.2 T
The steel frame roll-forming equipment mainly consists of:
  • Main forming system
  • 3 Tons electric uncoiler
  • Servo motor system
  • IPC computer controlling system (Lenovo Laptop)
  • Production software (1set)
  • Design Software-Vertex, forever using license
  • Hydraulic automatic punching device (web/lip notch, swage, service hole, chamfer, dimple, bolt hole)
  • Hydraulic post-cutting device (material: SKD-11)
  • Automatic printing device
  • Run out table (4m)
