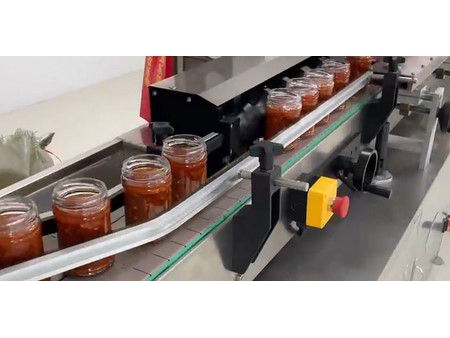

Sauce Filling Line

Request a Quote

View All: http://liquidpackagingline.com/1-2-sauce-filling-line.html

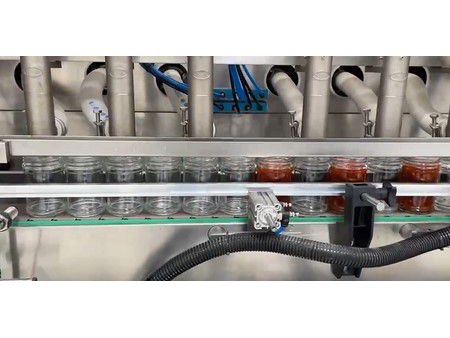

Inline viscous liquid filling equipment and packaging machinery

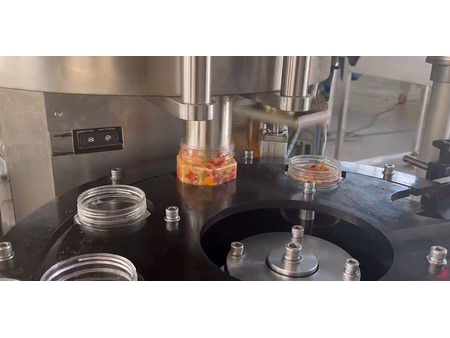

The packaging line is primarily used for the filling and packaging of sauce. It can be equipped with different filling machines to match the specific viscosity and packaging requirements of each product. With customizable designs, it can be perfectly tailored to suit your production requirements and parameter preferences.

We can supply custom sauce filling line that is applicable to a wide range of viscous liquid across pharmaceutical, chemical, food and beverage, and other industries.

Filling speed:

200-2400bph
Filling accuracy:

≦±1﹪
Filling heads:

2/4/6/8 heads (customizable)

Applications

Both common sauces such as chili sauce, ketchup, peanut butter and special ones like beef paste.

Configurations of Filling Line

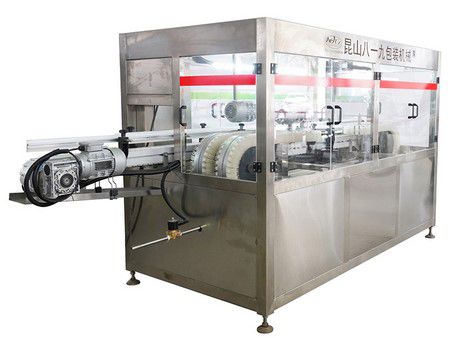

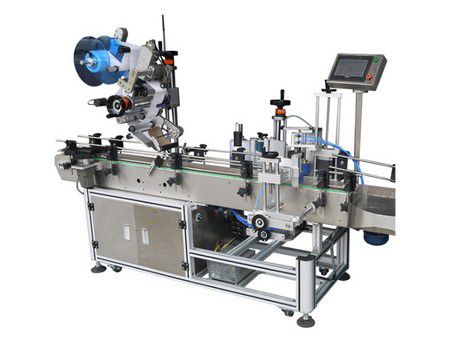

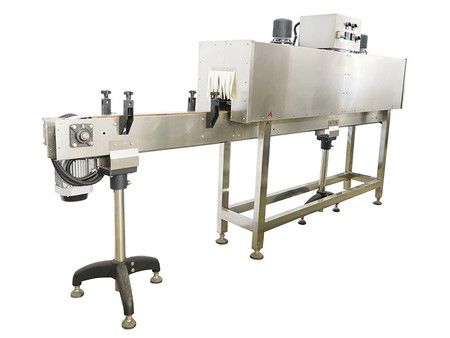

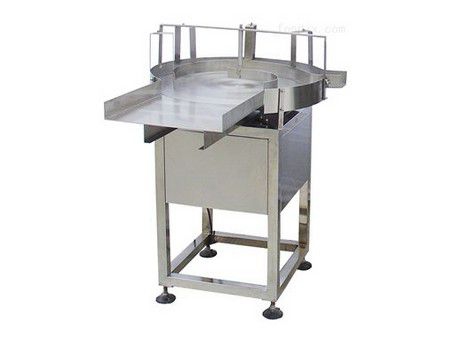

For bottle unscrambling, washing, drying, filling, closing, sleeving, labeling and other tasks.

Features

Only 3 to 5 independent operating steps are required per line, enhancing efficiency by 2-3 times per minute.
Built with durable 304 and 316 stainless steel for extended longevity.

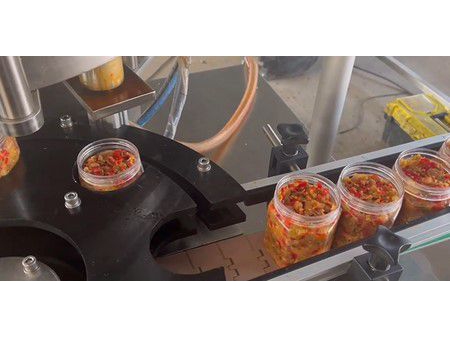

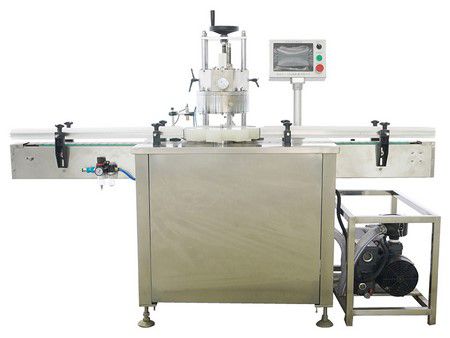

Vacuum screw capping machine included for longer shelf life and better product quality.
24-hour stable operation without overrun alarms.

Specifications

Power supply	220V /200W
Filling speed	200-2400bph
Filling accuracy	≦±1﹪
Air pressure	0.5-0.7Mpa
Air consumption	0.3-0.8m³/min
Bottle height	90-320mm
Bottle diameter	≥ 50mm
Filling heads	2/4/6/8 heads (customizable)
Capacity options	5-100ml 30-280ml 50-500ml 100-1000ml 500-2500ml 1000-5000ml
Dimensions	22000×1000×1850mm
