Soya Sauce Vinegar Filling Line
Request a Quote
Suitable for filling
- Suitable for filling: Soy sauce, vinegar, wine, fish oil, and other food seasonings
- Filling system: Gravity control
- Bottle type: Plastic / glass
- Bottle shape: Round & flat
- Bottle volume: 100ml-5000ml
- Filling accuracy: 1%
- Capacity: 1000BPH-6000BPH (1L)
- High adaptability: No parts need to change when bottle size varies.
- Machines included: Filling - capping - induction sealing – labeling - date printing – case packing - palletizing
Specifications (100ml-5000ml)
| Model | | | | | |
| Dimensions | 2000(L)x710(W)x2200(H) mm | 2200(L)x710(W)x2200(H) mm | 2300(L)x710(W)x2200(H) mm | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity (1L) | 1500B/H | 1800B/H | 2500B/H | 3200B/H | 4500B/H |
| Power | 1kW | 1kW | 1kW | 1.5kW | 1.5kW |
| Suitable bottle | Diameter: Ø 33mm-100mm Height: 80mm-280mm | ||||
| Filling accuracy | ≤100ml: ±1.5ml / 100-500ml : ±2ml | ||||
| Neck diameter | ≥Ø 10mm (can be designed accordingly) | ||||
| Filling range | 100ml-5000ml | ||||
| Air pressure | 0.6Mpa | ||||
| Power supply | 220V; 50Hz/60Hz | ||||

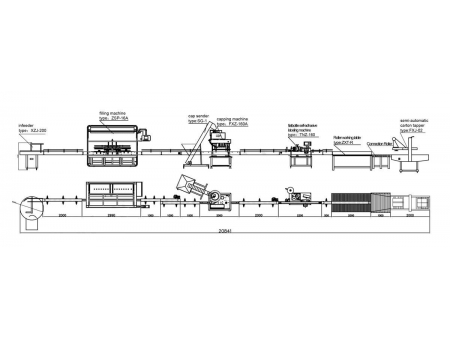

Layout drawing
