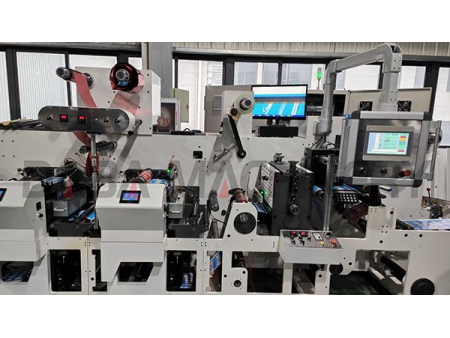

Flexographic printing machine for label & narrow web

Our inline flexo printing press features 8 printing stations, capable of 8-color printing. Water-based ink is used in the printing press for environmental friendliness. With a maximum speed of 150 meters per minute, our inline flexo printing press ensures high-quality and clear-color printing. This label printing machine has a simple structure, equipped with high-quality automated components, making it easy to operate and maintain. The printing press can handle feeding, printing, coating, drying, laminating, rewinding, and die-cutting in one go, making it an ideal choice for printing invoices and high-end adhesive labels.

Applications
  • Label printing for food, oil, liquor, medicine and health products
  • High-end commercial label production
Applicable Materials

Self-adhesive paper, aluminum foil, kraft paper, composite films, as well as OPP, CPP, PET, with a grammage ranging from 20 to 250g/m².

Features
  • The ceramic roller is equipped with a doctor blade, ensuring even printing colors.
  • The whole printing unit is designed in a petal-like structure, with each station driven by a servo motor.
  • Featuring an automatic registration system controlled by servo motors
  • Equipped with a touch-screen controlled PLC system
  • Featuring eco-friendly water-based ink
  • Variable printing speed depending on the screen lines.
Workflow

Unwinding, automatic tension controlling, scrapping, printing, web guiding, central rewinding

Specifications
Model
DBJC-320A
DBJC-320B
Maximum Printing Speed 150m/min 100m/min
Printing Unit 8-color
Maximum Substrate Width 330mm
Maximum Printing Width 320mm
Maximum Unwinding Diameter 600mm
Maximum Rewinding Diameter 600mm
Maximum Repeat Length 180-600mm
Accuracy ±0.10mm
Horizontal Registration Adjustment Automatic
Operating Control Touch-screen-controlled PLC
Quick Ink Changeover Quick replacement of cartridge
Turn bar Movable
Power Supply 380V / 220V, 3-phase
Substrate Thickness 1.7mm / 1.14mm
Details

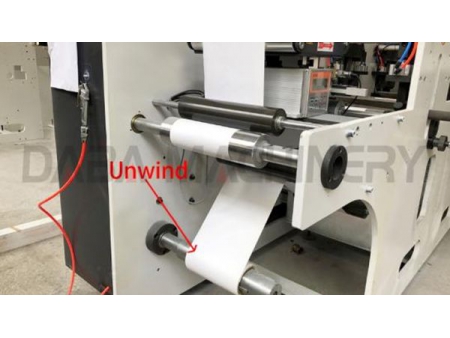

  • Unwinding Unit
    • One servo motor equipped
    • Maximum unwinding diameter: 600mm.
    • 3-inch air-expanding shaft equipped (1-inch, 1.5-inch and 2-inch shafts optional).

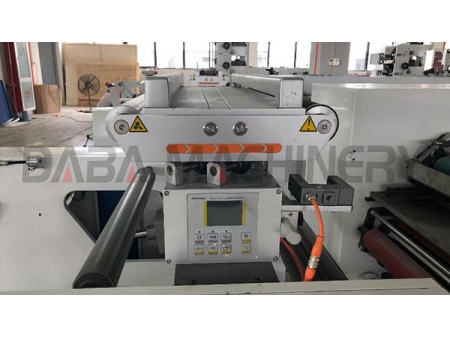

  • Web Guiding System (Brand: EURODOW)
    • One splicing platform, equipped with pneumatic clamp
    • Ultrasonic detector
    • Accuracy: ±0.1mm
  • Tension Control System

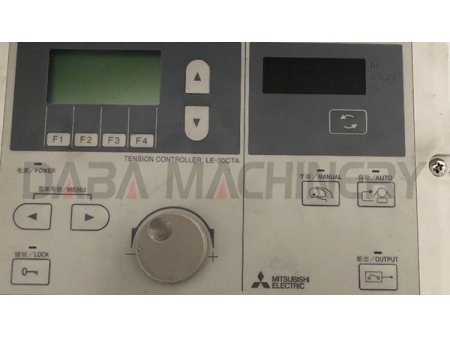

    • Two Mitsubishi tension controllers, one for unwinding, the other for rewinding
    • Magnetic powder brake and clutch
    • Dual rollers for material pressing

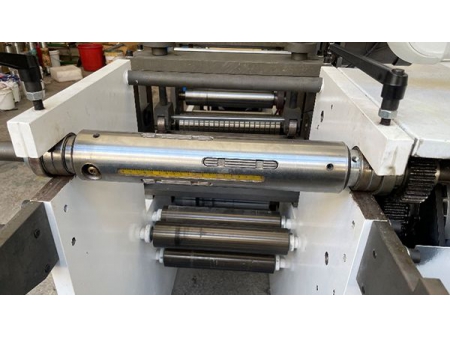

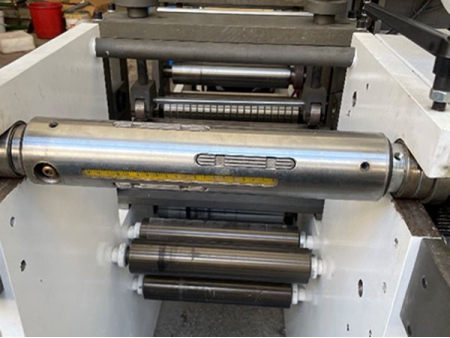

  • Printing Unit (8 Stations)
    • Automatic disengagement of rubber roller when the printing press shuts down or runs at a low speed

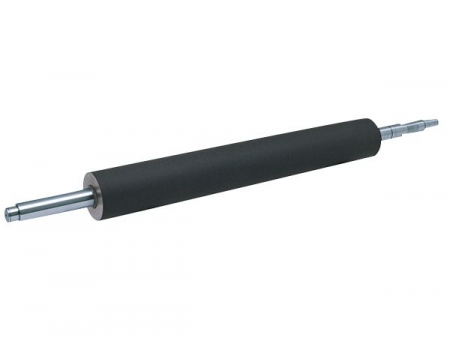

    • One set of ceramic anilox rollers (8 pieces, available for more if needed)
    • Ceramic anilox rollers optional from 150-1,000LPI
    • One set of plate cylinders (8 pieces, available for more if needed)
    • Circumference of plate cylinders: 180-600mm
  • Infrared Drying Unit
    • One infrared dryer with fixed heating light (standard)

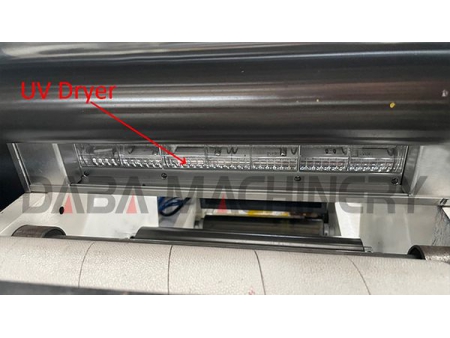

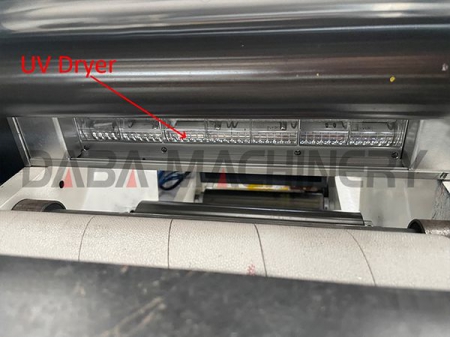

    • UV curing system (optional)
  • Laminating Unit
    • 3-inch air-expanding shaft
    • Motor material feeding
  • Rewinding Unit
    • One servo motor equipped
    • Magnetic powder clutch with tension control system
    • 3-inch air-expanding shaft equipped (1-inch, 1.5-inch and 2-inch shafts optional).

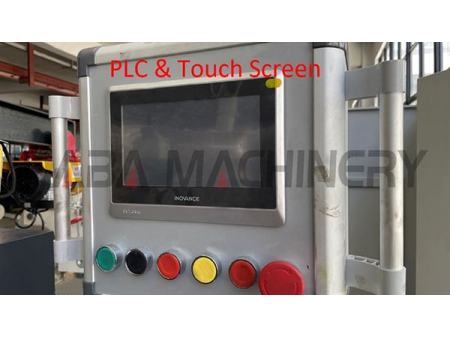

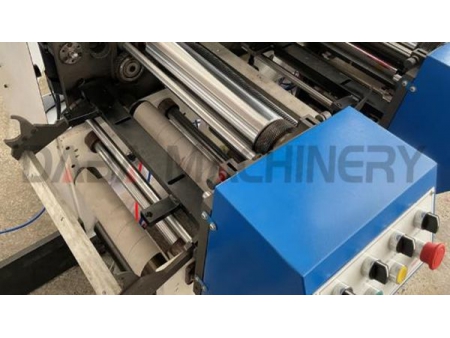

  • Control Panel
    • Button: Power, Stop, Start and Emergency Stop
    • PLC control
    • Touch screen
    • Rotation button of anilox rollers on each printing station
    • Length counter and speed controller
Optional
  • UV Curing System
  • Ceramic Anilox Roller
  • Air-expanding Shaft
    Standard: 3-inch
    Optional: 1-inch, 1.5-inch and 2-inch
  • Inspection System
    Standard: WKS (China)
    Optional:BST (Germany)
