Two Shaft Shredder
Waste disposal equipment, industrial shredding machine

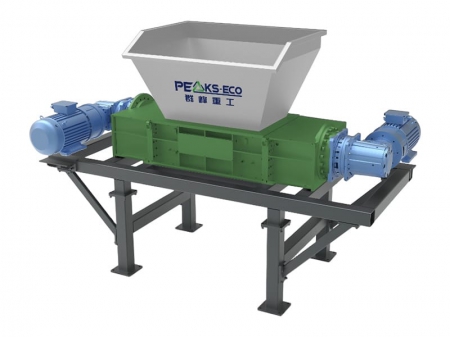

The two-shaft shredder is a low speed and high torque industrial shredder with a minimum power of 1.5kw, thus saving energy. This dual shearing shredder does not have a screen unit. After material is fed into the hopper, material is handled using two counter rotating blades, then directly discharged. Although the output particle size is random, the two shaft shredder features a faster shredding speed and a higher throughput than other shredders.
The industrial shredder can be custom tailored to suit your material and requirements to ensure maximum economic and production benefits. The reducer and rotor utilize Germany standard DIN5480, and a Siemens PLC control offers automatic detection and overload protection. The two shaft shredder features a large transmission torque, reliable connections, low rotation speed, low noise and low maintenance cost.
- Organic waste
- Hollow products: tires, plastic drums, metal drums, e-waste
- Car shell
- Metal materials
- Rotors: “V” arrangement cutter blades create a uniform shredding force. Blade material and structure: CrMoV superior alloy steel. A variety of materials and configurations are also available based on your application demands. The double sided walls are made of a HARDOXTM wear-resistant steel plate, ensuring a high abrasion resistance and excellent durability.
- Drive train: A motor and hydraulic drive are provided to meet different applications. Hydraulic ram: common two shaft shredders don’t come with a hydraulic ram. SOYU can add a hydraulic processing ram according to special material handling requirements, allowing customers to improve their output.
| Model | Main parameters | ||||||||
| Motor | Blade thickness | Blade diameter | Blade number | Main shaft speed | Discharge height | Cutting chamber dimensions | Overall dimensions | Weight | |
| SYU1325 | 1.5KW | 11mm | φ160mm | 22 | 12.5-20rpm | 450mm | 260x300mm | 670x600x1000mm | About 500kg |
| SYU1940 | 7.5KW | 18.5mm | φ245mm | 20 | 15-18rpm | 650mm | 422x510mm | 1750x900x1450mm | About 1400kg |
| SYU1980 | 2x7.5KW | 18.5mm | φ245mm | 42 | 21rpm | 515mm | 810x510mm | 2650x900x1550mm | About 1800kg |
| SYU2680 | 2x18.5KW | 40mm | φ320mm | 22 | 15rpm | 980mm | 800x660mm | 3030x1100x2335mm | About 4200kg |
| SYU26120 | 2x22KW | 40mm | φ320mm | 30 | 15rpm | 980mm | 1200x660mm | 3350x1100x2335mm | About 5000kg |
| SYU3380 | 2x22KW | 50mm | φ430mm | 16 | 11rpm | 1000mm | 830x800mm | 3000x1250x2150mm | About 4700kg |
| SYU33120 | 2x30KW | 50mm | φ430mm | 24 | 11rpm | 1000mm | 1200x830mm | 3650x1380x2570mm | About 6700kg |
| SYU33140 | 2x30KW | 50mm | φ430mm | 28 | 11rpm | 1000mm | 1400x850mm | 3850x1400x2570mm | About 7100kg |
| SYU41140 | 2x37KW | 50mm | φ534mm | 28 | 11rpm | 1400mm | 1400x1050mm | 4330x1900x3200mm | About 11000kg |
| SYU41160 | 2x45KW | 50mm | φ534mm | 32 | 11rpm | 1400mm | 1600x1050mm | 4360x1700x2650mm | About 11000kg |
| SYU51130 | 2x55KW | 50mm | φ630mm | 32 | 8-15rpm | 1600mm | 1300x1200mm | 4200x2100x3000mm | About 13000kg |
| SYU51180 | 2x90KW | 50mm | φ630mm | 36 | 8-15rpm | 1800mm | 1800x1200mm | 5200x2100x3480mm | About 14000kg |
| SYU61180 | 2x75KW | 75mm | φ800mm | 24 | 3-10rpm | 1800mm | 1800x1500mm | 5400x2400x3700mm | About 20000kg |
| SYU61210 | 2x90KW | 100mm | φ800mm | 21 | 3-10rpm | 1800mm | 2100x1500mm | 6200x2400x3700mm | About 23000kg |
| SYU80210 | 2x225KW | 150mm | φ980mm | 14 | 3-10rpm | 2000mm | 2100x1900mm | 7100x2900x4200mm | About 26000kg |
| SYU80250 | 2x225KW | 150mm | φ980mm | 17 | 3-10rpm | 2000mm | 2500x1900mm | 7600x2900x4200mm | About 29000kg |
| SYU80300 | 2x225KW | 150mm | φ980mm | 20 | 3-10rpm | 2000mm | 3000x1900mm | 8300x2900x4200mm | About 32000kg |
