Hot Air Cabinet Tray Dryer Manufacturer

Hot Air Cabinet Tray Dryer

Request a Quote

View All: http://foodmachinerychina.com/1-20-2-cabinet-tray-drying-machine.html

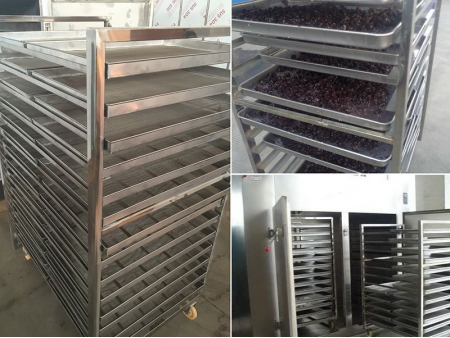

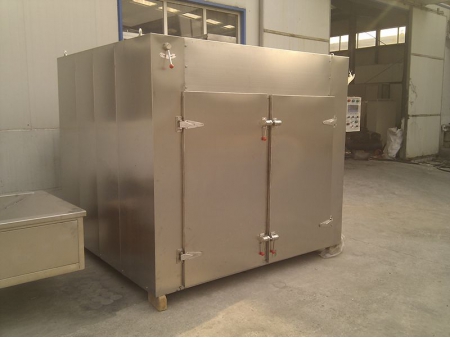

The cabinet tray drying machine/dehydrator is designed for the heating and drying of various materials in fields such as food processing, medicine production, and chemical processing. Heated by steam or electricity, the materials are evenly heated by the continuous circulation of hot air inside the cabinet.

Main Features

Mainly used for dehydration of many kinds of products, such as fruits, vegetables, herbs, fish, jerky and meat.
Flexible size from small to big models.
High hygiene standards.
Labor saving.

Specifications

Model	Output	Size	Power Consumption	Heating Method	Heating Area	Air Amount	Temperature	cart	Tray
LTG-X1	60 Kg/batch	1400×1200×2000mm	0.45Kw	Electric or steam	10m²	3400 m³/h	50-150℃	1	24
LTG-X2	120Kg/batch	2300×1200×2300mm	0.45Kw	Electric or steam	20m²	3450m³/h	50-150℃	2	48
LTG-X4	240Kg/batch	2300×2200×2300mm	0.9Kw	Electric or steam	40m²	6900m³/h	50-150℃	4	96
LTG-X6	360Kg/batch	2300×3200×2300mm	1.35Kw	Electric or steam	80m²	10350m³/h	50-150℃	6	144
LTG-X8	480Kg/batch	4450×2200×2300mm	1.8Kw	Electric or steam	100m²	13800m³/h	50-150℃	8	192
