11000W Lifting Drive Motor, PMDC Brushless Motor TR155BL
Request a Quote
Your Motion
Features
Designed for practical lifting needs, the motor combines compact size with strong output, providing smooth and dependable lifting power suitable for frequent forklift operation.
Applications
Well suited for electric counterbalance forklifts that require efficient lifting performance and reliable operation across different working environments.
Technical Specifications
| Model No. | TR155BL |
| Matched Motor | PMSM Motor |
| Rated Voltage (V) | 72 |
| Rated Power (W) | 11000 |
| Rated Torque (N.m) | 45 |
| Rated Current (A) | ≤175 |
| No-load Current (A) | ≤10 |
| No-load Revolution (RPM) | 3500 |
| Rated Revolution (RPM) | 2350 |
| Rated Efficiency (%) | ≥90 |
| Working Cycle (min.) | S2-5 |
| Insulation Class | H |
| Protection Level | IP55 |

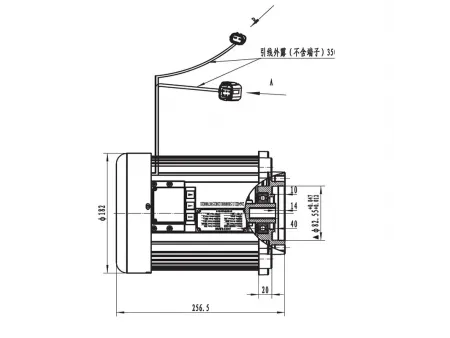

| Motor Length | 256.5 |
