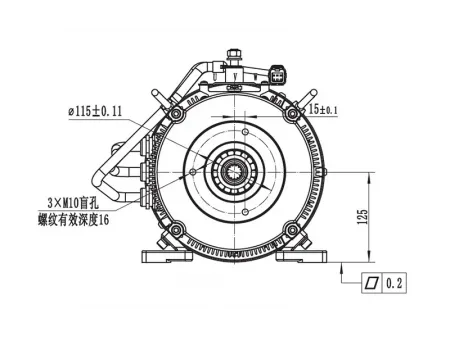

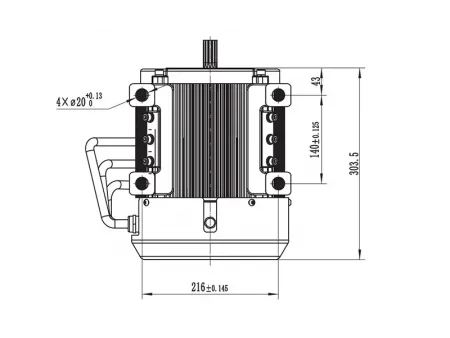

28000W Lifting Drive Motor, PMDC Brushless Motor TR210BXF
Request a Quote
Your Motion
Features
With strong lifting capability and a compact structure, the motor provides steady power output suitable for demanding forklift lifting operations. Its overall design supports smooth, efficient performance in daily industrial use.
Applications
Suitable for electric counterbalance forklifts requiring reliable lifting power and consistent operating performance across various working conditions.
Technical Specifications
| Model No. | TR210BXF |
| Matched Motor | PMSM Motor |
| Rated Voltage (V) | 80 |
| Rated Power (W) | 28000 |
| Peak Power (W) | 33600 |
| Rated Torque (N.m) | 59.4 |
| Peak Torque (N.m) | 85 |
| Rated Revolution (RPM) | 4500 |
| Peak Revolution (RPM) | 5500 |
| Rated Efficiency (%) | ≥93 |
| Working Cycle (min.) | S3-15 |
| Insulation Class | H |
| Gear Ratio | 1.88 |
| Protection Level | IP55 |
