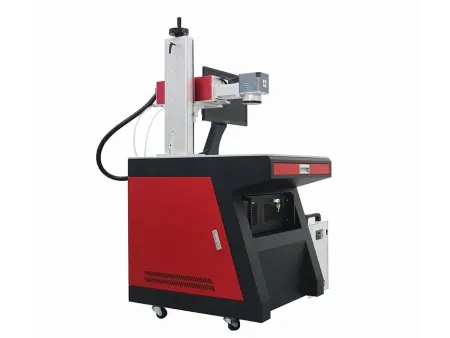

Desktop UV Laser Marking Machine

Request a Quote

View All: http://lasermachine-en.com/1-3-1-desktop-uv-laser-marking-machine.html

Laser wavelength 355nm
Marking range ≤300×300mm
Beam quality M²<1.2~1.5
Max. line speed 7000mm/s

The desktop UV laser marking machine features an integrated equipment-workstation design. Its body height and operating interface angle comply with ISO 6385 ergonomic standards, adapting to a standard workbench. It reduces footprint by over 40% compared to traditional models, eliminating the need for additional production line modification, allowing a single machine to complete the entire workflow. It supports multi-mode mixed marking for text, vector graphics, 1D/2D barcodes, dynamic serial numbers, and more, with a resolution of up to 0.01mm.

Applications

UV laser marking machines leverage cold processing, high precision, and multi-material adaptability as core competencies, excelling particularly in handling heat-sensitive, highly reflective, or materials requiring ultra-fine processing. They can achieve sub-micron level non-thermal damage engraving on surfaces including metal coatings, polymers: (e.g., ABS, PVC, HDPE, and other plastics), glass, ceramics and more.

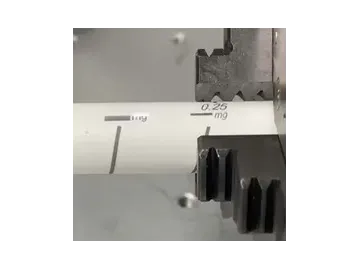

Plastic tube laser marking

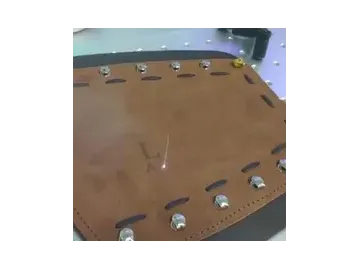

Leather laser engraving
PCB laser marking
Silicone laser marking
Wine glass laser engraving
PP IV bag laser marking
Electronic component laser marking
PET white bottle laser marking

Technical Data
Configuration
FAQ
Why Us

Technical Data

Laser power 3W, 5W, 10W
Laser type UV laser
Laser wavelength 355nm
Marking range ≤300×300mm
Beam quality M²<1.2~1.5
Max. line speed 7000mm/s
Min. character size 0.05mm
Min. line width 0.01mm
Cooling method water cooling
Power supply 220V/50Hz, 110V/60Hz
Operating temperature 10℃~35℃ (Operating outside this range may affect equipment performance and lifespan)
Machine dimensions 650×800×1450mm
Package size 750×1120×1160mm
Machine weight 171kg
Package weight 181kg

Recommended Reasons

3W laser powerWorking area ≤110×110mm for marking plastic products
5W laser powerWorking area ≤110×110mm for marking glass or ceramics
10W laser powerWorking area ≤300×300mm for large-scale engraving

Configuration

Standard Configuration
Optional Configuration
Accessory List

Laser source
We provide renowned domestic and international brand laser sources for our equipment, such as DXT, GL, and Optowave. These sources offer high pump conversion efficiency, low power consumption, and excellent beam quality. Utilizing third-order intracavity frequency doubling technology, the wavelength is shorter than that of fiber (1064nm) and CO₂ (10.64μm) lasers, resulting in higher photon energy. This allows for direct breaking of material molecular chains rather than heating, achieving a "photo-etching" effect with a minimal heat-affected zone (<1μm), thereby preventing material deformation or scorching.

Galvo scanner
Features a high scanning speed of 7000mm/s, high stability, and is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.

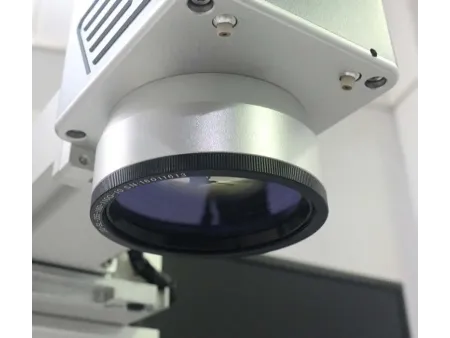

F-theta lens
Equipped with a 355nm wavelength F-theta lens, primarily used for UV laser marking machines. Due to its shorter wavelength, it is suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.

Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

Computer
Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.

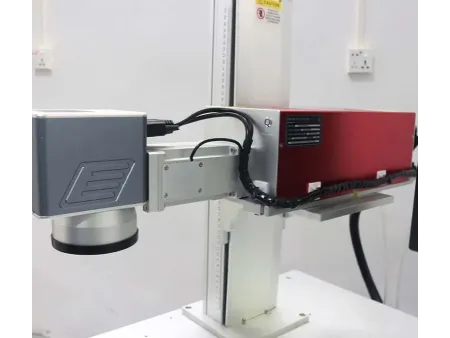

Column
Features electric lifting and lowering, adapting to marking workpieces of various heights without manual adjustment, significantly improving overall work efficiency.

Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.

Fume Extractor
F-theta lens
Cylindrical rotary clamp fixture
Roller rotary axis

UV laser

Laser control cabinet

Work panel

Galvo scanner

F-theta lens

Control card

Laser power supply

Computer

Power cord

Water chiller

Safety goggles

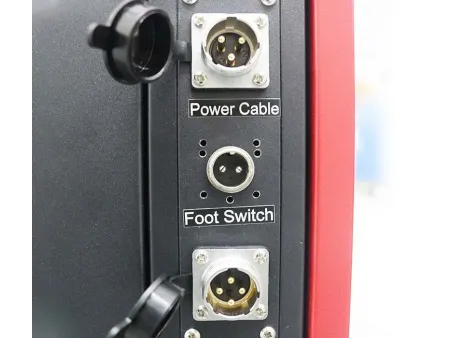

Foot pedal switch

Aluminum test piece

Hex key tool set

Equipment warranty certificate

Shipping accessories list

Product catalog

What is UV Laser marking machine?

A UV laser marking machine is a device that can produce an ultraviolet laser beam to engrave the surface of the materials. UV Laser marker can also be called UV Laser engraver. We all are familiar with the diode. This ultraviolet ray comes from the UV laser diode based on Gallium Nitride – GaN. It emits the near UV laser wavelength. Ultraviolet laser marking has properties of short wavelengths and small spots. A 355nm UV laser engraving machine adopts 355 nm lasers. In this case, It usually has the output power of 3W, 5W, 8W, and 10W. The UV marking area can be 100 x 100 mm or 150 x 150 mm. The machine typically needs 110v/220v of power supply. The repeating pulse rate usually is from 1 kHz to 30 kHz.

What materials can the UV Laser Marking Machine engrave? Is it suitable for fine marking?

It is suitable for non-metallic materials such as plastics, silicone, glass, ceramics, acrylic, rubber, polymer materials, etc.; it is suitable for ultra-fine marking.

Can the UV laser marking equipment mark dark materials, and is the marking effect clear?

Yes, it can mark dark materials, such as black plastic. These materials have a high absorption rate for UV light, so the marking effect is usually clear and has high contrast.
